USED 2022 PATTYN PACKAGING LINE

Pattyn Automated Bag in Box Packaging Line, 2022 – Case Erector, Bag Inserter, Bag Closer, Case Closer, Robotic Palletizer, Conveyors – NEVER USED
Intended purpose was originally to package bulk boxes of plastic pumps.
It Operates At A Speed Of 300 Parts Per Minute And Has A Capacity Of 440 Parts Per Box.
VCEFLEX41-0014 CEFLEX-41 Combination Case Erector and Bag Inserter
VCEFLEX41-2601 Automatic film roll exchange
VCONVEYOR-0003 Driven Roll Conveyor
VDF31-0002 DF-31 Bag Decuffer Folder (American)
VCC31-0001 CC-31 Case Closer – Tape
VCEPAL-0006 CEPAL-12 Robotic Palletizer

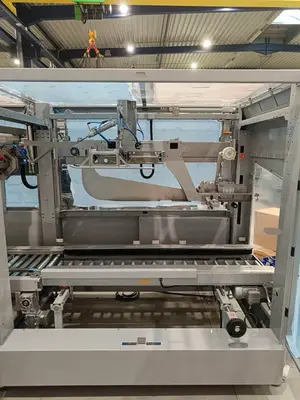

CEFLEX-41 Combination Case Erector and Bag Inserter MTM12
Driven Roll Conveyor

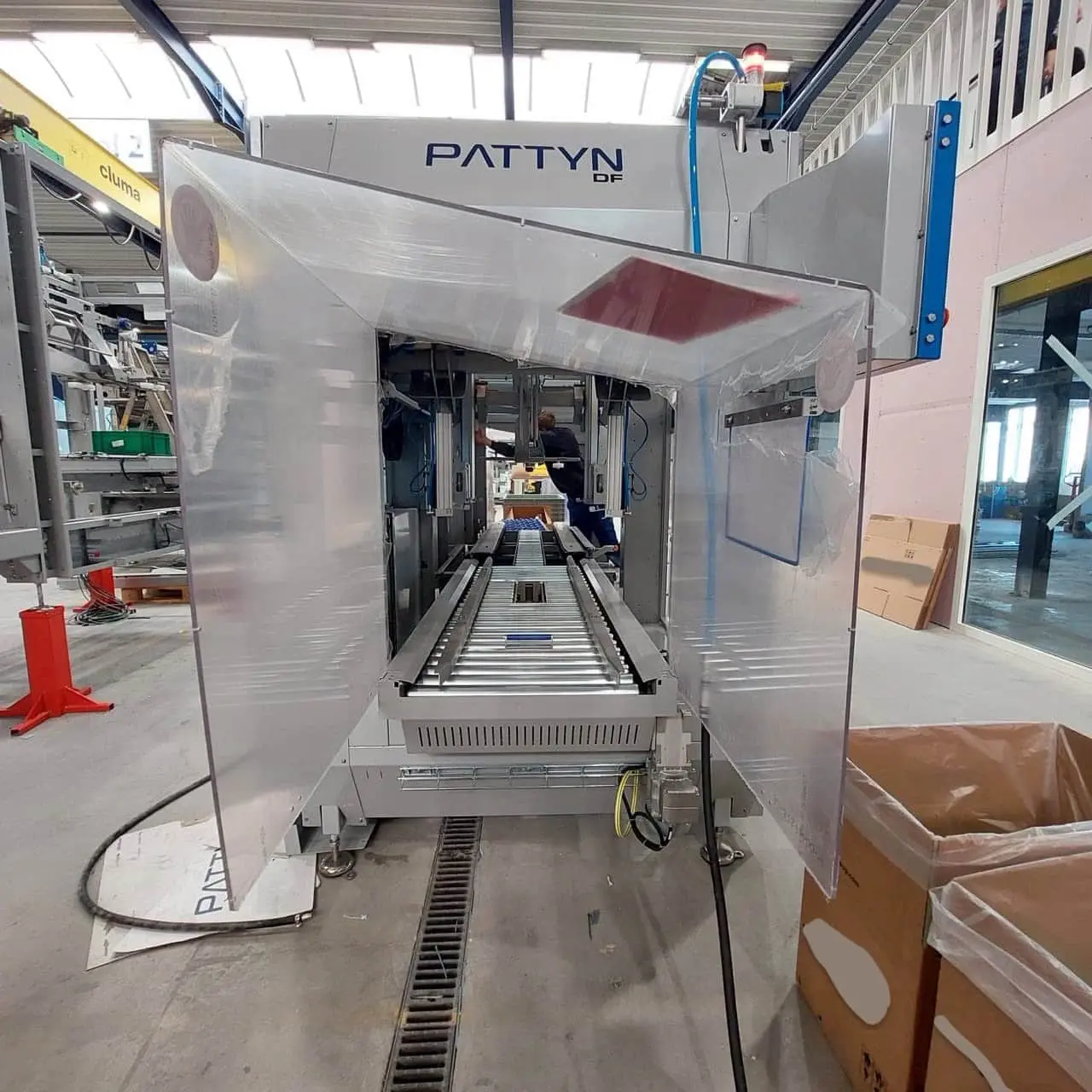

DF-31 Bag Decuffer Folder
CC-31 Case Closer – Tape
CEPAL-12 Robotic Palletizer
Case Conveyors
VBOX-0001 Case conveyors (instead of Box flow)
450mm width conveyor :
2850mm conveyor (3x zones)
90° curve (2x zones)
750mm conveyor (1x zone)
650mm width conveyor :
90° Pop-up box transfer
2000mm gravity conveyor (for manual palletizing)
2250mm conveyor (3x zones)
90° Pop-up box transfer
2250mm conveyor (3x zones)
90° Pop-up box transfer
2000mm gravity conveyor (for manual palletizing)
Robot pick conveyors:
1500mm conveyor (2x zones), 450mm width
90° Pop-up box transfer
825mm conveyor (1x zone), 650mm width
1500mm conveyor (2x zones), 450mm width
90° Pop-up box transfer
825mm conveyor (1x zone), 650mm width
Case conveyor specifications:
Stainless steel frame and general construction
Interroll 24VDC drives with zinc plated rollers
Poly-V drives
Robotic Palletizer
VBOX-0001 Robotic palletizer
2x ABB IRB 660 4-Axis Robot
2x Robot pedestal
2 x Suction style end of arm tool
2x Slipsheet handling + slipsheet tray

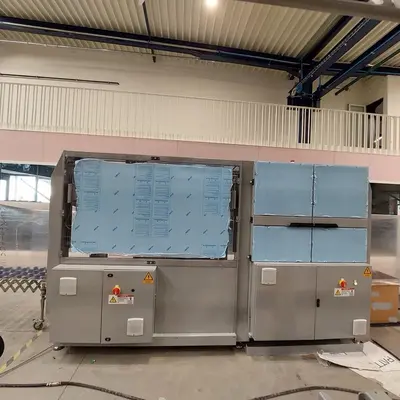

Main electrical cabinet: 1200 x 400 x 1800, includes:
All electrical and pneumatical components for line
Pallet Conveyor
VPALLETIZER-0001 Pallet conveyor
3 strand chain conveyor
7x pallet building locations including pneumatic pallet
centering:
1435mm length x 1050mm width
7x discharge conveyors:
4620mm length x 3
3000mm length x 4
Forklift bumpers x 7
Painted steel construction
Fencing
VCONTROLS-0001 Perimeter safety fencing
Per layout
Painted steel construction (yellow posts with black mesh)
7x Light curtains
2x double doors
Box Flow
VBOX-0001
Robot and Gripper
VROBOT-0001
Pallet Transport
VPALLET-0001
Fences & Safety
VFENCE-0001
Panel & Controls
VPANEL-0001
3 Phase / 480 Volt
