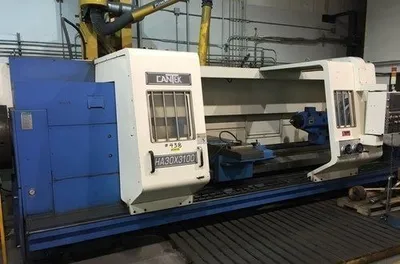

USED 2006 L&L TAKANG HA30X3100
Overview
Specs
TRAVELS:
X-Travel: 120″
Z-Travel: 30″
Max Turning / Cutting Length: 122″
Max Cutting / Turning Diameter: 30″
SPINDLE:
Bar Capacity: 9″
Spindle Bore: 9″ A2-15
Spindle Speed: 500 RPM
Spindle Motor: 30 HP
Spindle Nose: A2-15
Rear Spindle Nose For Rear-Mounted Chuck
Main Motor: 30 HP
Equipped with:

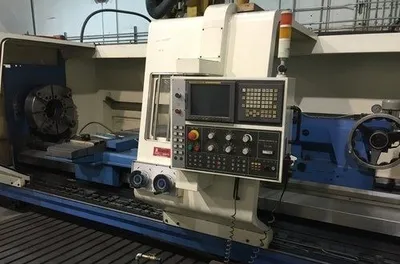

Control: Fanuc 21-iTB

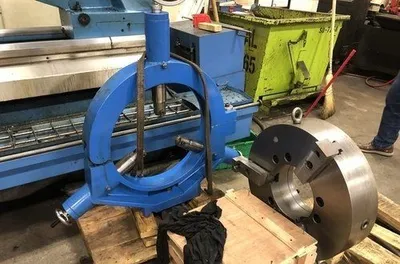

2x Chucks (front/rear interchangable)- 1x 3-jaw chuck, 1x 4-jaw chuck

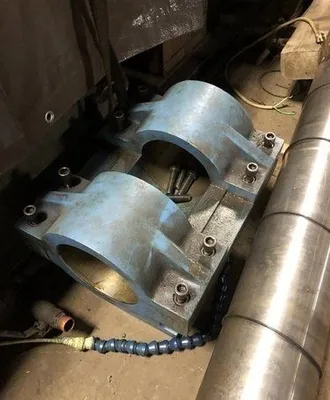

2 steady rests
Parat Quickchange Indexable Toolpost With Toolholders
Rear Chip Conveyor; Front Chip Auger
Spindle Jog

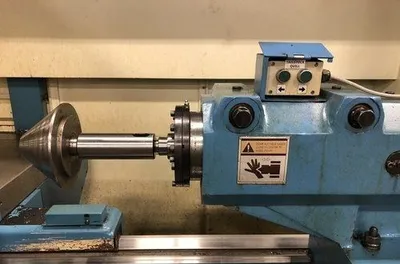

Powered Tailstock Body/Quill Including Live Quill
Removeable Crosslide-Mounted Boring Bar Attachment 6″ Capacity
Weight: 23,000 lbs.
