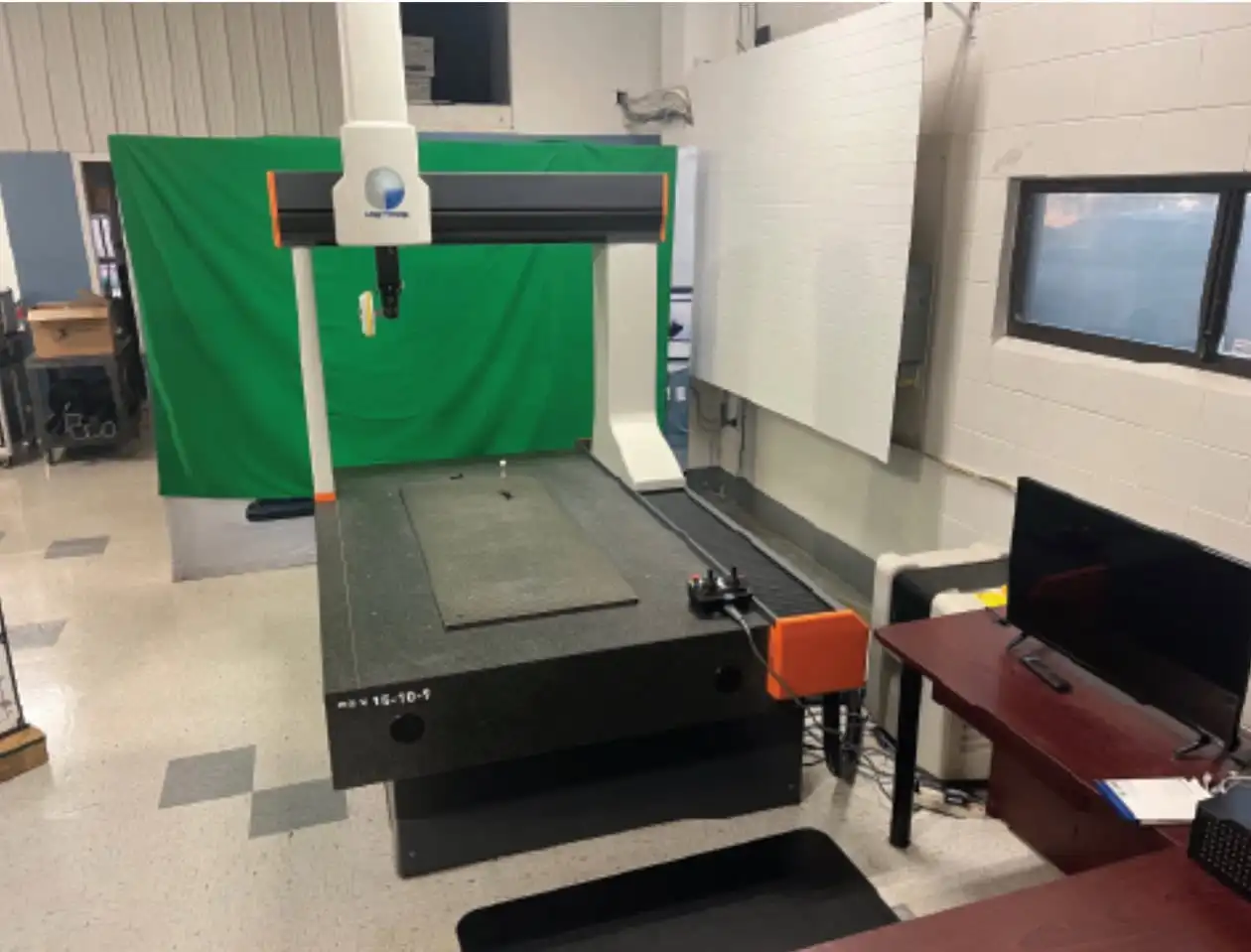

USED 2008 COORD3 METRIS LK HERA 15.10.9

Accuracy from 2.4μm+L/333
Velocity from 52 m/min
Acceleration from 9360 m/min2
Size: 1500 x 1000 x 900 (59″ x 39.4″ x 35.5″)
C3 Coordinate Measuring Machine.
Reliable and Innovative Metrology Solutions.
C3 V BRIDGE CMM
With super-light aluminium as a key structural component, and air bearings on all axes, the
C3 V is a high specification cost effective metrology solution. Due to its size, high capacity
table and comprehensive selection of options, the C3 V is suitable for a wide range of small to
medium size applications.
Key features
Measuring Range 1500 x 1000 x 900 (59″ x 39.4″ x 35.5″)
Renishaw PH10 / TP20 probe system
Optional Software – CMM Manager or PolyWorks
New CNC Controller
0.5μm resolution scales
Fully protected guideways (limited sizes))
Passive anti-vibration mounts
Aluminium Y and Z guidewaysGranite table and X guideway
Air bearings on all axis
NIKON 3D laser scanner not included, but available for an up charge.
Key benefits
High acceleration for low cycle times
Excellent accuracy and repeatability
Flexible multi sensor platform
Small footprint
High capacity (loads) table
Suitable for a shop floor environment
