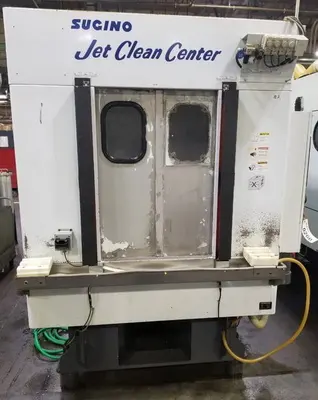

USED 2010 SUGINO JET FLEX

SPECIFICATIONS:
Can also be used to Dry as the Last Function
All Wet Areas are Stainless Steel Construction
Work Envelope: 1650mm X, 500mm in Both Y and Z
EQUIPPED WITH:
Turntable for Loading and Unloading while Second Table of
Fixtured Parts are Being Deburred and/or Cleaned

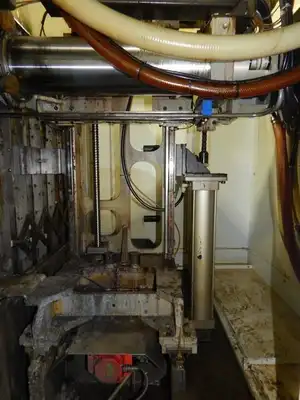

Each Table has a 4th Axis Rotating Fixture

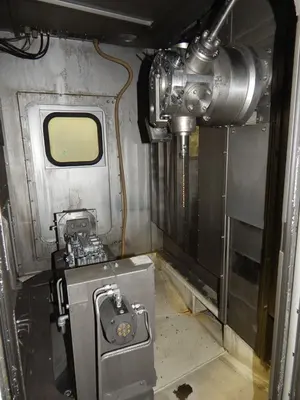

6-Position Tool / Wand Turret:
The Tool Turret can accept Multiple Nozzle Options and Live Deburring Tools

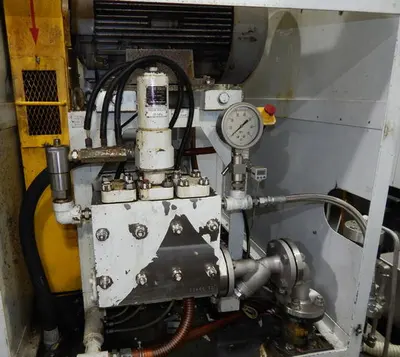

35 HP JPSP-10 Pump:
Fully Programmable Pressure to 36,000 PSI and
Programmable Flow of Up to One Gallon/Min. which

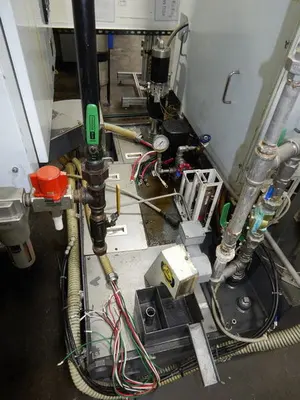

Complete Recycling and Filtering of the Wash Fluid System with Tramp Oil Separator
KURACO Mist Collection System
Dual Palm Button & Light Curtains
OVERALL DIMENSIONS: 72″ x 204″ x 105″ High
WEIGHT: 12,000 Lbs.
