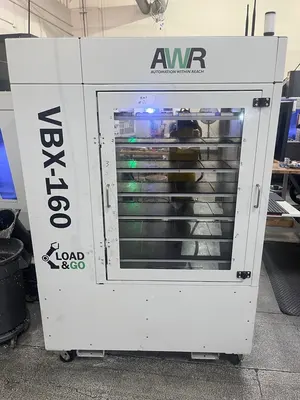

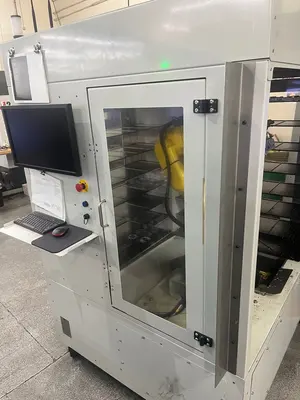

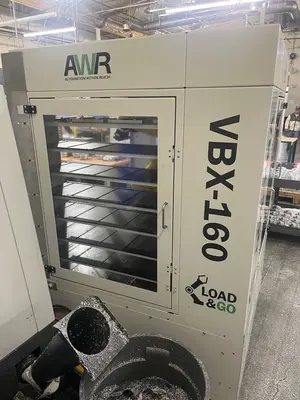

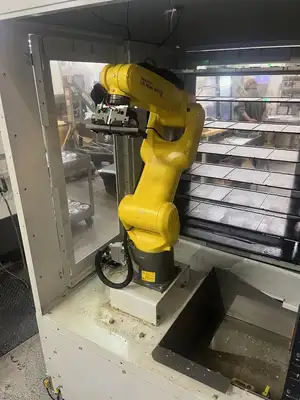

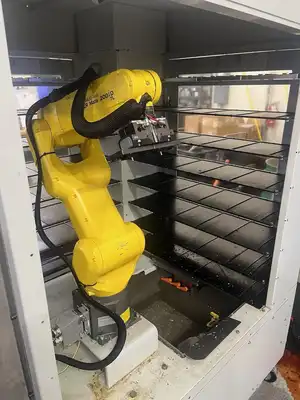

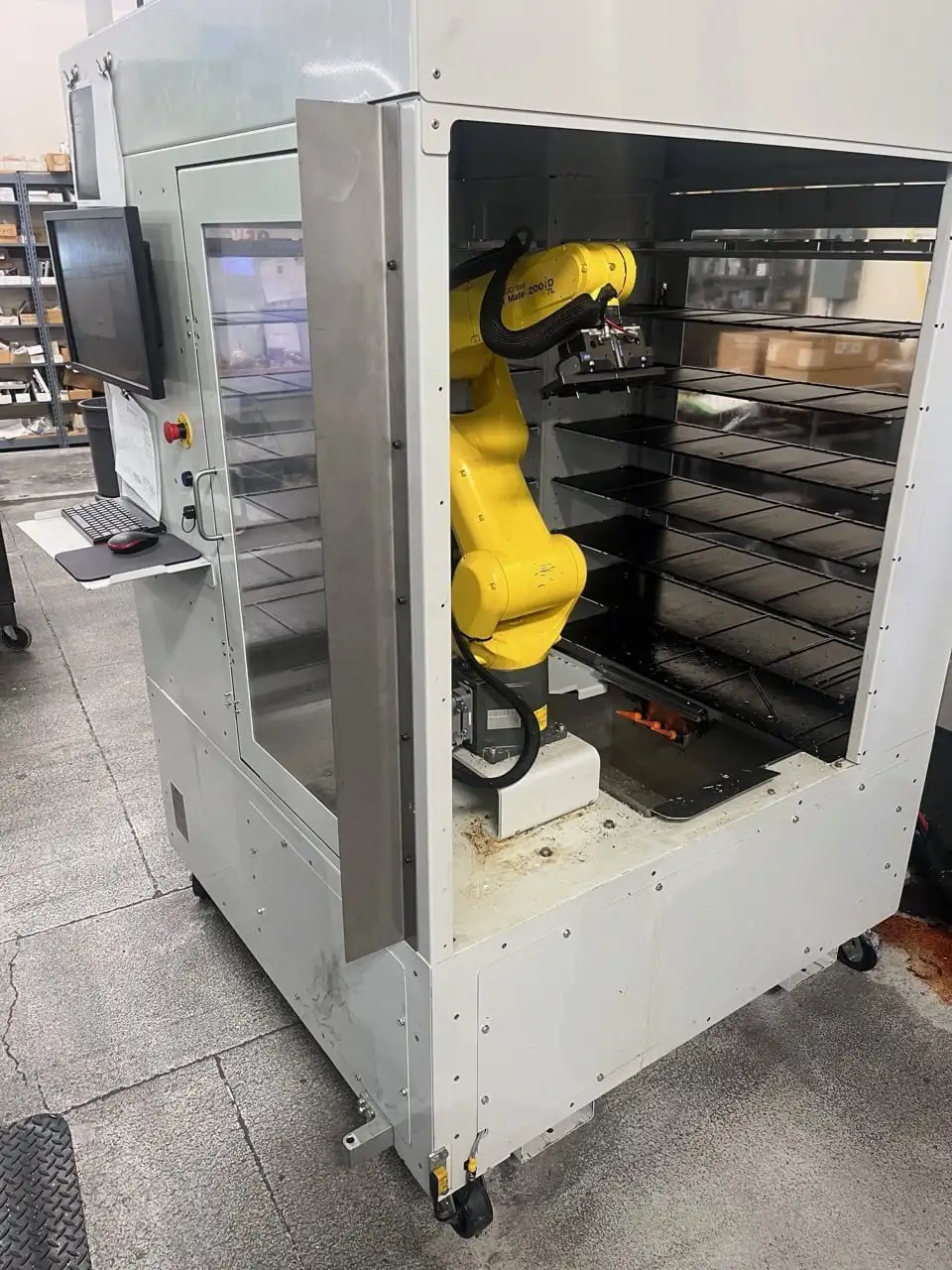

USED 2023 FANUC LR MATE 200ID/7L

MultiGrip Vise Support: Up to 3 vises per CNC
Max Reach (from Inside VBX-160): 44″
VBX Series Footprint: 53″ x 53″ x 78″
Main. Compressed Air: 90-120 PSI
Weight: 1,500 Lbs.
VBX 160 Payload: 6.6 lb. (Top Jaws + Part)
VBX 260 Payload: 21.6 lb. (Top Jaws + Part)
Rinse bucket and Drier for Coolant
Live camera for Monitoring
Corner Pivot to Allow Access to CNC Machine
Part Dimensions: Up to 8.5″ x 8.0″ x 8.8″
Part Capacity < 3.8″ H, 8″ max Depth
104 parts 2.5″ Width
81 parts 4″ Width
67 parts 5.5″ Width
53 parts 6.5″ Width
40 parts 8.5″ Width, 7.5″ for Rounded
Part Capacity < 8.8″ H, 8″ max Depth
47 Parts 2.5″ Width
35 parts 4″ Width
29 parts 5.5″ Width
23 parts 6.5″ Width
18 parts 8.5″ Width, 7.5″ for Rounded
Controls: Fanuc R-30iB Mate Plus
Electrical: 200/230V, 1P, 50/60Hz
