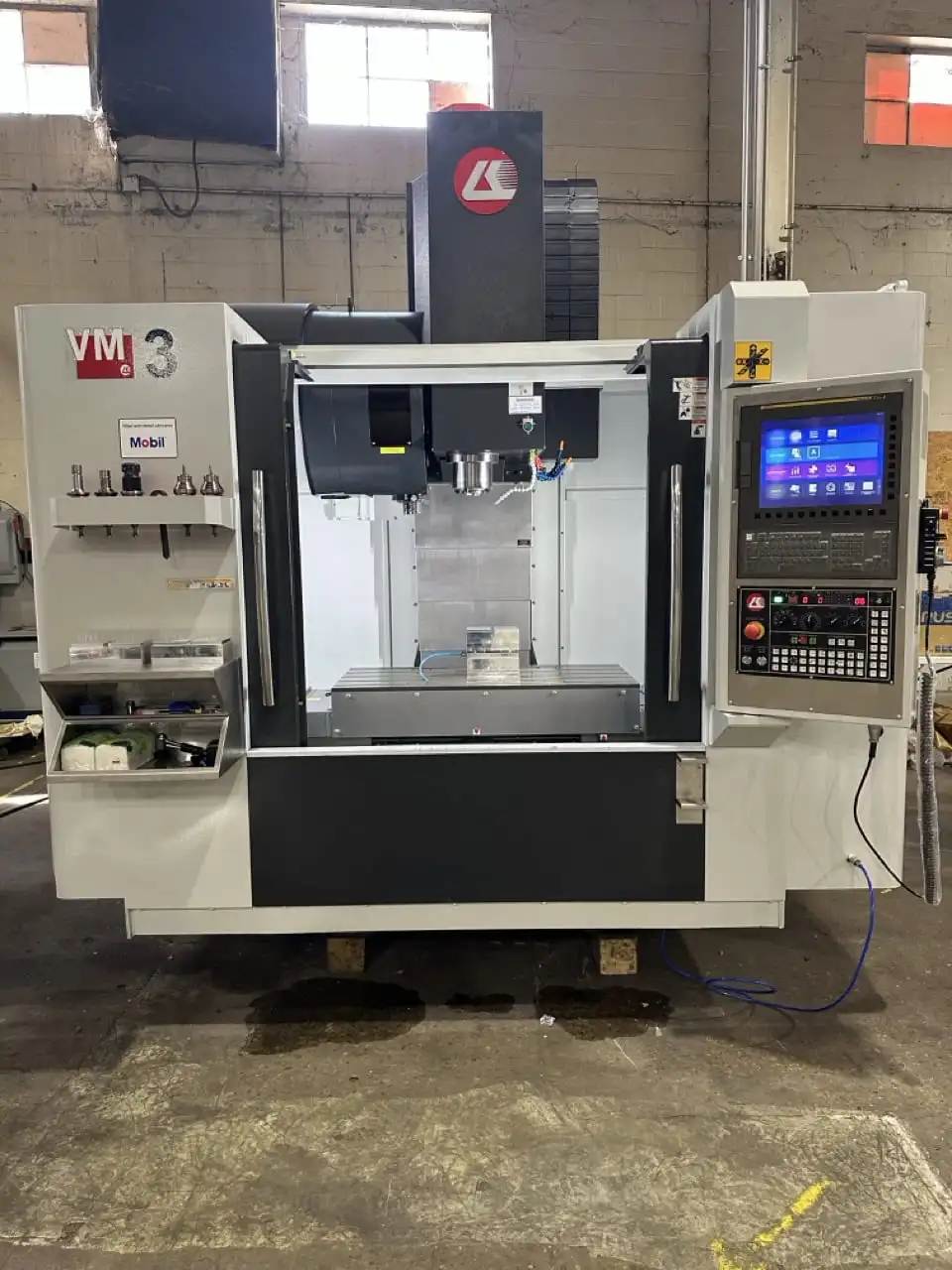

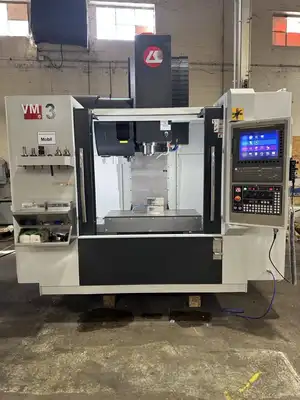

USED 2024 LK MACHINERY VM3

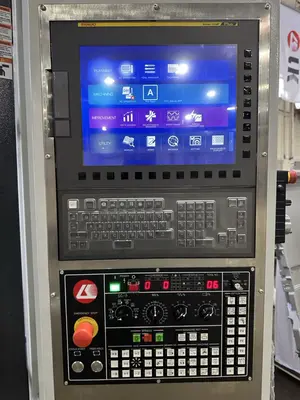

Controller (PLC) – Fanuc 0i-MF PLUS
15″ Touchable LCD Screen
Convection Heat exchanger in control box
RJ-45 Interface (for computer connection)
Automatic power off
Spindle speed: 12000 rpm, #40 DDS Type
Spindle nose : CAT-40

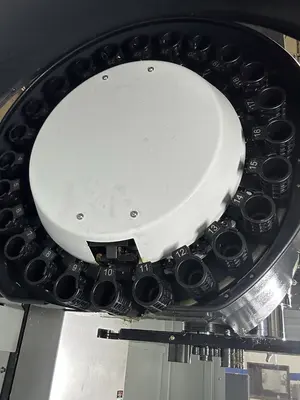

Arm type tool changer: 24 sets

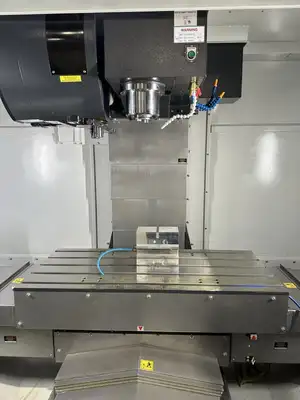

Table size: 1120 x 500 mm
Max. table load: 1000 kgs
Distance from spindle center to table surface: 100 – 710 mm
T-slot (Number*pitch): 5 * 100 mm
T-slot size: 18 mm
Travel (X/Y/Z): 1000 x 500 x 610 mm
Rapid traverse (X/Y/Z): 48/48/48 M/min.
Cutting feedrate: 1-20 m/min
Operation finish lamp
Manual pulse generator (MPG)
Automatic lubrication system
Ball type linear guideway
Rear Side Chip Removal
