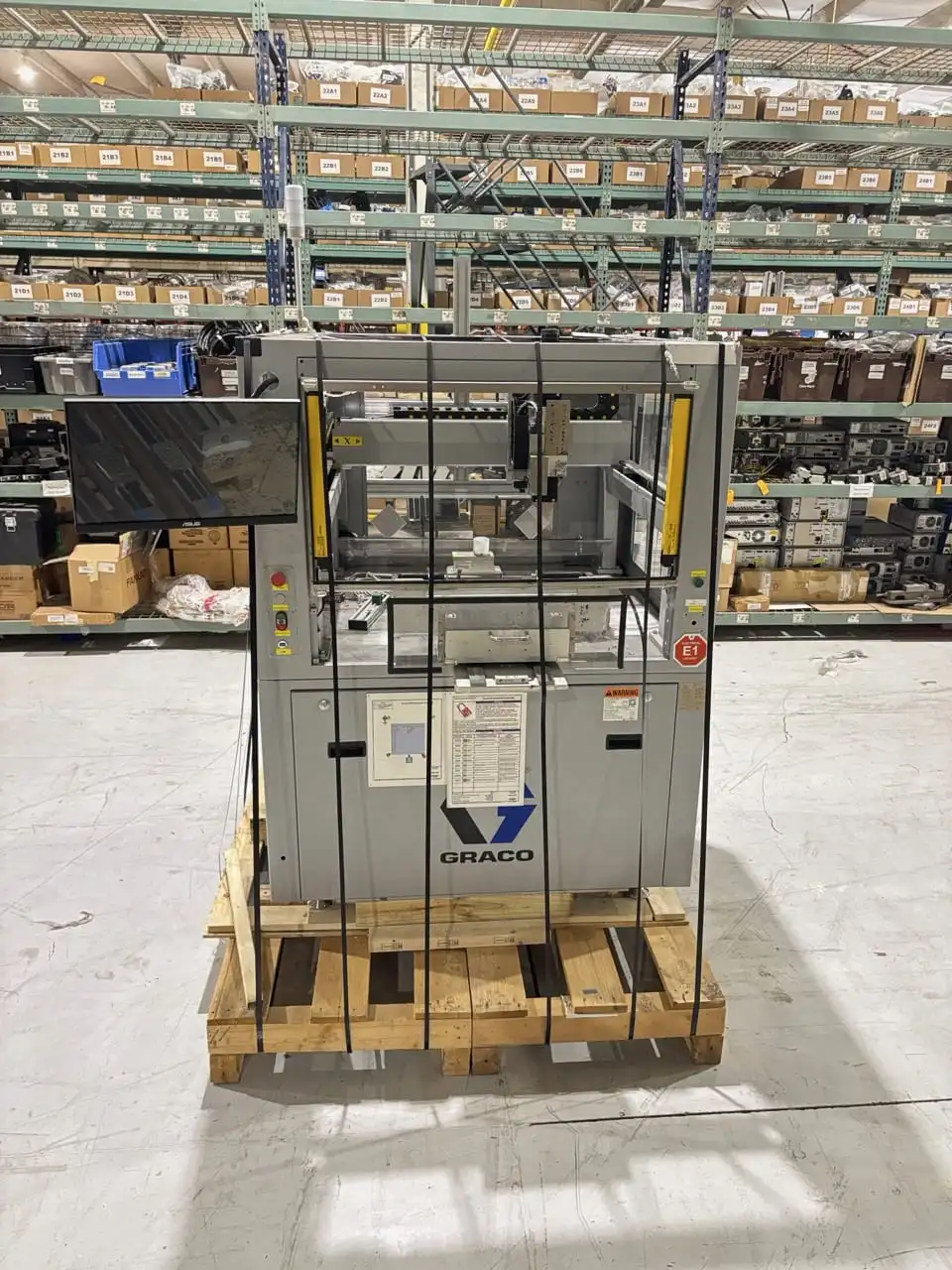

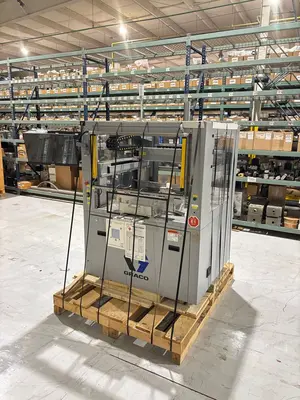

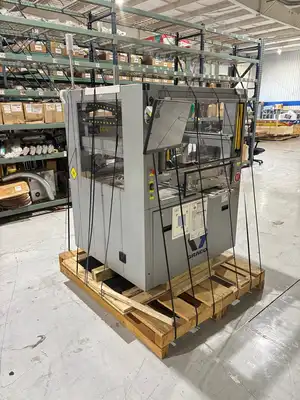

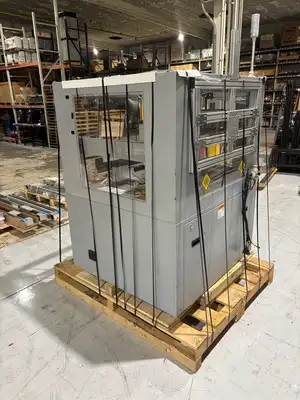

CN101 Series

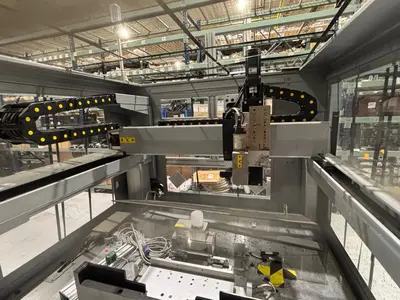

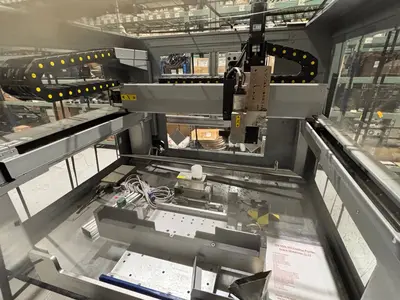

Gantry System: Brushless AC servo motor, precision ball screw
push-pull table
Move rage X × Y (mm): 500 × 500
Max move speed X × Y (mm/s): 500
Move rage Z (mm): 150
Z-axis load (kg): 30
Maximum acceleration (X, Y): 2g
Positioning accuracy (XYZ): ±0.02 mm
Repeated Positioning accuracy (XYZ): ±0.01 mm
Control system: Graco dispensing control system, based on Windows interface
Operation equipment: Color interface touch screen
Power supply: 220-240 VAC, 50/60 Hz
Air pressure: 80 – 100 psi
Dimensions: 2010 × 1190 × 1190 MM
