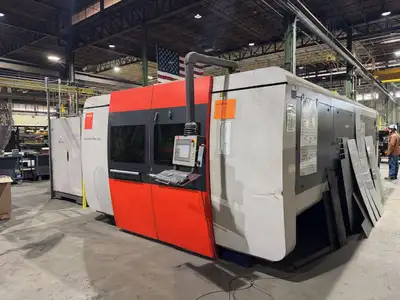

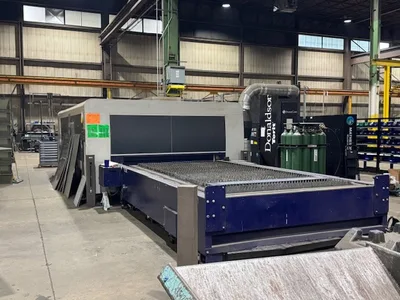

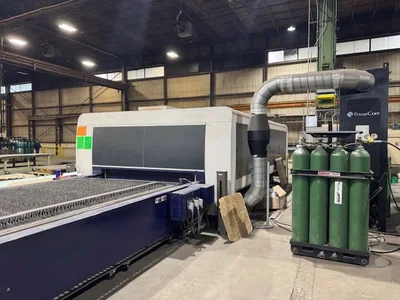

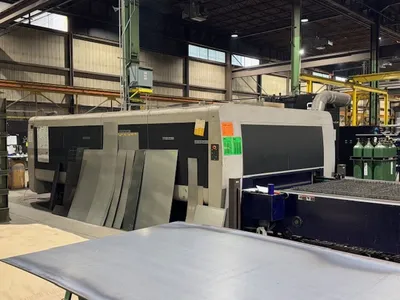

USED 2013 BYSTRONIC BYSPRINT 4020 FIBER LASER

Capacity: 4000 Watt

Wattage: 4000
Cutting Area:
X: 160″
Y: 80″
X: 2.75″
Nominal Sheet Size:
X: 157″
Y: 78″
Maximum Positioning Speed Parallel Axis X,Y: 3937 Inch/Min
Maximum Simultaneous Positioning Speed: 5511 Inch/Min
Positioning Accuracy Pa*: +-0.004″
repeatability Ps*: +-0.002″
Maximum Workspace Weight: 3,484 Lbs
Max Sheet Thickness:
Steel: 0.75″
Stainless Steel: 0.625″
Aluminium: 0.625″
Brass: 0.312″
Copper: 0.312″
Machine Dimensions:
Length: 541″
Width: 262″
Height: 101″
Weight: 33,069 Lbs
