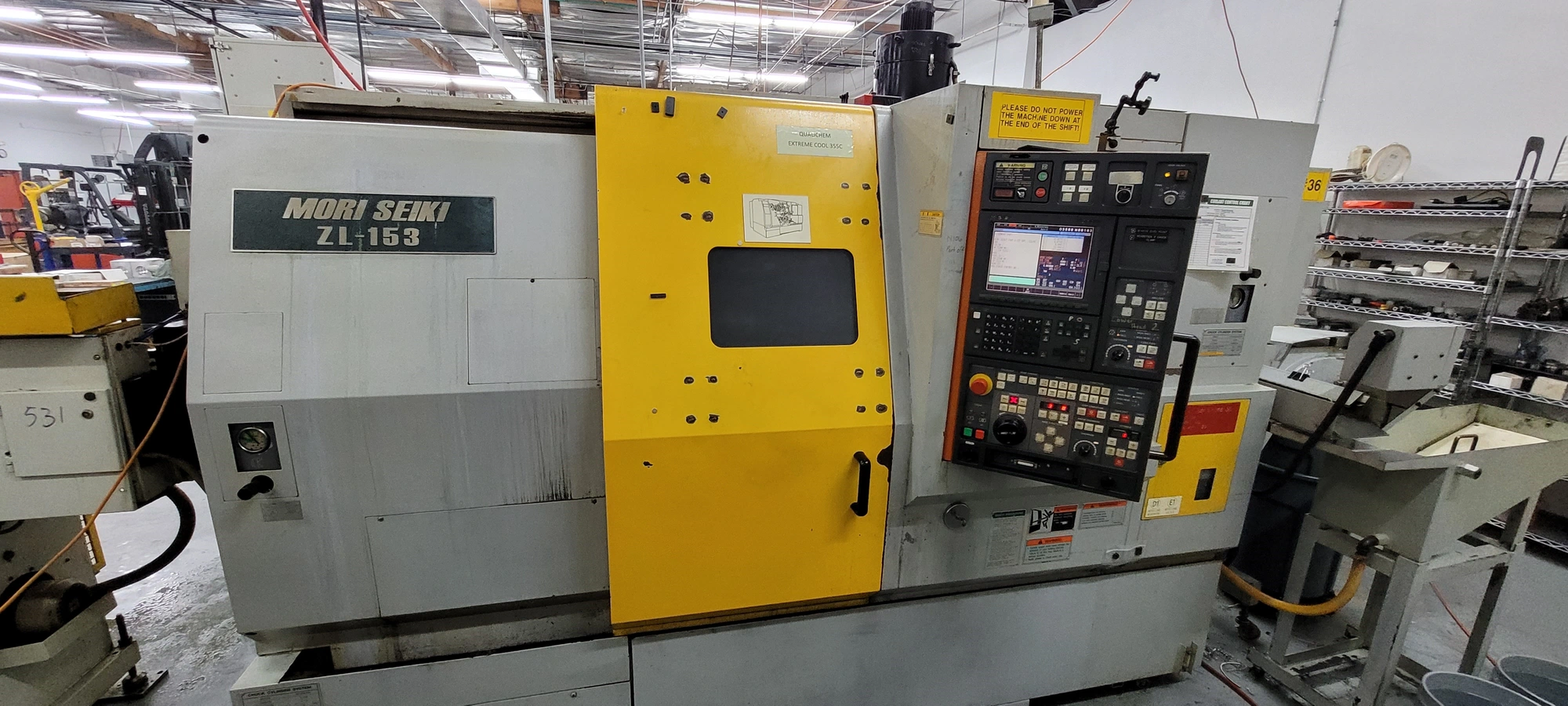

USED 2002 MORI SEIKI ZL-153/SMC

2002 Mori Seiki ZL-153 SMC - Dual Spindle, Dual Turret, Live Tooling with Parts Catcher, ChipBlaster HP Coolant, 12' Barfeed, and Fanuc 18iTA CNC control

Swing over Bed............................26.77"
Swing over Cross Slide....................20.08"
Maximum Distance Between Spindle Noses....29.72"
Maximum Turning Diameter
Turret (1)................................17.32"
Turret (2)................................12.67"
Maximum Turning Length....................18.54"
X-Axis Travel Turret 1....................9.25" (8.66" + .59")
X-Axis Travel Turret 2....................6.89" (6.34" + .55")
Z-Axis Travel Turret 1....................21.64"
Z-Axis Travel Turret 2....................19.29"
B-Axis Travel Spindle.....................21.85"
Number of Turrets.........................2
Type of Turret............................12 Position
Square Shank Height of Tool...............3/4"
Shank Diameter of Boring Bar..............1.25" or 1" for Dual Boring Bar Holders
Rotary Tool Speed.........................3,000 RPM
Rapid Traverse Rate (X1,X2),(Z1,Z2).......708, 944 IPM
Jog Feed Rate.............................0-50 IPM
Machine Height............................82.91"
Floor Space...............................156.22" X 84.65"
Machine Weight............................12,500 LBS

MAIN SPINDLE:
Spindle Motor.............................10 HP
Number of Spindle Speed Ranges............2
Spindle Speed.............................5,000 Rpm
Type of Spindle Nose......................Jis a25
Through Spindle Hole Diameter.............2.20"
Bar Capacity..............................1.77"
Minimum Spindle Indexing Angle............0.001
Inner Bearing Diameter....................3.54"

SUB-SPINDLE:
Spindle Motor.............................7.5 HP
Number of Spindle Speed Ranges............2
Spindle Speed.............................5,000 Rpm
Type of Spindle Nose......................Jis a25
Through Spindle Hole Diameter.............1.69"
Minimum Index Angle.......................0.001
Spindle Bearing Inner Diameter............3.14"

MSG-501 Control (Fanuc 18iTA)
MAPPS (Conversational Programming)
Dual Spindles
Dual Turrets
Live Tooling
Parts Catcher & Conveyor
ChipBlaster High Pressure Coolant
Iemca Model TS 560F Type 43L 12' Barfeed
Side Exit Chip Conveyor
1 Z-Axis Live Tool
1 X-Axis Live Tool
1 New Broach Tool
1 Double OD Block
1 Single OD Block
1 ID Block 1.25 Dia
1 Double ID Block 1" Dia

HOURS:
Power on Time..............79,366
Spindle 1 Cutting Time.....3,610
Spindle 2 Cutting Time.....10,952

**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
