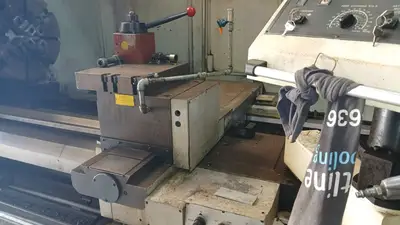

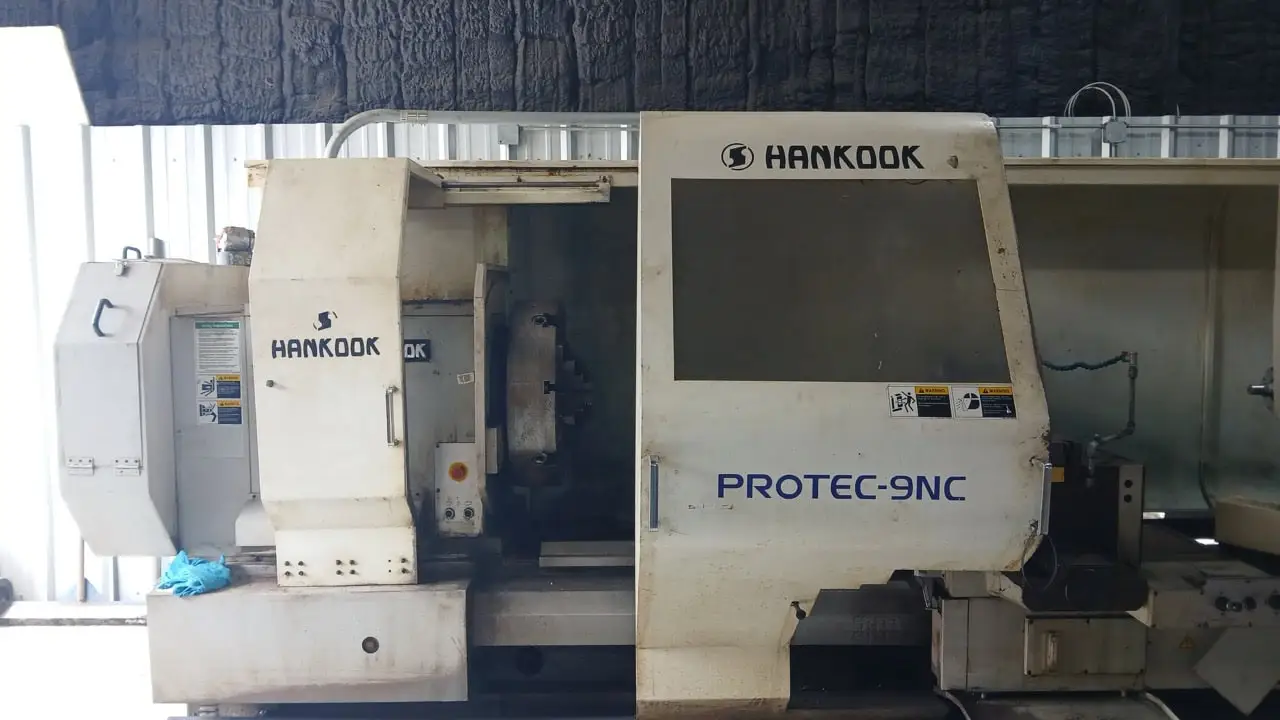

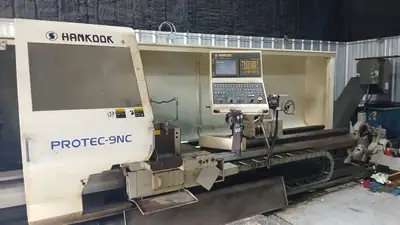

USED 2006 HANKOOK 9NC

Max Swing Over Bed 37.4″
Max Swing Over Cross Slide 24.8″
Distance Between Centers 157.48″
Maximum turning length 151″
Spindle bore 9.875″
Min/Max Rpm 3 – 630 RPM

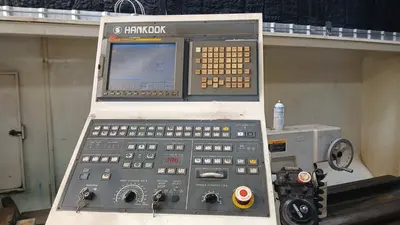

Fanuc 21i-TB Control

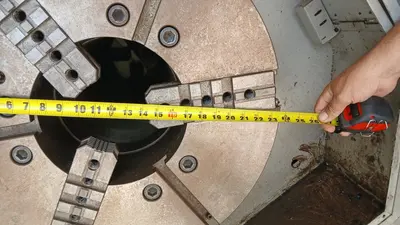

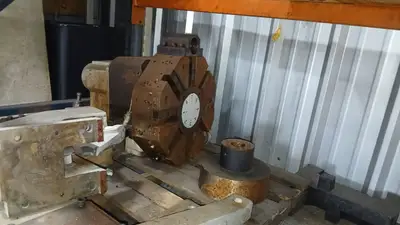

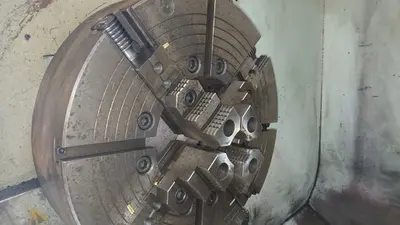

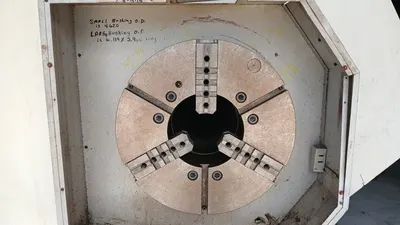

Front/Rear 24″ Manual Chucks
X-axis travel 21.1″
Z-axis travel 151″
Rapid traverse rates x / z 157.6 IPM / 236 IPM

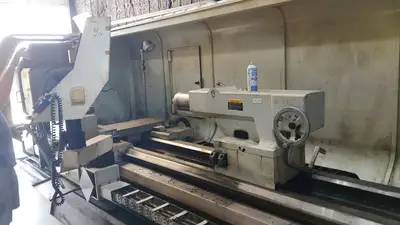

Tailstock quill travel / quill diameter 9.85″ / MT #6
Main Motor 35 hp 2 Speed
Dimensions 255″ x 87″ x 73″
Weight 20,200 lbs
Equipped With:
Fanuc 21i-TB Control

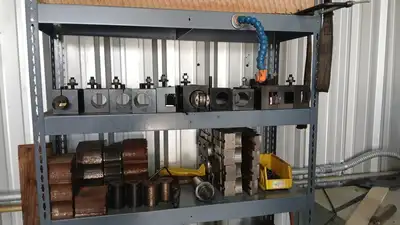

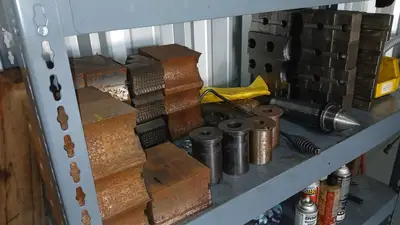

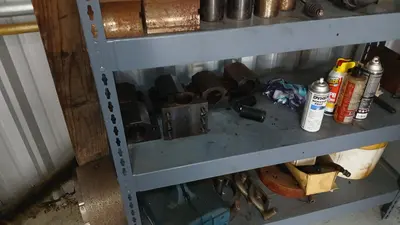

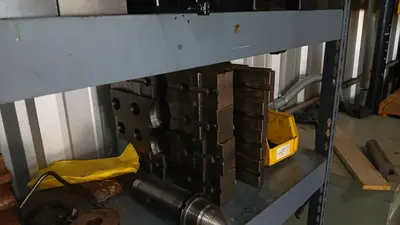

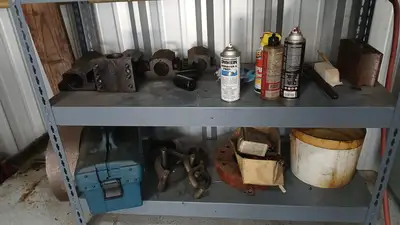

Tooling Available

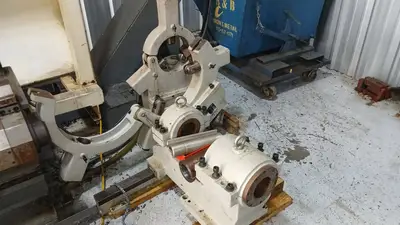

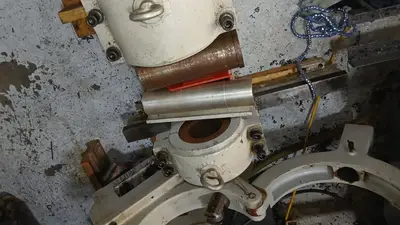

02 Steady Rest
01 Follow Rest

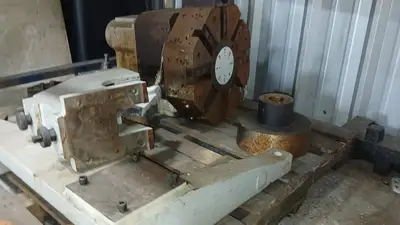

8 Position Turret

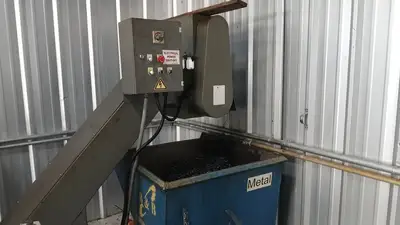

Chip Conveyor
