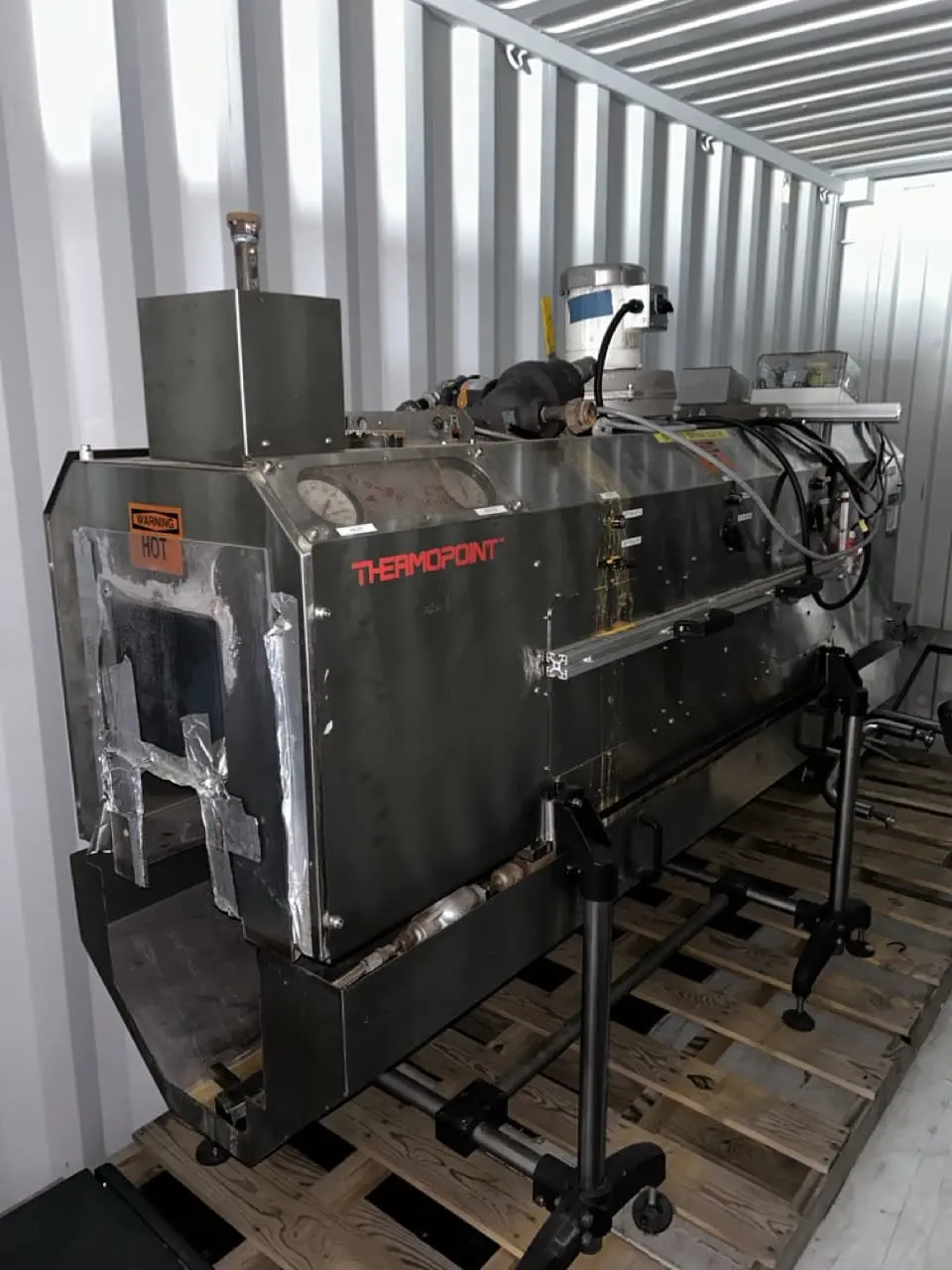

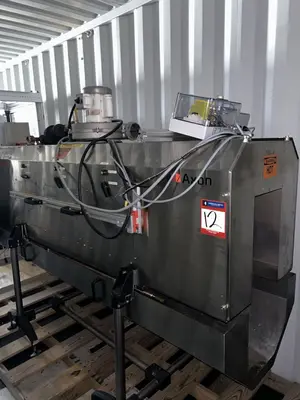

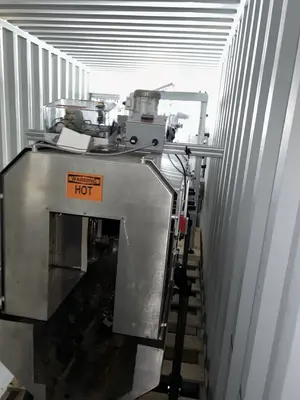

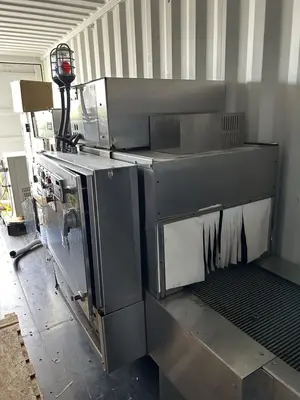

USED 1900 AXON THERMOPOINT STEAM TUNNEL

Equipment Overview
Axon ThermoPoint stainless-steel steam shrink sleeve tunnel built with 3 independent zones, tool-less changeover, condensate control, and rated for up to 6″ W × 15″ H containers. Conveyor included; steam generator unknown. Supports full-body, partial-body, tamper band, and multipack applications with high consistency and repeatability.
Key Features and Specifications
– Stainless steel double-wall construction for external safety and durability
– Three independently adjustable steam zones (height, rate, angle)
– Tool-less changeover (Allen wrench) for container size flexibility
– Condensate tray and steam evacuation flues to manage moisture and cleanliness
– Suitable for containers ≤ 6″ wide × 15″ high
– Steam input ≥ 80 psi; up to 200 lb/hr consumption (≈30 gal/hr)
– Electrical: 115/230 VAC single-phase 50/60 Hz; blower motor ~½ HP
– Approx weight ~1,200 lb; dimensions ~24″ W × 79″ L × 77″ H
– Optional: requires external steam generator or inline builder
