Equipment Overview

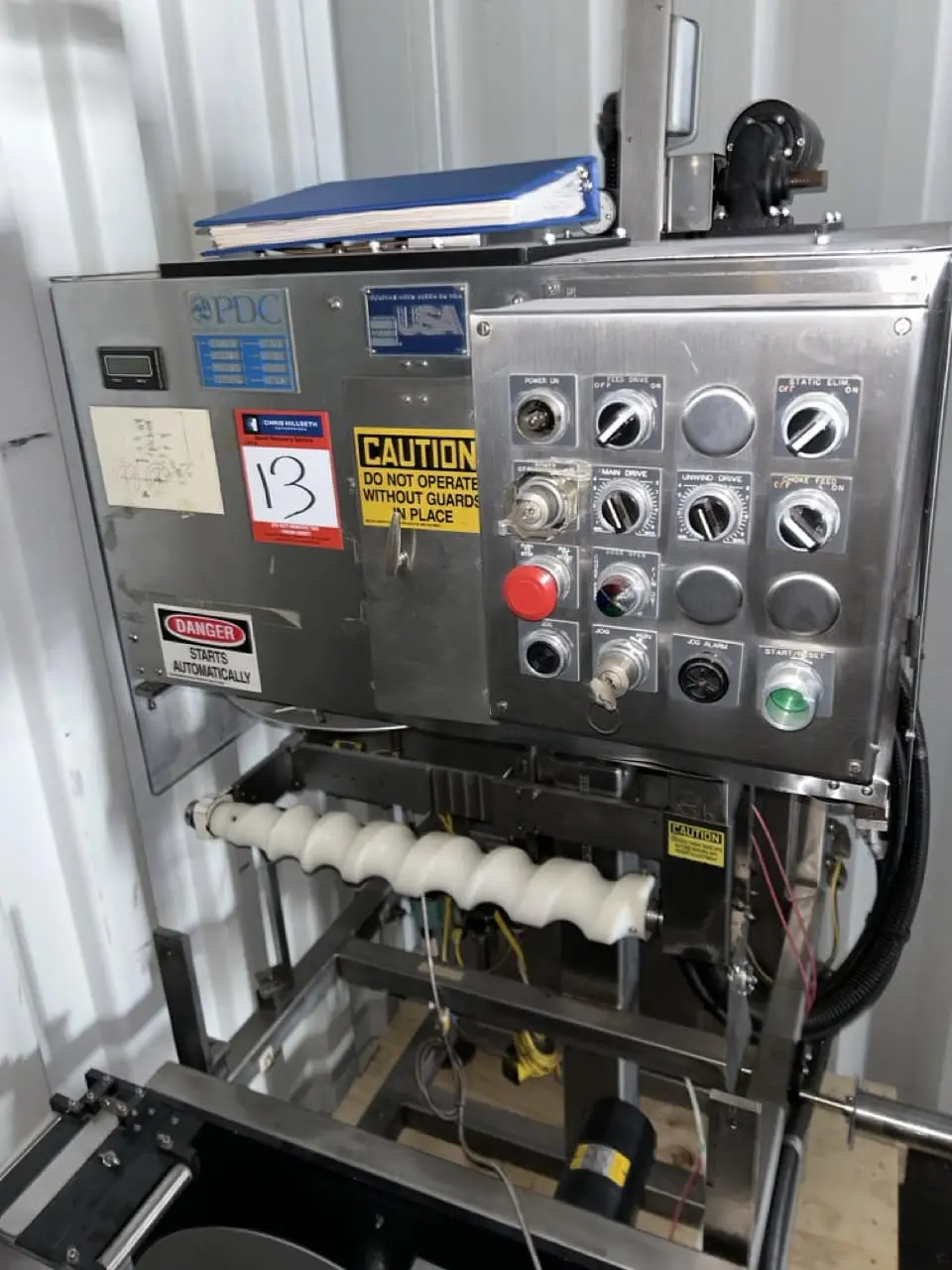

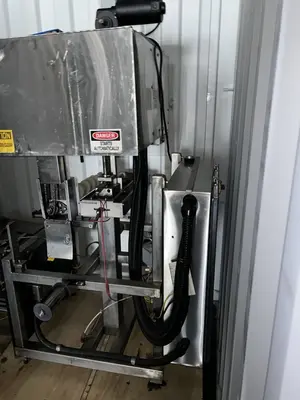

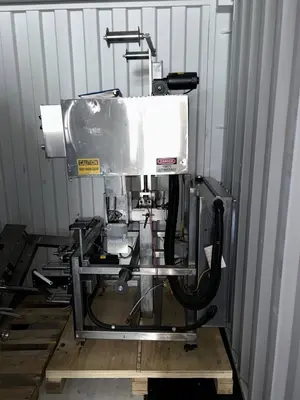

The PDC 50‑E is a stainless-frame tamper-evident neck banding machine for shrink sleeve application at speeds up to 130 containers per minute. It features a timing-screw infeed system, motorized film unwind, and band control technologies designed for pharmaceutical, personal care, and food-grade packaging lines. Compact and efficient, it is built for integration before shrink tunnels or downstream conveyors.
Key Features and Specifications
– Tamper evident shrink sleeve applicator – neckband and full sleeve compatible
– Production speed up to 130 containers per minute
– Band diameter range: 0.375″ to 3″; band height: 0.625″ to 7″
– Powered by timing screw infeed, motorized unwind, static eliminator
– Stainless steel frame, compact and washdown ready
– Single-phase 240V operation, 10A draw
– Common applications: pharmaceutical bottles, nutraceutical jars, small-batch beverage bottles
– Typically PLC controlled – touchscreen HMI
– Compact footprint ideal for inline installations
