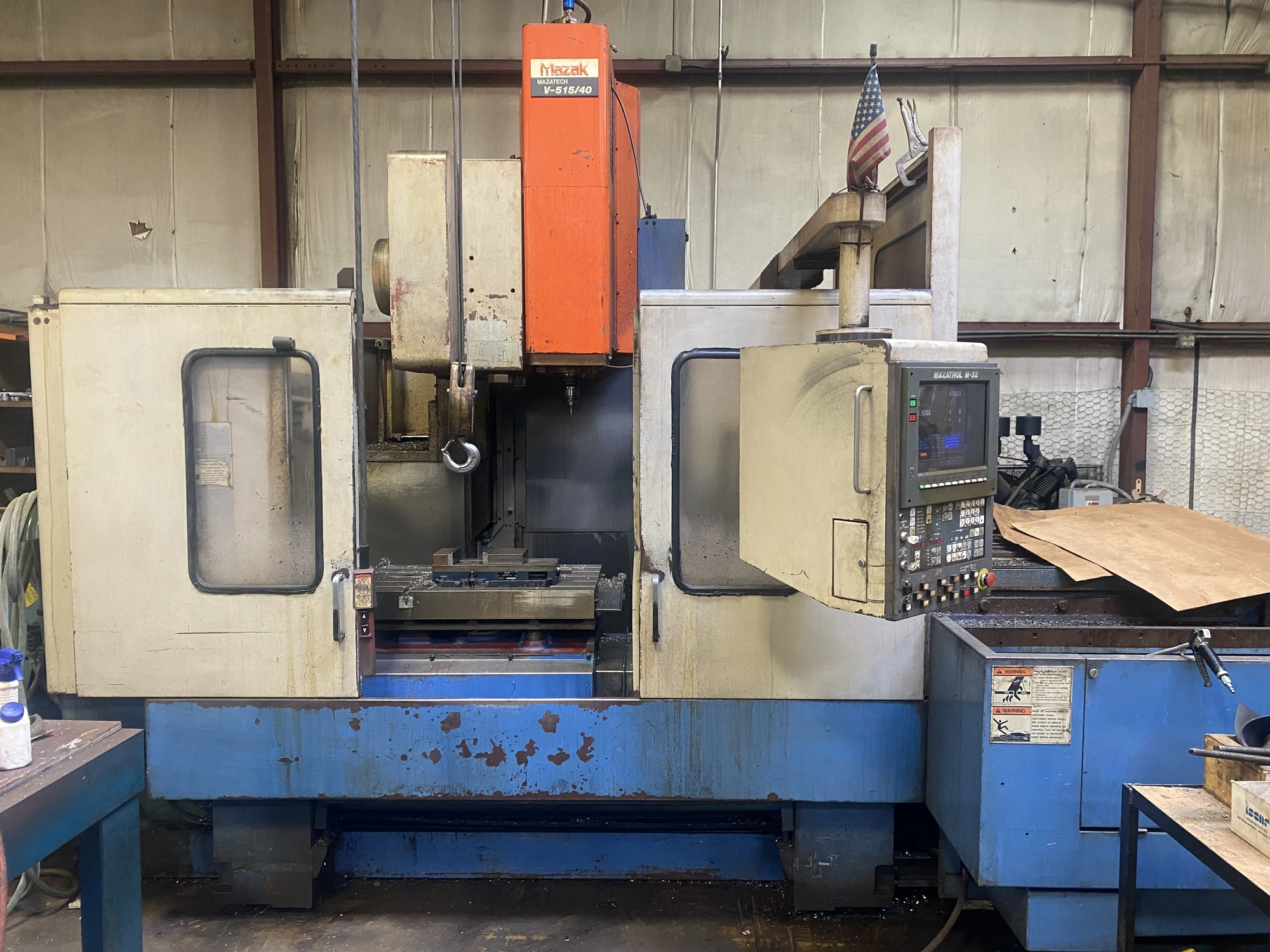

1994 Mazak MTV-515/40 Dual Pallet Vertical Machining Center with Mazatrol M32 CNC Control
| X | 41.32" | 1,049.5 mm |
| Y | 20.07" | 509.78 mm |
| Z | 22.04" | 559.82 mm |
| Power | 30 hp | 22.4 kW |
| RPM | 6,000 RPM | 6,000 RPM |
| # ATC | 30 | 30 |
| Taper | CAT-50 | CAT-50 |
| Control | CNC (Mazatrol M32 CNC Control) | CNC (Mazatrol M32 CNC Control) |
| Weight | 19,700 LBS | 19,700 LBS |
Number Of Tables / Pallets.......2
Table Size.......................21.65" x 51.18"
Weight on Table..................3,300 LBS
Spindle Nose To Table............7.87" - 29.92"
X-Axis Travel....................41.32"
Y-Axis Travel....................20.07"
Z-Axis Travel....................22.04"
Rapid Traverse (X, Y, Z).........945, 945, 708 IPM
Cutting Feed Rate................0.04 - 197 IPM
Spindle Speed....................6000 RPM
Spindle Taper....................CAT-50
Number Of Gear Ranges............2
Main Motor.......................30 HP
Automatic Tool Changer...........30 ATC
Machine Weight...................19,700 LBS
Mazatrol M32 CNC Control
CAT-50 Spindle
Through Spindle Coolant
2-Station Pallet Changer
30 Station ATC
Chip Conveyor
**NEEDS Y-AXIS BALL SCREW**
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
