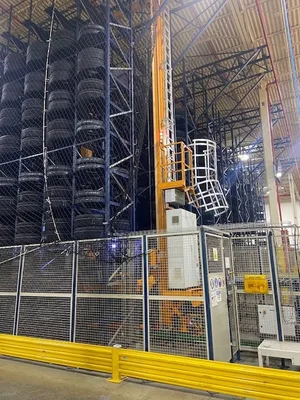

USED 2020 MECALUX S.A. STACKER CRANE SYSTEM

Equipment Overview

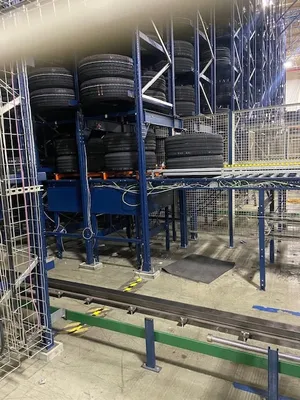

Heavy-duty Mecalux automated stacker crane system designed for high-density storage and retrieval. Current installation includes five independent pick cranes servicing ten storage lanes. Configured footprint is 82′ × 78′. System is in active operation storing tire inventory but is adaptable for other compatible palletized or large cylindrical products.
Key Features and Specifications
• System Type: Automated Stacker Crane / AS/RS
• Number of Cranes: 5
• Number of Lanes: 10
• Current Configuration: Designed for tire storage and retrieval
• Footprint: 82 ft × 78 ft
• Control Voltage: 480/277 V AC, 3-phase, 60 Hz
• Full Load Current: 37.5 A
• Largest Motor: 37.5 kVA
• Main Fuse or Breaker: 50 A
• Max Short Circuit Current: 65 kA @ 480 VAC (RMS Symmetrical)
• Main Over Current Protection SCCR: 65 kA @ 600 VAC Max (RMS Symmetrical)
• Enclosure Type: Type 12
• Current Use: Storage/retrieval of tire inventory in an industrial warehouse environment
• Structure: Heavy-duty steel framing with integrated safety guarding and mesh fencing
• Access/Safety: Gated access zones, laddered maintenance platforms, lockout-tagout points
• Automation: Industrial PLC-based control system with dedicated control cabinets
• Power Supply: Fed from dedicated 480V bus
• Mobility: Fixed installation; disassembly required for relocation
