USED 1900 BUCHER UNIPEKTIN C25

Machine Overview

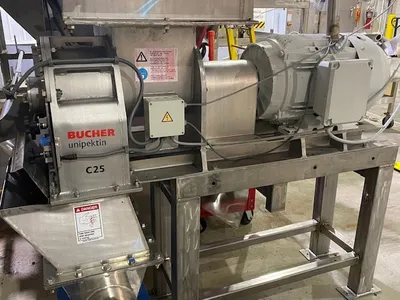

The Bucher Unipektin C25 is an industrial stainless rotary mill used to reduce fruit, root vegetable, and fibrous product prior to pressing or extraction. This unit features a vertical auger feed design with cutting drum assembly, toothed stator segments, and a robust base-mounted motor with inline gearbox.

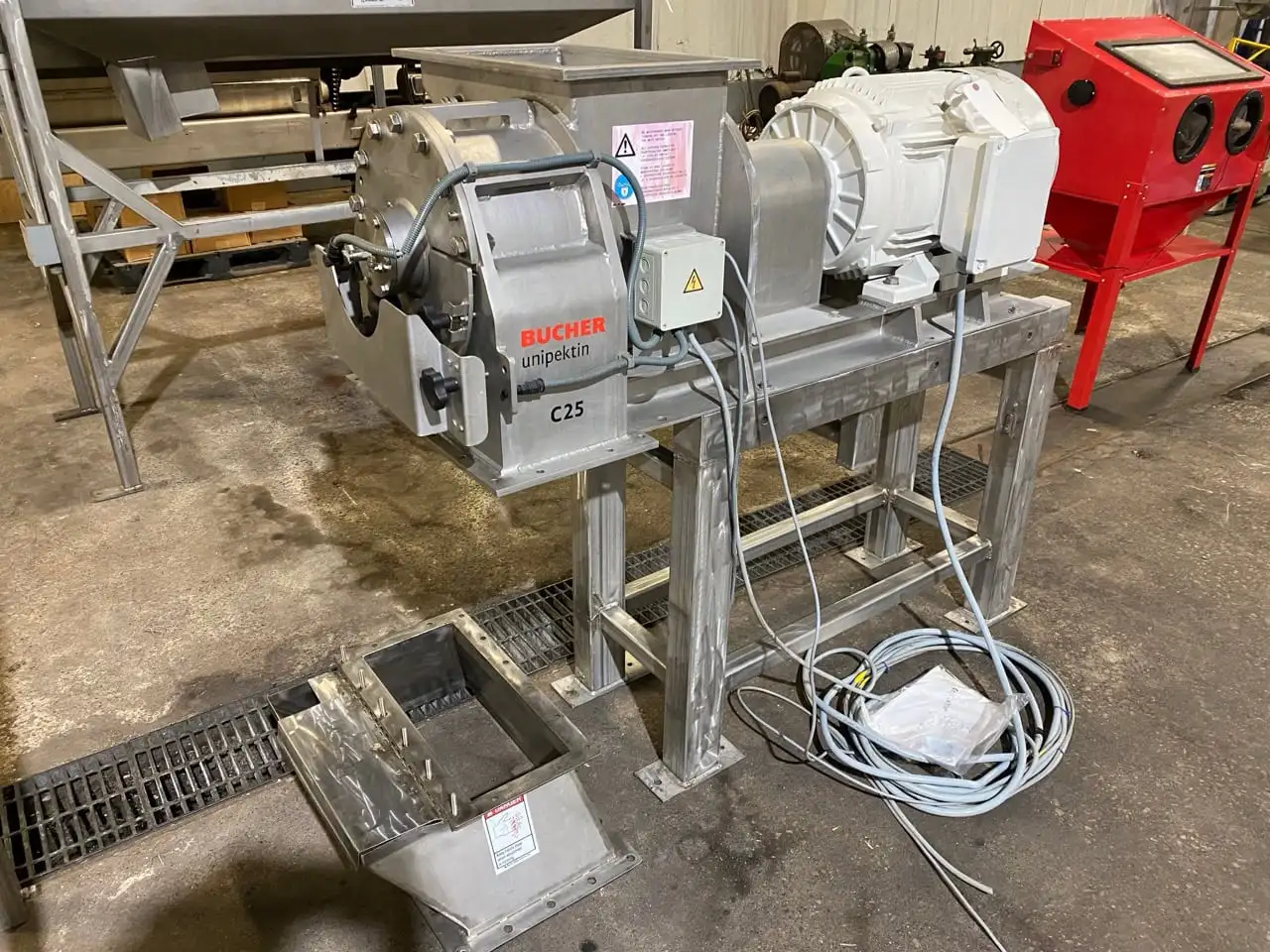

The system includes a removable stainless discharge chute with threaded tie-down lugs, polished auger feed inlet, and visible cutter blade housing with radial slot plates. Condition is excellent — no visible rust, gouging, or deformation. Feed zone, blade chamber, and discharge port are all intact, and the unit is fully staged for crate or integration.
Specifications & Features
Bucher Unipektin C25 rotary cutter
Product suitability: apples, pears, beets, carrots, tomato, stone fruit mash, citrus peel, etc.
Capacity range: 10 – 25 metric tons/hr (depending on feed type and screen)
Rotor diameter: 250 mm
Screen size: standard slotted disc, removable with wedge lock blade retainer

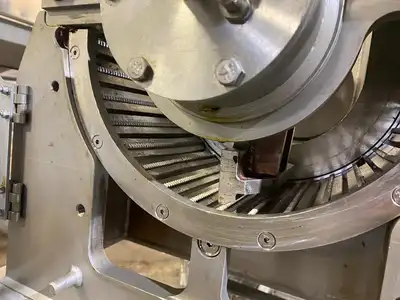

Cutting principle: rotating blade rotor against fixed serrated stator segment
Auger-fed vertical inlet screw – stainless, dual-pitch spiral, full coverage
Product chamber: full weldment with TIG seams and flanged access
Chamber opens via hinged front cover for cutter access
Discharge: removable chute with machined saddle and lift rings
Frame: heavy-duty stainless support legs with leveling pads

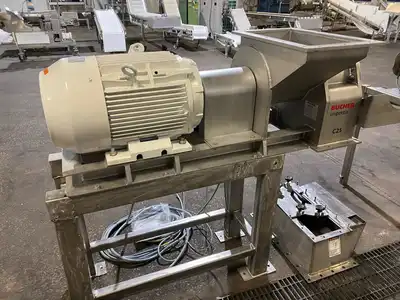

Motor: IEC flange-mounted 3-phase motor, 15–25 HP (est.), with right-angle gear reducer
Integrated cable bundle and control harness included
Designed for CIP/washdown with smooth welds, radius corners, and no pits
Removable bolt-on discharge collection port with guide tabs
