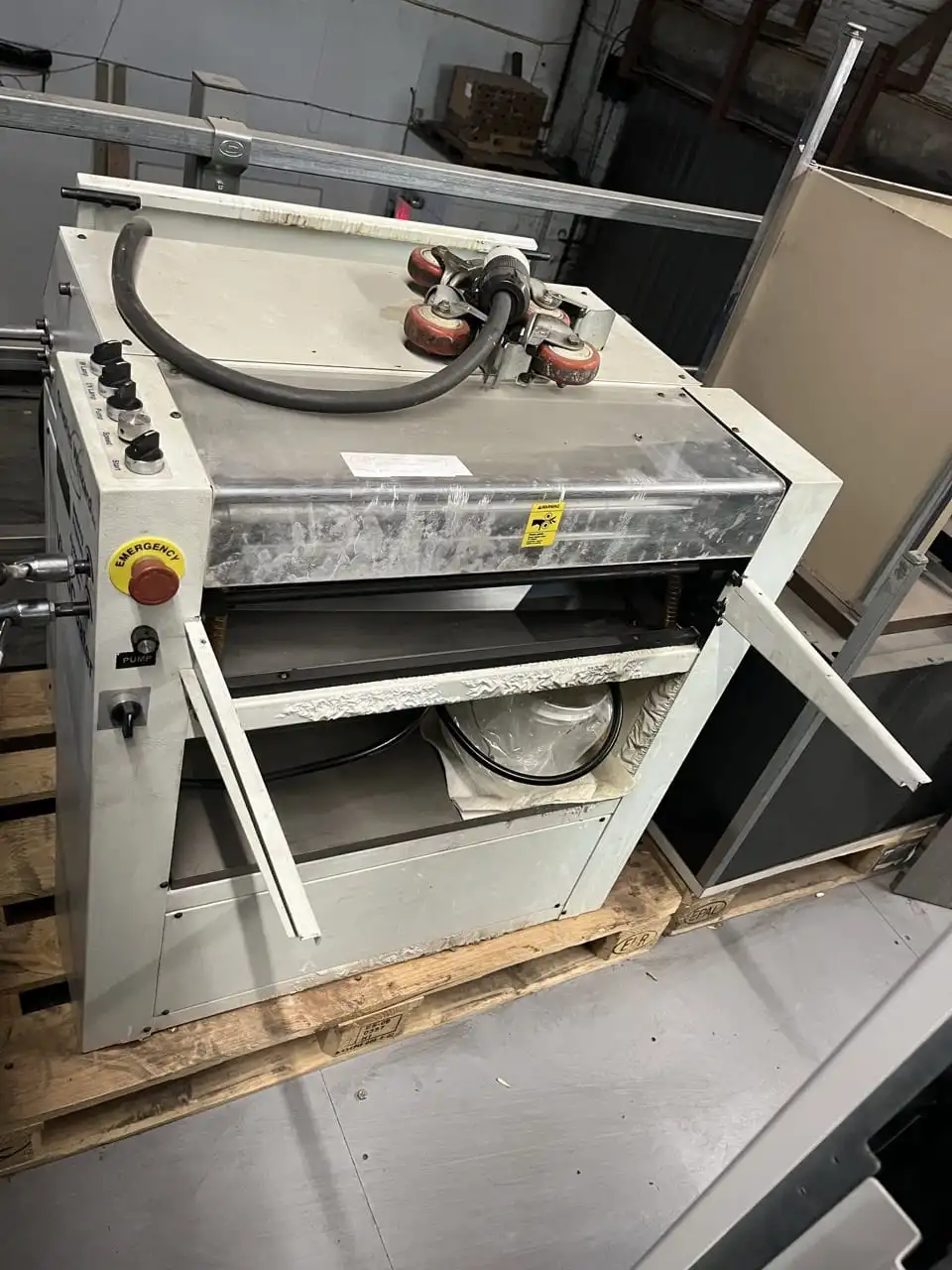

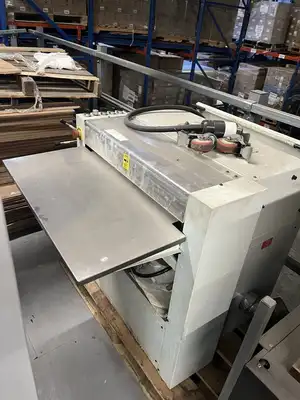

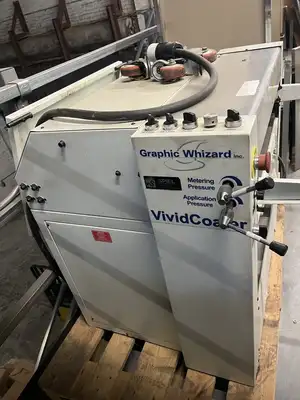

USED 1900 GRAPHIC WIZARD XDC 530 MICRO

Graphic Wizard Vividcoater XDC 530 Micro UV Coater:
– Small footprint (3′ x 3′)
– Recycles UV fluid to eliminate waste
– IR lamp with adjustable intensity
– Coats stock from 128-450 gsm
– Max stock size: 20.75′′Wide (53 cm)
* Length : Unlimited (standard tray holds up to 18′′(457mm)
– Variable speed, up to 2700 sheets per hour
– Coating capacity: 9 lb (4.1 k) buckets (5000+ sheets)
– Amperage 30A breaker required
Voltage 208-240V, 50/60Hz, 1 phase
– Polished chrome metering and bottom rollers
– Stainless steel doctor/wiper blade
– Vacuum cooled UV lamp
– Forward/Reverse controls for easy clean up
– Easy set handles for pressure control
– Dimensions: 29.25′′ x 35.25′′ x 34.25′′ (74x87x87 cm)
– Weight: 420 lbs ( 191 kg)
– Height when the machine is on casters is 39.5′′
