USED 1900 NEDCO E-Z FOLD 2000-S

Equipment Overview
Industrial-grade, pneumatic garment folding machine with integrated bagger and heat-sealer, built for high-throughput operations. Proven model for screen printers, fulfillment centers, and apparel production. Clean controls, programmable logic, and expandable modular setup.
Key Features and Specifications
• Throughput: Up to 1,000 garments per hour
• Power: 110 V, 50 Hz (optional 220 V upgrade available)
• Air Requirements: 100 psi, 3–5 CFM, clean dry air
• Dimensions: Unit: 11 ft (L) × 2 ft (W) × 50 in (H); Shipping: 12′ × 6′ × 3′ crate, ~1,600 lb
• Weight: ~1,200 lb operational
• Folding Adjustments: Manual controls for fold width, tucker positions, infeed table delay, stainless steel loading bed

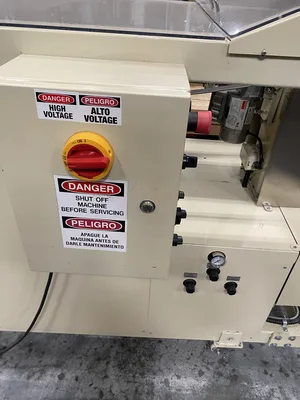

• Safety Features: Emergency stops (front/rear), Main disconnect switch, Guards over chains and pinch points
• Controls: Jog/Run selector, Start button, Tally counter, Delay timers, Feed width, tucker toggles
• Construction: Powder-coated steel frame, Stainless steel working surface
• Included Modules: Inline bagger, Heat sealer, Sleeve tucker module
• Modular Compatibility: Compatible with LS-4200-S long sleeve folder, conveyor stackers, auto counters
