Total Exhaust Capacity 21,000 CFM
Static Pressure Rating 5.5 in. w.g.
Total Motor Power 30 HP
Fan Operating Speed 1,747 RPM
Maximum Fan Speed 1,989 RPM
Motor Voltage 460V/60Hz/3Ph
Static Efficiency 73%
Sound Power Level 94 dBA
Damper Dimensions 19.3″ W x 25.8″ H
Filter Frame Compatibility 24″ x 24″ standard
Operating Temperature Range 70°F standard
Included In This System
Primary Equipment (5 units)

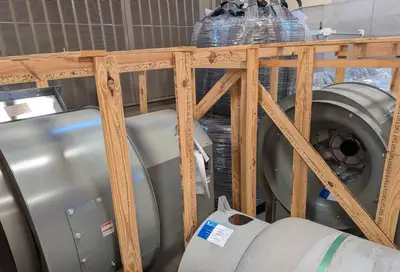

Exhaust Fan EF-1: Greenheck USF-24 Universal Single Width Fan (15 HP, CW rotation)
Exhaust Fan EF-2: Greenheck USF-24 Universal Single Width Fan (15 HP, CCW rotation)
Backdraft Damper EF-1: Greenheck HB-240 Heavy Duty (19.3″ x 25.8″)
Backdraft Damper EF-2: Greenheck HB-240 Heavy Duty (19.3″ x 25.8″)

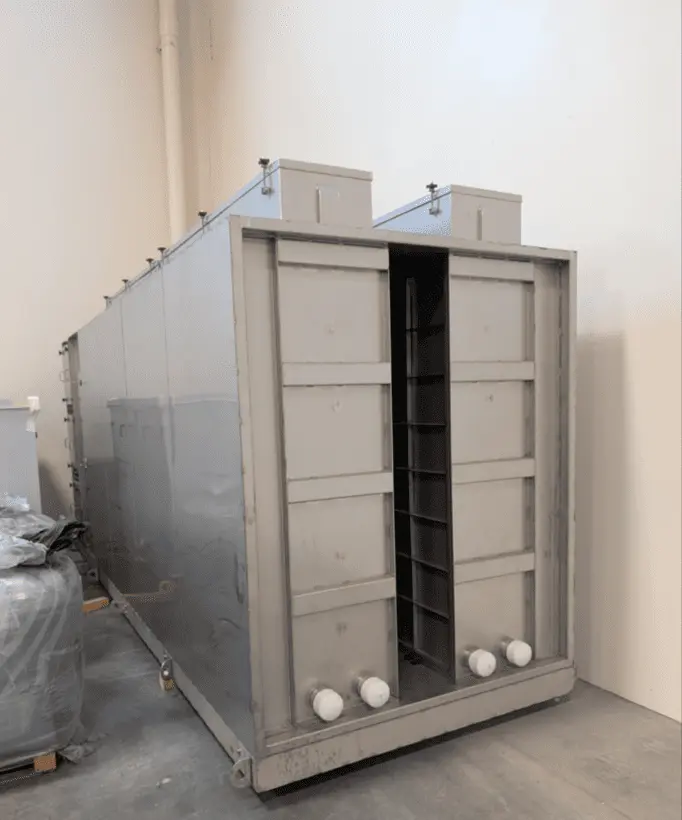

Deep Bed Scrubber: AAF Flanders Multi-Stage
Filtration Unit
Integration Components
Electrical disconnect switches (NEMA-3R rated)
Motor covers and weather protection
Vibration isolation and mounting hardware
Consumables Included
SAAFCarb™ MB: Engineered chemical media for gas-phase contaminant removal
MEGApleat® M9: Extended surface pleated panel filters for high-efficiency particulate removal
MEGAcel® : Separator-style HEPA filters for final stage filtration
