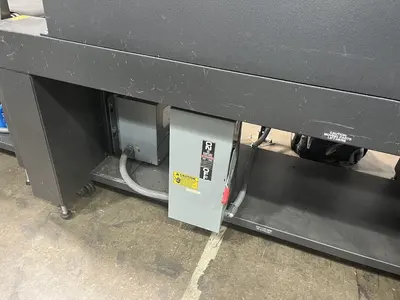

USED 2020 EASTEY EM3080-TKV1-SP169 AND ETB2420L-PBV6
Specs

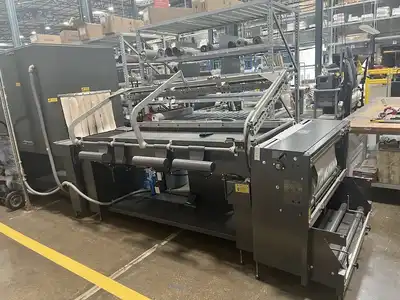

Used Eastey EM3080TK Large Format L-Bar Sealer with Eastey ETB2420L Heat Tunnel, 2020 for sale:

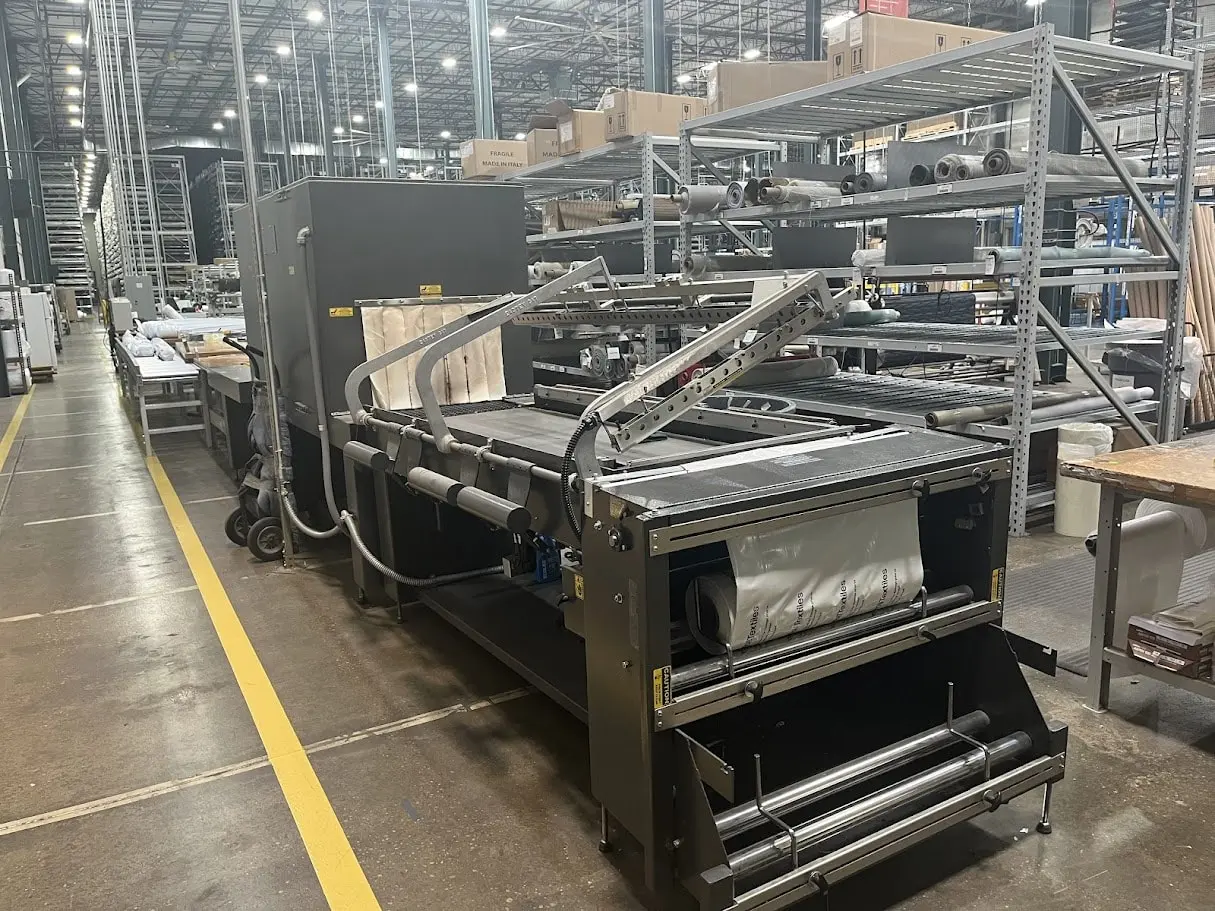

Eastey EM3080TK Large Format L-Bar Sealer with hot knife seal bar:

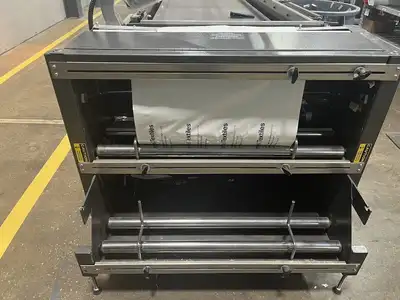

– Includes optional powered film unwind
– Takeaway conveyor
– Hot knife seal bar
– Seal dimensions: 80″ Front x 30″ Side
– Machine dimensions: 187″ L x 43″ W x 44″ H
– Standard power: 220V, 25 Amps, 1 Ph
– Net weight: 1800 lbs
– Est. shipping weight: 1900 lbs
– Designed to seal most polyolefin, polyethylene, and PVC shrink films
– All-welded main frame from 1⁄4-inch cold-rolled steel
– Built in drawer for tools or spare parts
– Seal head casting equipped with head return cylinder
– Stainless steel film clamps hold film in place while sealing
– Dual locking magnet clamps apply even pressure across the seal-bar
– Adjustable dwell time for better seal control

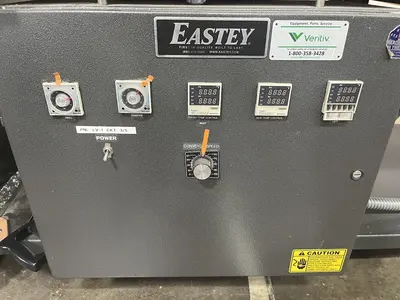

– Solid state temperature control adjustable for a variety of films*
– Adjustable product tray accommodates wide variety of product sizes
– Takeaway conveyor can be raised or lowered to center the seal with the product
– Automatic takeaway conveyor
– Heavy duty film cradle allows for easy changeovers and adjustments
– Adjustable pin perforator provides air evacuation
– Maximum film width up to 44 inches
– Maximum film roll O.D. up to 12 inches; 10 inches with power unwind (not included)
– Custom two-part epoxy finish resists scratching
– Heavy duty casters for transportation within plant
– Made in the USA

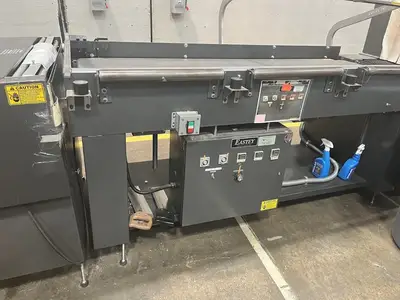

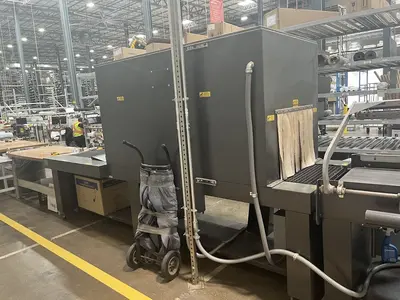

Eastey ETB2420L Heat Tunnel:
– Machine dimensions: 149″ L x 43″ W x 56-72″ H
– Chamber Dimensions: 78″ L x 24″ W x 20″ H (The chamber opening is 26 ¾ ” W x 20 ½” H)
(because of the flaps you’ll have 19 ¾” of useful height)
– Conveyor length: 147″
– Designed to shrink-seal polyethylene film
– All-welded main frame from 12-gauge steel
– 78-inch chamber length to ensure proper shrinking of film
– High temperature belting resists wear

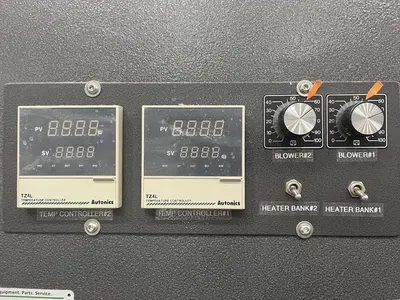

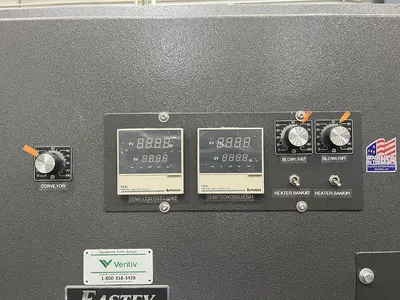

– Adjustable digital solid-state temperature control for a variety of films
– Four-directional air-flow provides positive shrinking
– Variable air-flow for a variety of products and applications
– Large ducting directs more air volume inside the tunnel
– Airflow is extended to the end of the chamber sides
– Four-foot product cooling conveyor at exit end.
– Exit cooling fans accelerate shrinking
– Delayed cool-down and over-temperature protection
– Heavy duty casters for transportation within plant
– Leveling legs provide a sturdy base once in place.
– Custom two-part epoxy finish resists scratching
– Made in the USA
