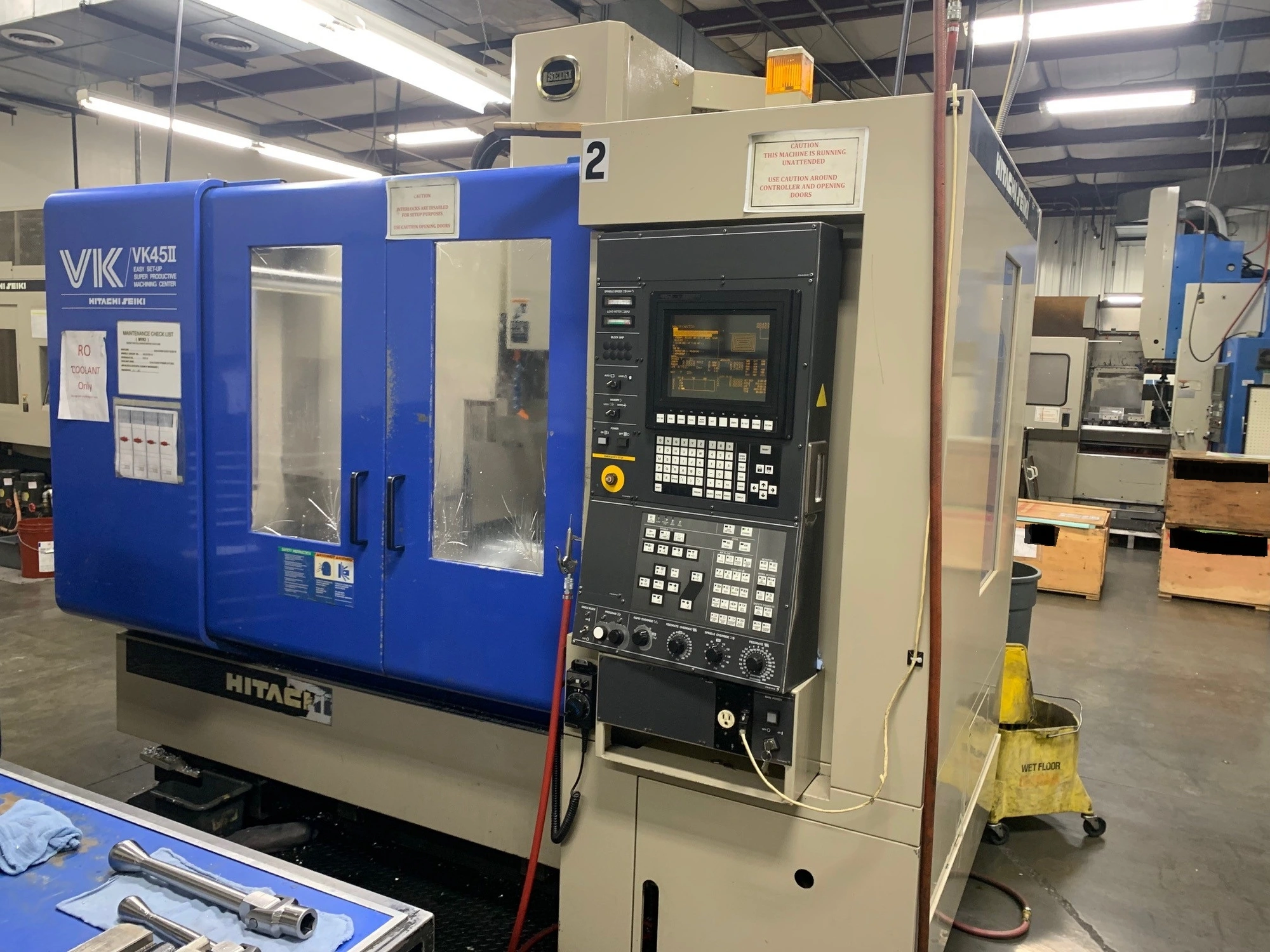

USED 1997 HITACHI SEIKI VK 45-II
Overview
Description
1997 Hitachi Seiki VK45II with Seicos 10M Control
Specifications
TABLE SIZE......................44.1" X 19.1"
TABLE LOAD CAPACITY.............1,650 LBS
X-AXIS TRAVEL...................30"
Y-AXIS TRAVEL...................19.7"
Z-AXIS TRAVEL...................19.7"
SPINDLE NOSE TO TABLE TOP.......5.9" - 23.9"
SPINDLE TAPER...................CAT-40
SPINDLE SPEED...................8,000 RPM
SPINDLE MOTOR...................10 HP
RAPID TRAVERSE RATES (X,Y/Z)....1081 / 790 IPM
TOOL MAGAZINE CAPACITY..........20 POSITION TOOL CHANGER
MAXIMUM TOOL DIAMETER...........4.3"
MAXIMUM TOOL LENGTH / WEIGHT....11.8" / 22 LBS
MACHINE DIMENSIONS..............124" X 91" X 99"
MACHINE WEIGHT (APPROX.)........14,800 LBS
Equipped With
SEICOS 10M CNC CONTROL
RS-232 PORT
20 STATION SIDE MOUNT TOOL CHANGER
FLOOD COOLANT
CHIP CONVEYOR
RIGID TAPPING
HAND HELD REMOTE PENDANT
ALL AVAILABLE MANUALS
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
