USED 2002 COLUMBIA BOILER CO CT‑37.6‑S

Equipment Overview

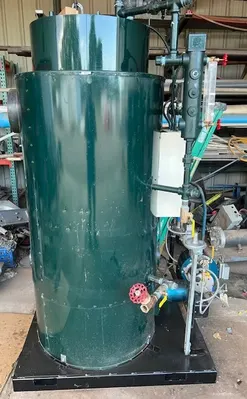

2002 Columbia CT‑37.6‑S vertical tubeless steam boiler with a matching Power Flame C1‑G‑10B natural gas burner. Unit is rated at 150 PSI and provides ~1,576 lb/hr steam capacity. Burner gas train, wiring, and safety components appear intact. Ideal for laundry, brewery, light industrial, and institutional steam applications.
Key Features and Specifications
Boiler – Columbia CT‑37.6‑S
– Vertical tubeless, 3-pass firetube steam boiler
– Steam Pressure: 150 PSI
– Steam Capacity: ~1,576 lb/hr
– Boiler Horsepower: 37.6 HP
– Heating Surface Area: 51.7 sq ft
– Construction: 3/8″ rolled steel shell, 16 gauge jacket
– UL Listed
– Electrical: 115V, 7.2 Amps, 60Hz

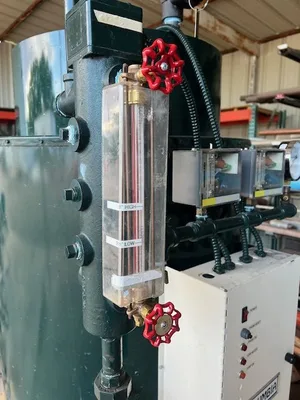

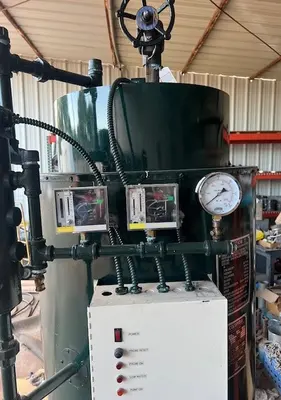

– Factory-supplied with blowdown, safety, sight glass, pressure gauge
– Ventilation: 18″ min clearance to combustibles
Burner – Power Flame C1‑G‑10B
– Fuel Type: Natural Gas
– Input Capacity: Approx. 1,500 MBH
– Series: “C” forced-draft burner series
– Includes Maxitrol fuel regulator, Honeywell RM7895 controller
– 1 HP blower motor, 1PH, 115/208-230V, 60Hz
– Flame safeguard, pilot, solenoids, main shutoff
– UL/FM listed burner
– Modular panel and gas train design
