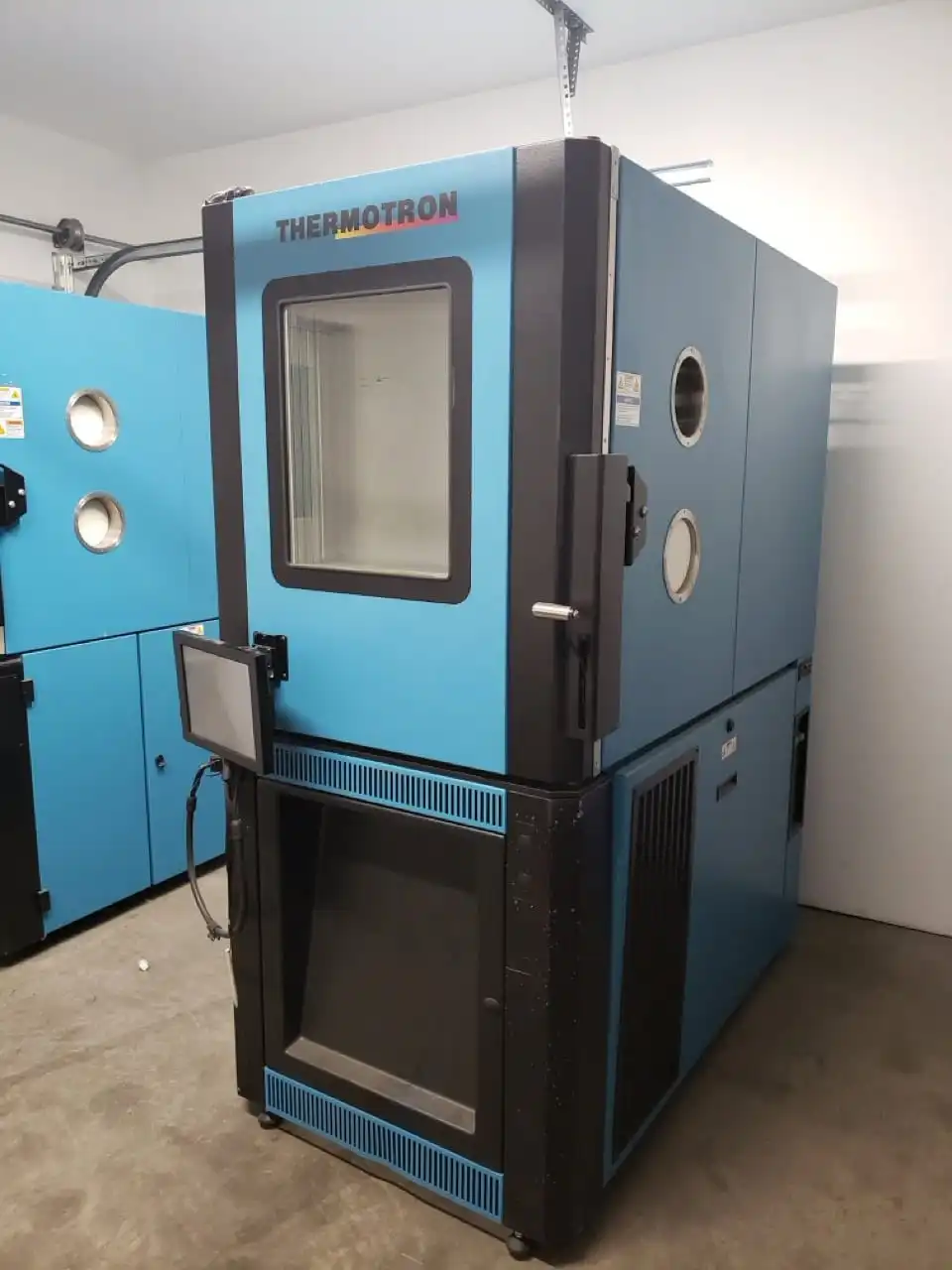

USED 2014 THERMOTRON SE-300-4-4

Electrical
Supply: 230 V, 3-phase, 60 Hz (230-3-60)
Maximum Load: 55.2 A
Recommended Service: 60 A
Enclosure Type: 1
Motors & Loads
Largest Motor: 4 HP — 10.5 A
Largest Heater Load: 8 kW — 20.1 A
Other Loads: 24.6 A
Total (as shown): (Maximum Load indicated on nameplate: 55.2 A)
Short-Circuit / Wiring
Short Circuit Current Rating: 5 kA RMS symmetrical
Voltage Rating for Short-Circuit Spec: 250 V max.
Wiring Schematic: E45645-1
Refrigeration & Standby
Refrigerant (primary): R508B — 2.0 lbs
Alternate / additional refrigerant: R404A — 10.6 lbs
Standby Pressure: 120 PSIG
