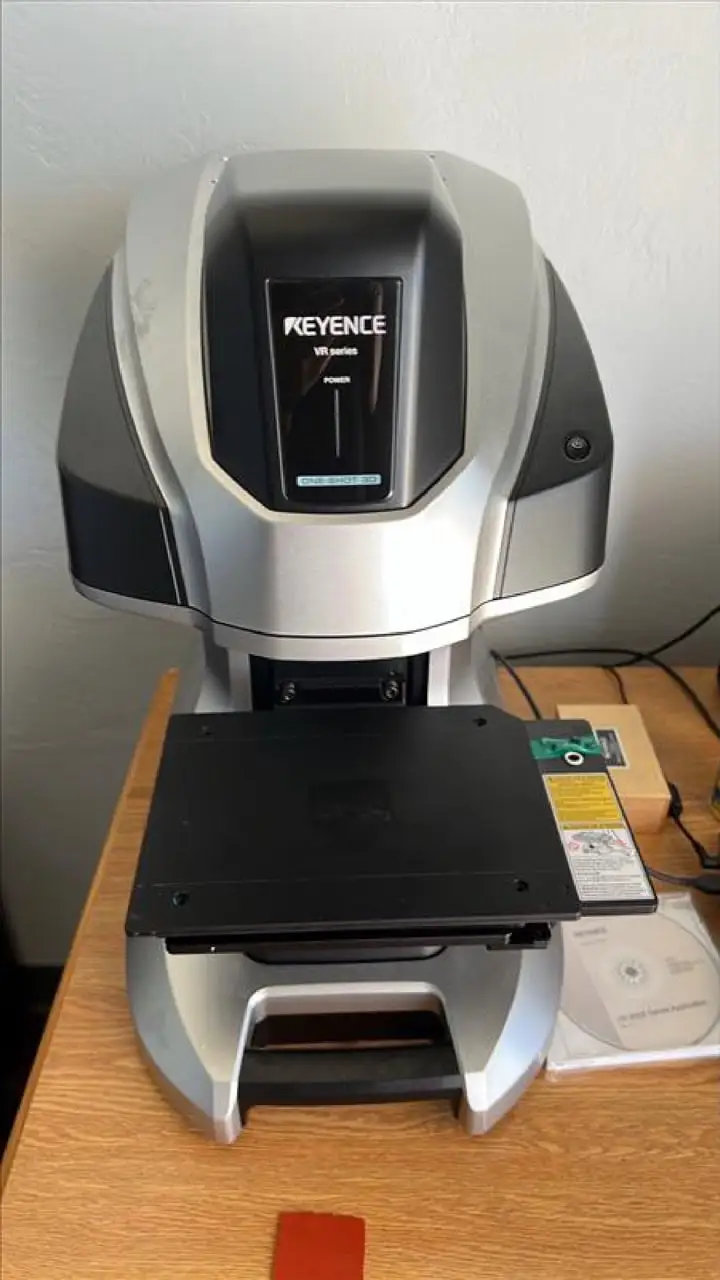

USED 2021 KEYENCE VR-6100

Model: VR-6100
Type: Head Unit (Standard Model)
Controller: VR-6000
Operating System: Windows 10 Professional / Windows 11 Professional
Optical & Measurement Specifications
Zoom Range: 1× to 4×
Display Resolution: 0.1 μm
Field of View (Horizontal × Vertical):
24.0 × 18.0 mm (12× magnification)
12.0 × 9.0 mm (25×)
8.0 × 6.0 mm (38×)
7.6 × 5.7 mm (40×)
6.0 × 4.5 mm (50×)
3.8 × 2.9 mm (80×)
2.5 × 1.9 mm (120×)
1.9 × 1.4 mm (160×)
Height Measurement Range
Without Z Stitching:
Low Mag (wide FOV): 10 mm (0.39″)
High Mag (high res): 1 mm (0.04″)
With Z Stitching:
Low Mag (wide FOV): 50 mm (1.97″)
High Mag (high res): 30 mm (1.18″)
Measurement Accuracy
Height:
Without Z Stitching: ±2.5 μm
With Z Stitching: ±4.0 μm
Repeatability (σ):
Without Z Stitching: 0.4 μm
With Z Stitching: 1.0 μm
Width:
Low Mag (wide FOV): ±5 μm
High Mag (high res): ±2 μm
Stage Specifications
XY Measurable Range: 92 × 86 mm (3.62″ × 3.39″) with VR-H4J module
XY Stroke: 70 × 70 mm (2.76″ × 2.76″) manual
Z Stroke: 69 mm (2.72″) motorized
Load Capacity: 4.5 kg (9.92 lb)
Working Distance: 75 mm (2.95″)
Optics & Illumination
Image Sensor: 4-megapixel monochrome CMOS
Transmitter Lens: Double-telecentric lens × 2
Receiver Lens: Double-telecentric lens
Observation Light Source: LED ring (red, blue, green)
Measurement Light Source: White LED
System & Power
Data Processing: Dedicated PC specified by Keyence
Power Supply: 100–240 VAC ±10%, 50/60 Hz
Power Consumption: 200 VA max
Environmental Conditions
Temperature: +15 to +30°C (59 to 86°F)
Humidity: 20 to 80% RH (no condensation)
Physical
Weight: Approx. 25 kg (55.12 lb) total
Measurement Unit Only: Approx. 11 kg (24.25 lb)
**SPEC SHEET AVAILABLE BY REQUEST**
