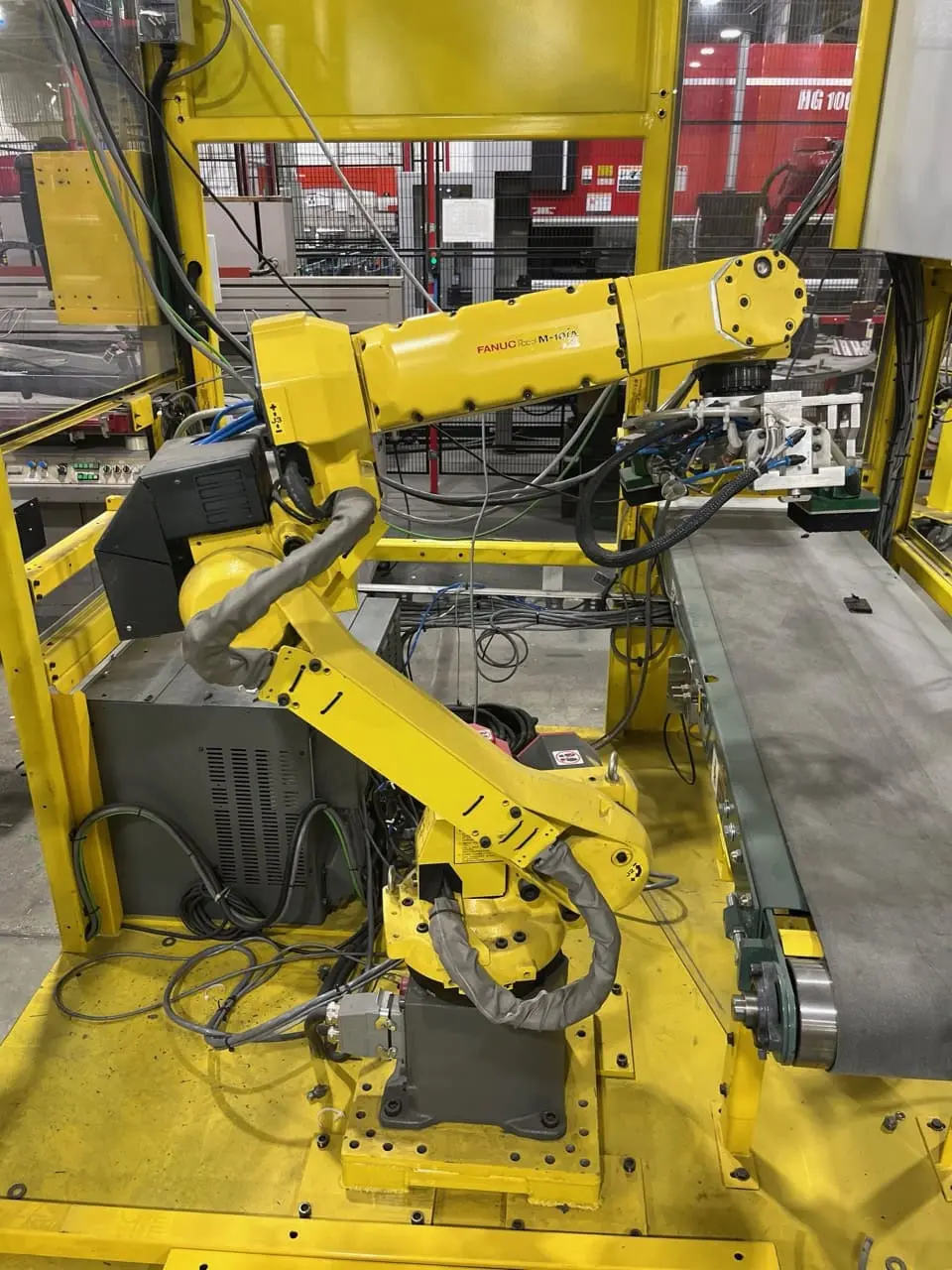

USED 2017 FANUC M-10IA/12

Overview
Type:
Robots
Manufacturer:
FANUC
Model:
M-10IA/12
Year:
2017
Stock #:
367546
Specifications

Model: Fanuc M-10iA/12
Year: 2017
Payload: 12 kg (26 lbs)
Reach: 1,420 mm (55.9 in)
Repeatability: ± 0.08 mm
Axes: 6
Mounting: Floor, wall, or inverted
Robot Weight: Approx. 130 kg (287 lbs)
Protection Rating: IP54 (body)
Motion Ranges / Speeds:
J1: ± 340°, 230°/s
J2: ± 250°, 225°/s
J3: ± 447°, 230°/s
J4: ± 380°, 430°/s
J5: ± 380°, 430°/s
J6: ± 720°, 630°/s
Dimensions (Approx. Uncrated): 40″ W × 36″ D × 60″ H — ~300 lbs
