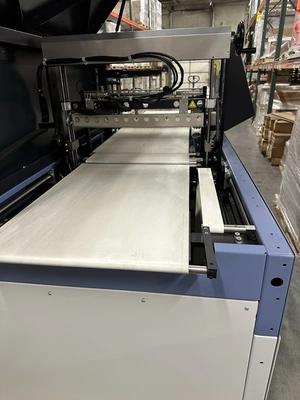

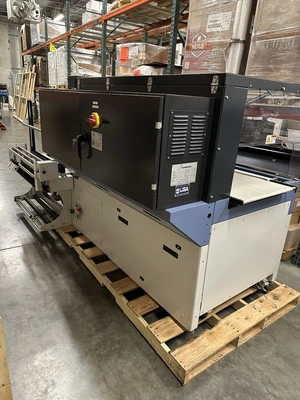

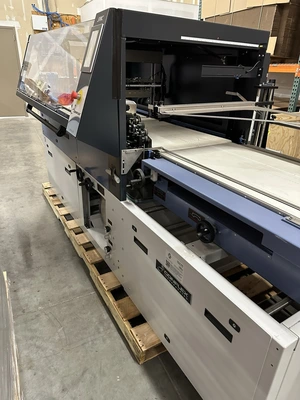

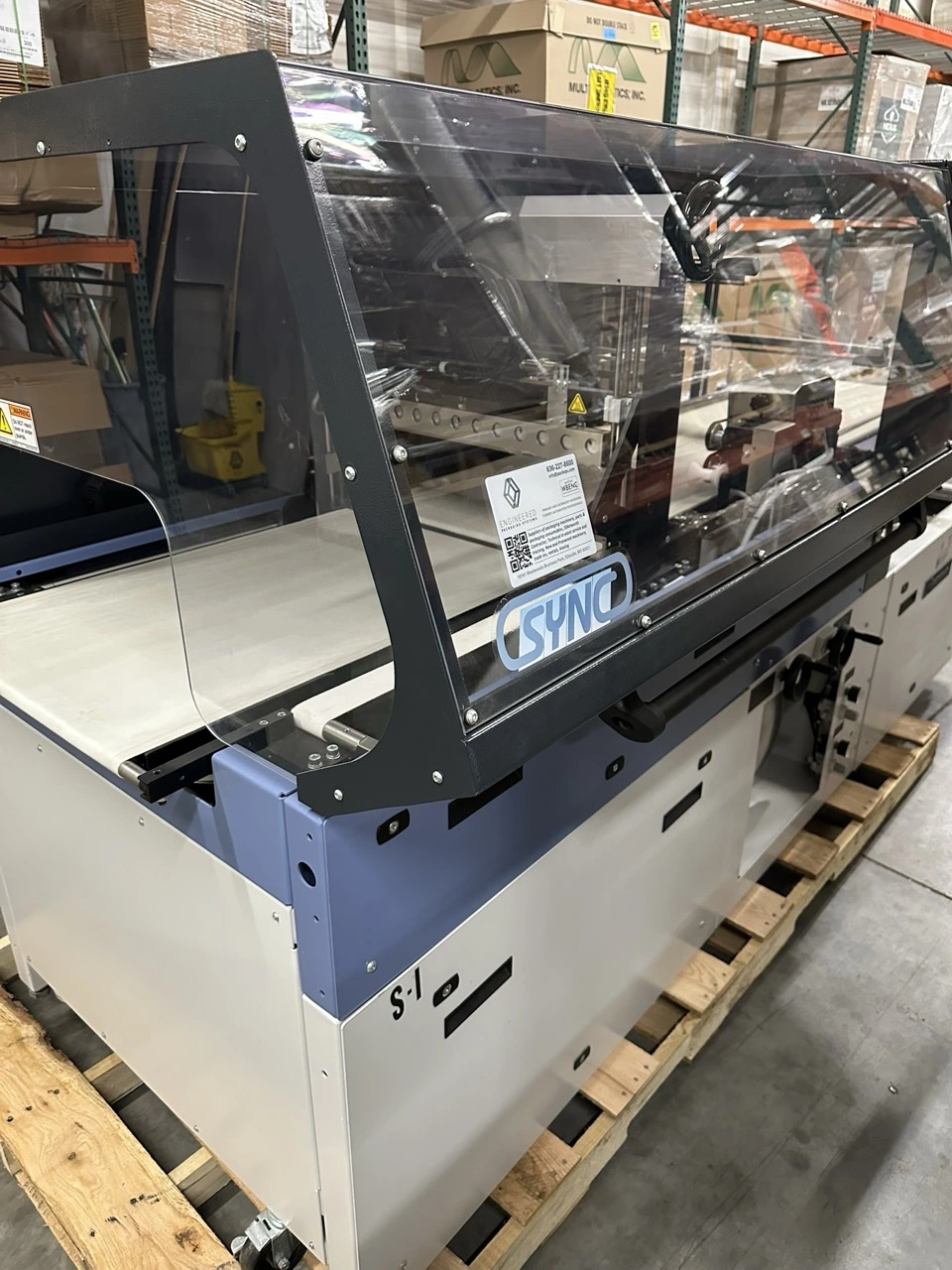

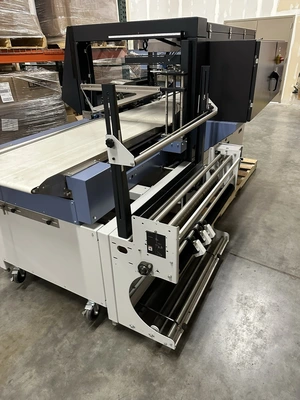

Machine Dimensions & Film Handling
Overall Length: 96″
Width: 48″
Height: 60″
Max Film Width: 31″ (centerfold film)
Cross Seal Width: 24″

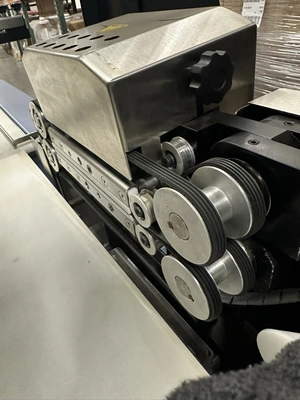

Seal Type: Hot knife or rotary seal bar
Speed: Up to 100 feet per minute
Conveyor Width: 20″
Product Height Range: Adjustable up to 10″
Features

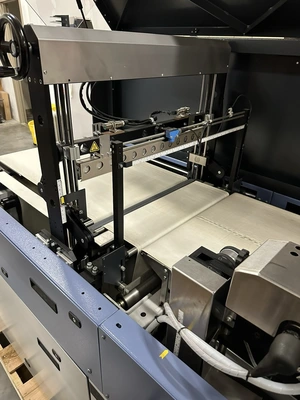

Servo-driven seal head for continuous motion

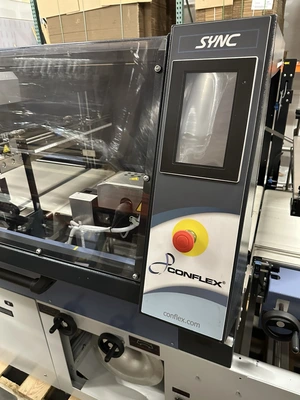

Touchscreen HMI with programmable wrap profiles
Photoeye product detection
Swing-away doors for easy access
Power: 220V / 3-phase
Air: 80 PSI

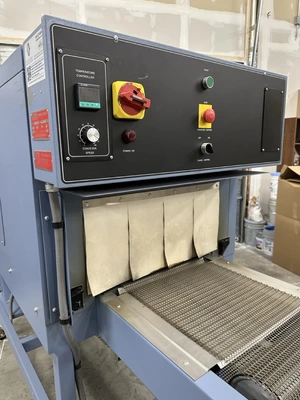

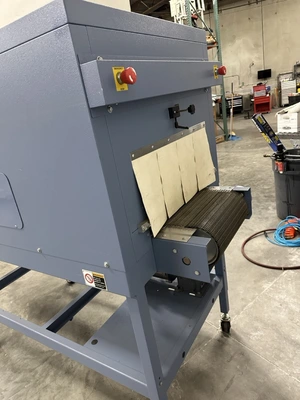

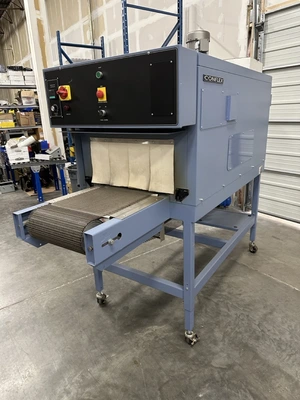

Shanklin CT-T71B — High-Speed Shrink Tunnel
Tunnel passage: 10” high x 22” wide x 60” long
Tunnel size: 36” wide x 68.5” high x 92” long
Conveyor height: 29” minimum, 42”maximum
Conveyor length: 92”long standard
Power: 230 volts, 3 phase, 53 amps, 12.1 KVA max
Blower motor: 1.5 hp, 3 phase
Temperature controller: Digital readout solid state controller
Safety features: Motor overload protection, high temperature limit switch, main power circuit breaker, emergency stop switches
Construction: Carbon steel construction, adjustable legs, on casters
Features: Digital temperature control, air velocity and control options, fin strip heaters, continuous 2-inch single piece insulation
Material: Available in stainless steel construction
