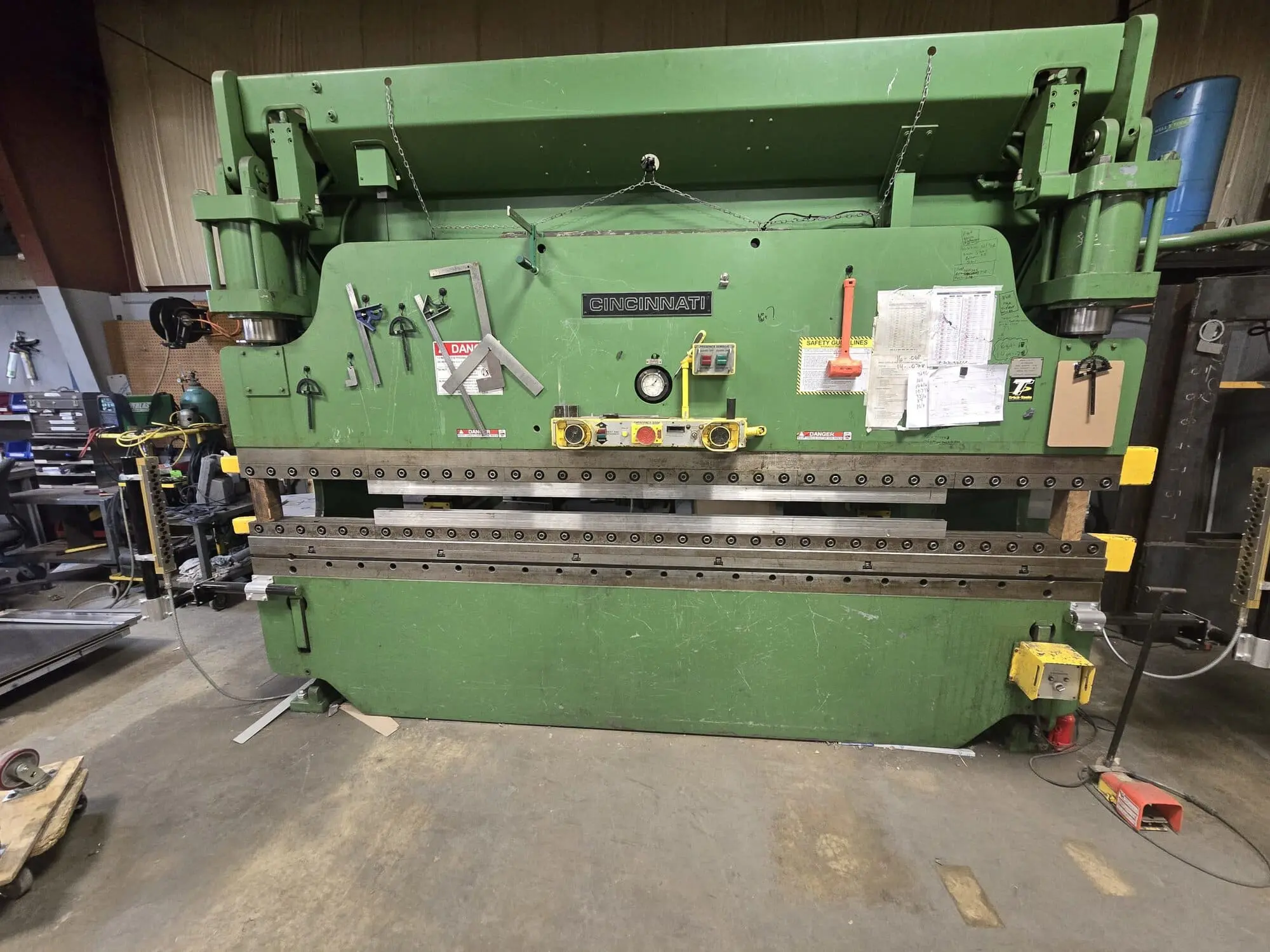

USED 1986 CINCINNATI AS90X10
Overview
Specs
Capacity: 90 Ton x 12‘
Tonnage Capacity: 90 tons
Overall Bending Length: 144”(12 feet)
Distance Between Side Housings: Approximately 126.5” (10 feet 6.5”)
Stroke Length: 8”
Open Height: 15”
Closed Height: 7”
Throat Depth: 7”
Ram Speeds:
Approach: 312–380” per minute (IPM)
Forming: 15–120 IPM
Return: 294–405 IPM
Backgauge Travel: Typically 24” (programmable X-axis)
Main Motor: 17.5 to 25 horsepower, 220/440V, 3-phase
Bed Width (Top Surface): 3.5”
Machine Weight: 8,800 lbs
Footprint: 150″ L × 60″ D × 96″ H (varies slightly by configuration)
Equipped With:

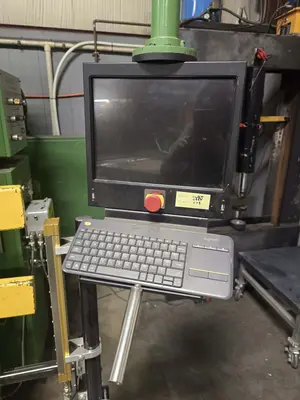

Upgraded touchscreen controls (2024)
Both cylinders rebuilt (2024)
4-way valve replaced (2024)
Oil changed (2024)

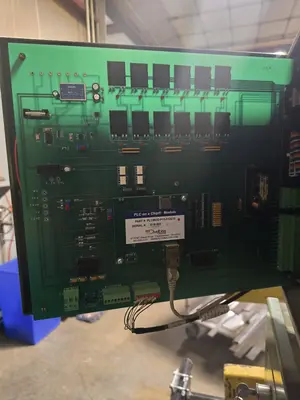

Electronics and Control updated 2024

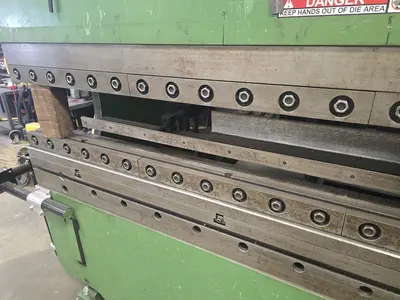

Hydraulic upper and lower clamps

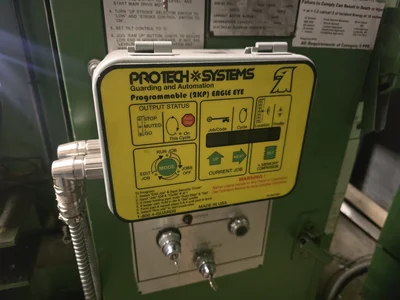

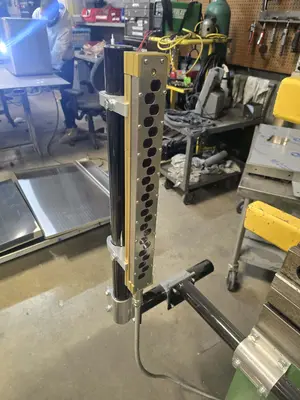

Protect light curtain
Ethernet connection and runs windows 10
The unit can be programmed remotely, access files if connected to a server, has 512GB of on-board storage, and remote support is available
Currently wired for 240v 3 phase @ 45amp (60 amp breaker/fuse)
