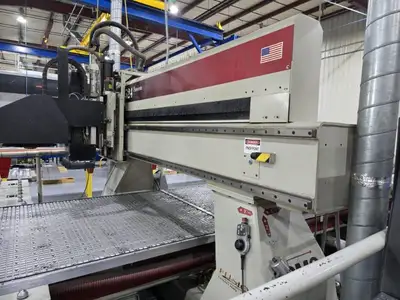

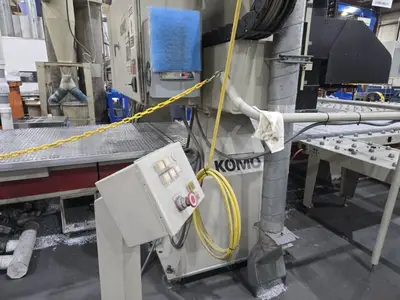

USED 2007 KOMO FUSION 524 VR

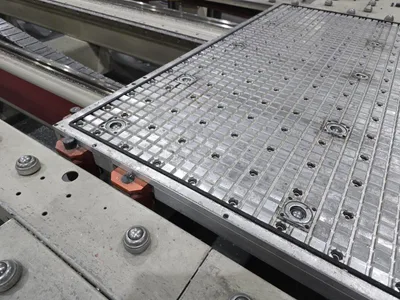

Table Size: 5′ x 24′ (60″ x 288″) vacuum table.
Axis Travel:

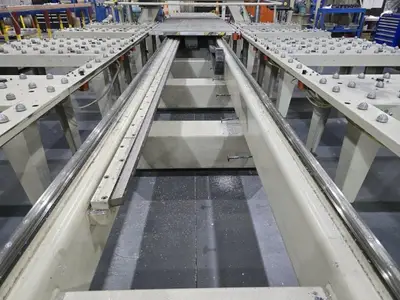

X-Axis: 288″ (moving table)
Y-Axis: 60″ (gantry cross travel)
Z-Axis: 12″ (spindle vertical travel)

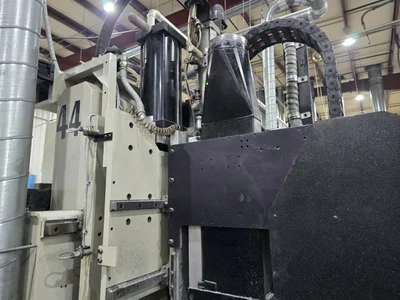

Spindle: 24,000
Horsepower: 14 HP
Speed: 24,000 RPM (revolutions per minute)
Taper: HSK 63F
Type: Fan-cooled, 4-pole
Automatic Tool Changer: 15 position carousel

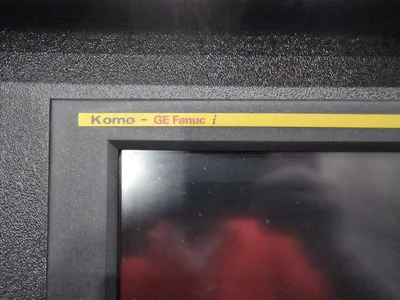

Control System: Komo-GE Fanuc i CNC Control
Axis Drives: Digital Fanuc Alpha HVI servo motors on all axes, with a pre-loaded precision ball screw system for Y and Z axes, and a rack and pinion or ball screw system for the X-axis.
Construction: Heavy-duty steel fabrication with a FEA (Finite Element Analysis) engineered structure.
Overall Machine Dimensions: Approximately 299″ (L) x 86″ (W) x 10″ (H)
Weight: Approximately 25,000 lbs (11,340 kg)
Electrical: 480 Volts, 3 Phase, 60 Hz
Equipped With:
Komo-GE Fanuc i CNC Control,

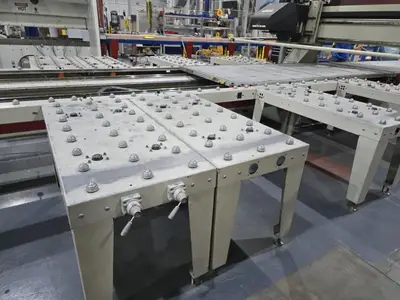

Manual Roller-Ball Type Transfer Tables With Pneumatic Positioning Locks

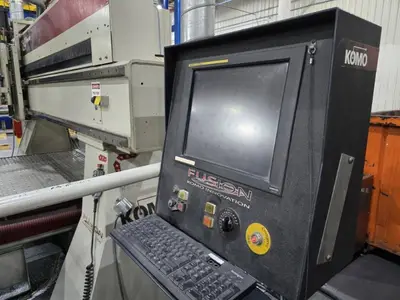

Portable Pedestal Type Control Stand With Hand Pendant,
Koolant Koolers Dimplex
Thermal Solutions Model JT750 Spindle Oil Chiller
Dust Collection System With Cyclone Receiver & Dust Filter Bags
