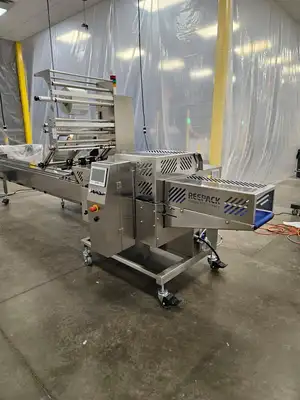

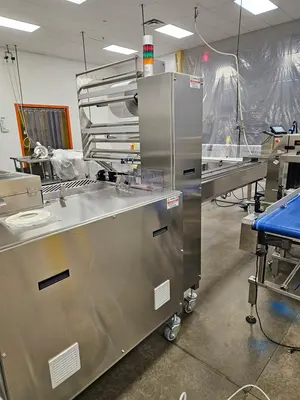

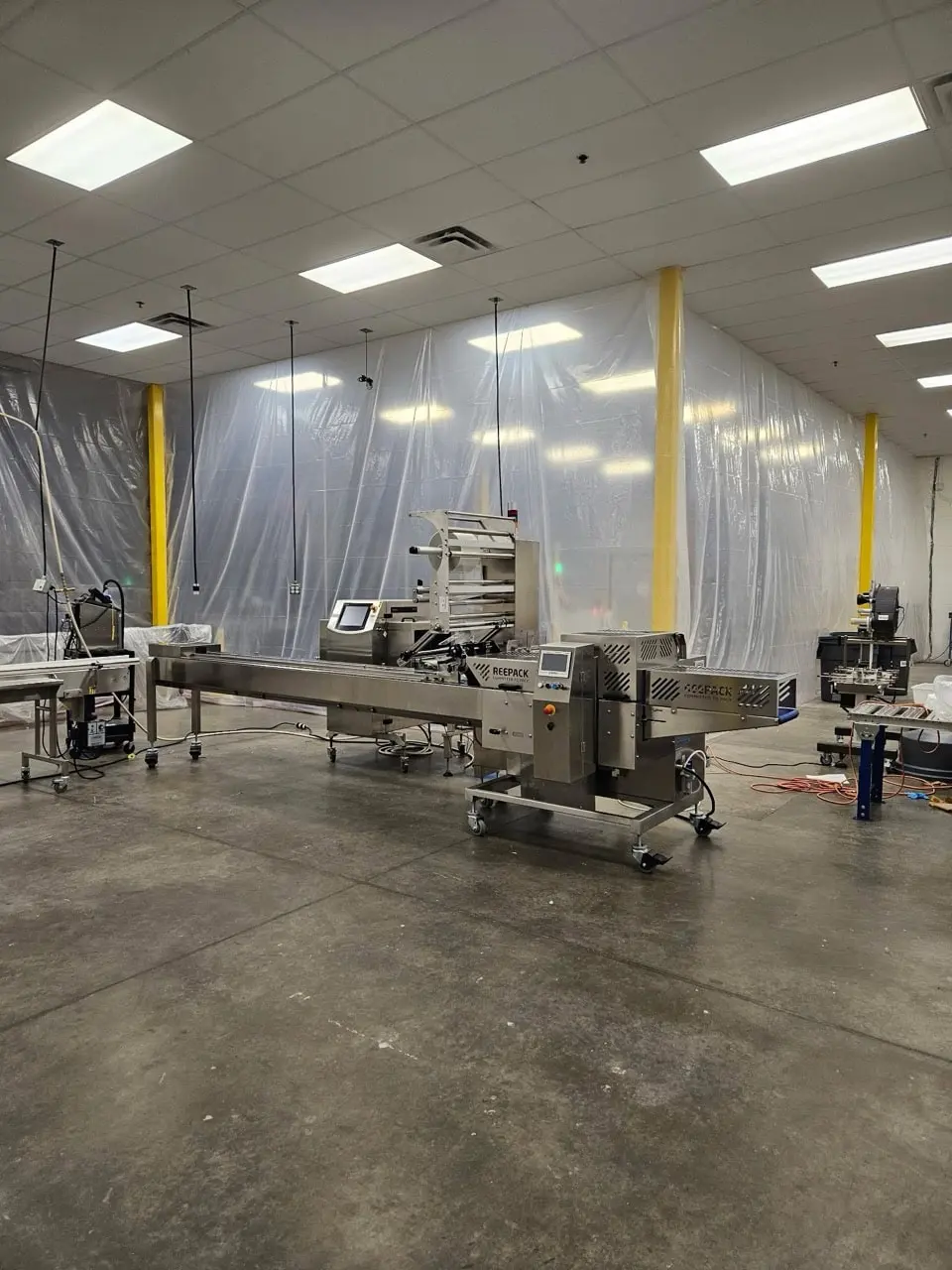

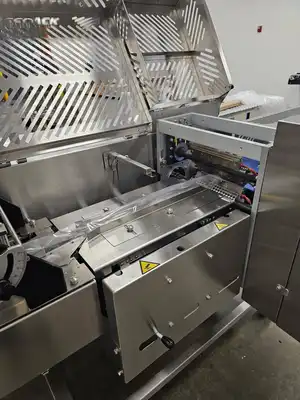

USED 2021 REEPACK REEFLOW 50

Used Reepack ReeFlow 50 Flow Stainless Steel Wrap Machine, 2021 – Right Hand Version, 2-Up

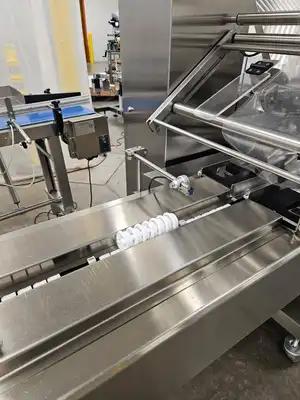

– Standard Infeed (loading area): lugged infeed conveyor in stainless steel
– Eye mark reader for printed films
– No product, no bag function

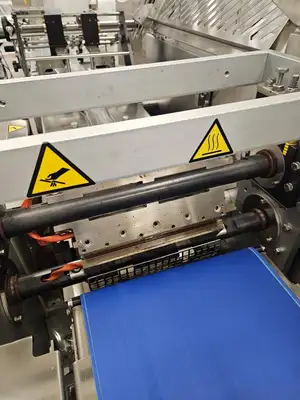

– Longitudinal sealing station with 3 pairs (C-H-F) of rollers for dragging, sealing, and edge-folding

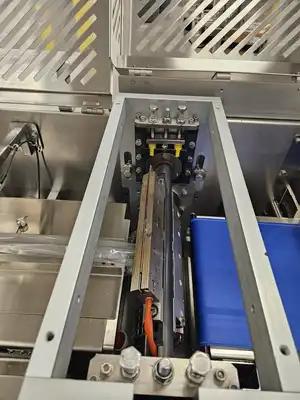

– Rotary motion system with 1 pair of jaws (250mm L, Centrax 140mm) for transversal sealing and cutting
– Motorized product discharge through 900 mm flat belt conveyor

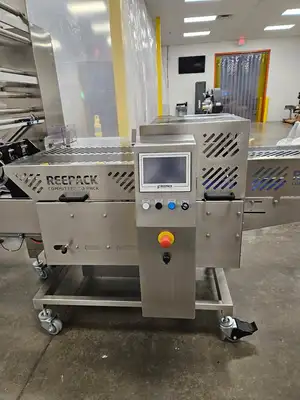

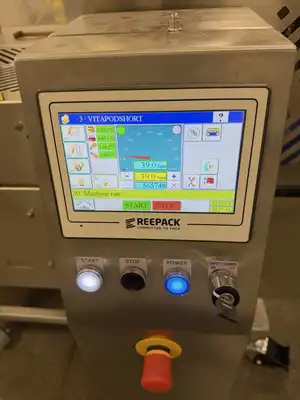

– PLC by CMZ with 7 colored touch-screen display
– Motorization with 3-axis stepless Toshiba (infeed, sealing rollers, jaws) + 2 asynchronous motors (film unwinding, out-feed belt)

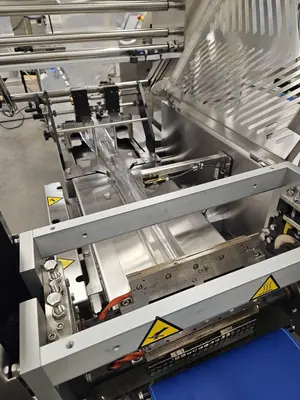

– Adjustable film folding box, maximum product width: 185mm

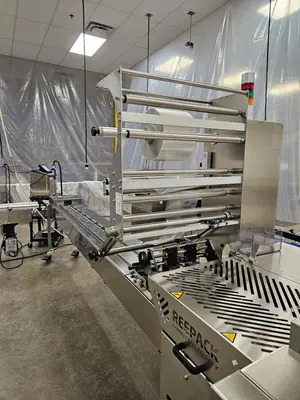

– Film reel holder: top position
– Maximum film reel width: 600mm
– Maximum film reel weight: 40 kg
– Sealing rollers: bottom position
– Sealing roller layout: 3 Pairs C-H-F
– Sealing and cutting jaws: rotary system
– Maximum jaws length: 350mm
– Maximum product height: 85mm
– Standard outfeed conveyor length: 900mm
– Maximum film speed: 40 m/min
– Maximum packaging output: 250 PPM
– Standard motorization
– 230V, 60Hz, 3/PE, Max 25A
Approximately 10K in spare parts included:
– Two sets of knives: a standard serrated style and a V notch
– (3) REE-5003058 Heating Elements
– (3) REE-X10010680 Heating Elements
– (3) REE-5029008 Thermocouple
– (2) REE-X20000270
