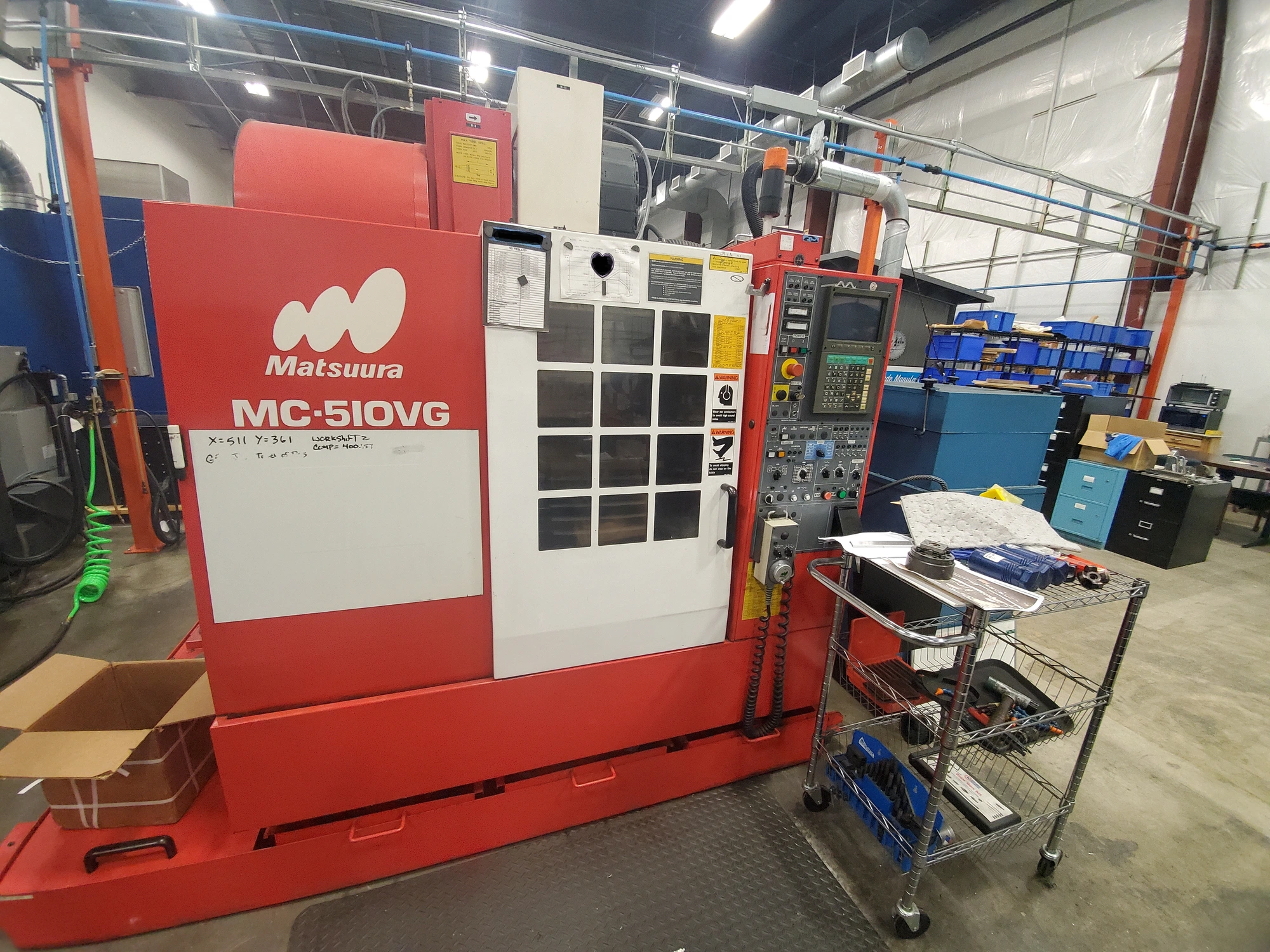

USED 1997 MATSUURA MC-510VG
Overview
Description
1997 Matsuura with 15,000 RPM Spindle, 4th Axis and Yasnac J300B Control
Specifications
| X | 20" | 508 mm |
|---|---|---|
| Y | 14" | 355.6 mm |
| Z | 18" | 457.2 mm |
| Power | 15 hp | 11.2 kW |
| RPM | 15,000 RPM | 15,000 RPM |
| # ATC | 20 | 20 |
| Taper | CAT-40 | CAT-40 |
| Table-W | 14" | 355.6 mm |
| Table-L | 30" | 762 mm |
| # Axis | 4 | 4 |
| Control | CNC (Yasnac J300B) | CNC (Yasnac J300B) |
| Dimensions | 105" x 100" x 109" | 105" x 100" x 109" |
| Weight | 10,000 LBS | 10,000 LBS |
Table Working Surface................................. 30" x 15"
Table Load Capacity................................... 880 LBS
Longitudinal Travel (X-Axis).......................... 20.08"
Cross Travel (Y-Axis)................................. 14.1"
Vertical Travel (Z-Axis).............................. 18"
Feed Rates (X & Y-Axis)............................... .1 - 400 IPM
Feed Rates (Z-Axis)................................... .1 - 400 IPM
Rapid Traverse Rate (X & Y-Axis)...................... 944 IPM
Rapid Traverse Rate (Z-Axis).......................... 708 IPM
Tool Storage Capacity................................. 20
Spindle Horsepower.................................... 15 HP
Spindle Speed Range................................... 60-15,000 RPM
Spindle Taper......................................... CAT-40
Electrics............................................. 240/3/60
Approximate Machine Dimensions........................ 105" x 100"
Approximate Machine Height............................ 109"
Approximate Machine Weight............................ 10,000 LBS
Equipped With
Yasnac J300B CNC Control
15,000 RPM Spindle
Spindle Load Meter
RS-232 Port
4th Axis Ready
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
