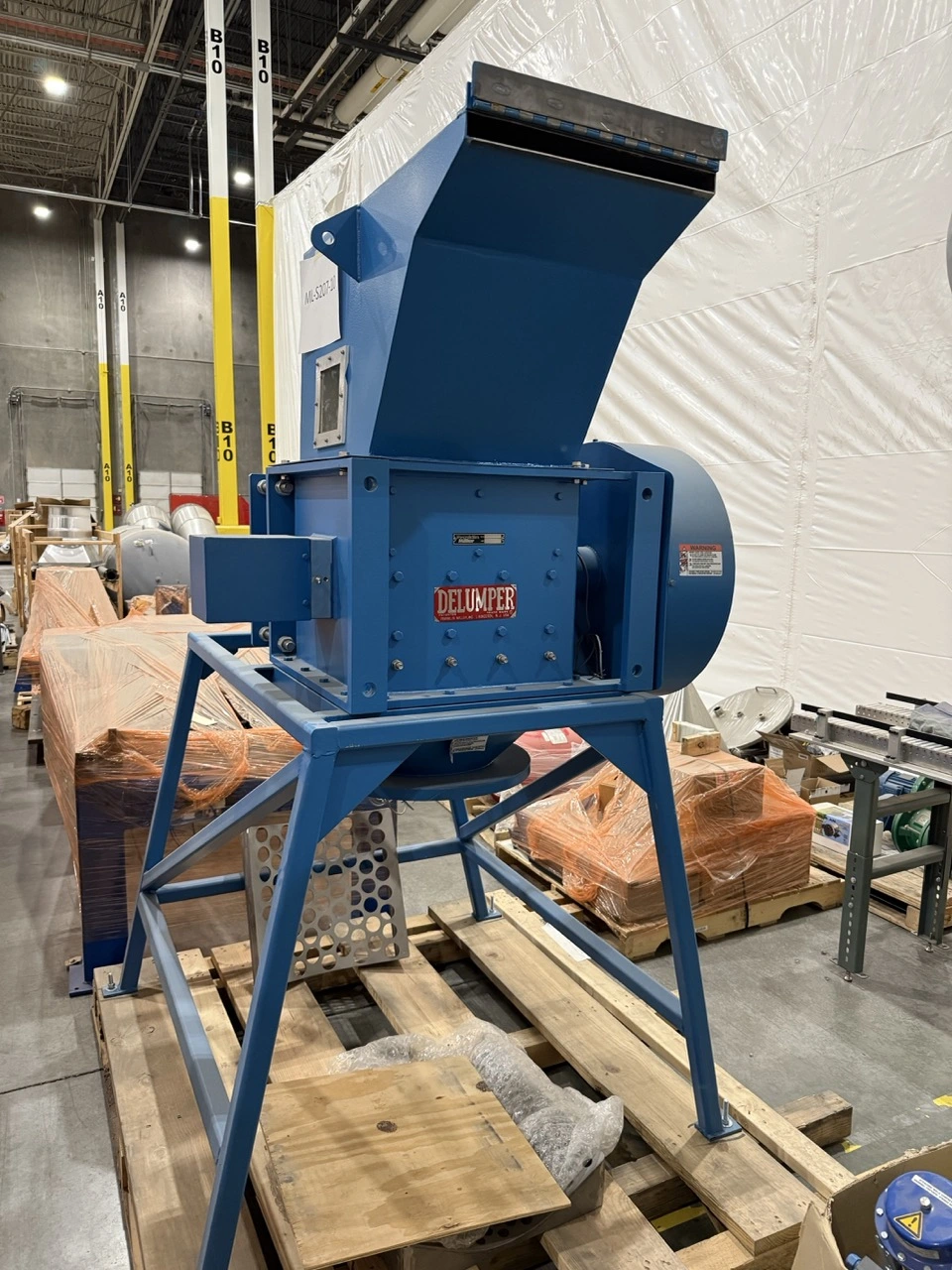

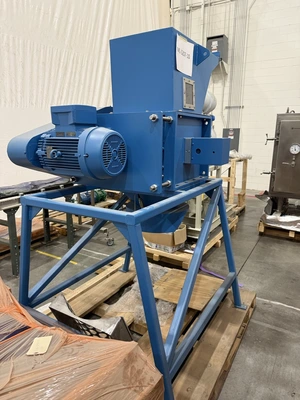

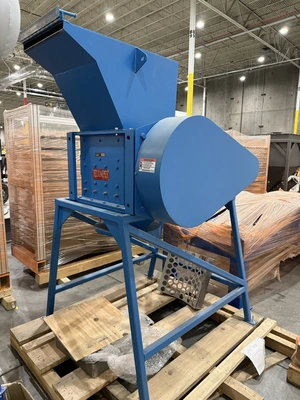

USED 2022 FRANKLIN MILLER DC2020LP

Inlet/Outlet Opening: 20″ x 20″
Body: Heavy structural carbon steel, one-piece housing
Cutting Teeth: High profile; chrome-boride hard-faced alloy steel
Seals: Shaft seals
Grid: Bar grid
Bearings: Heavy-duty outboard bearings
Style: HM style with HM screen (same as rental test unit)
1. Motor & Drive
Motor: 20 HP WEG Explosion-Proof
Classification: Class I, Div. 1
Voltage: 460V, 3-phase, 60 Hz
Enclosure: TEFC
Drive: Belt drive
Motor Plate: Adjustable, carbon steel
Safety Guard: Carbon steel
2. Infeed Hopper (Front-Loaded)
Carbon steel construction
All welds ground
Forward-angled design
Narrow 1″ opening for sheet feed
Side sight glass
Closed top
Modified bottom to feed into process section
3. Rigid Stand
Four-leg design
Approx. 36″ height
Structural carbon steel
Painted FMI blue (2-coat system)
4. Discharge Drum Adapter
For 30-gallon steel drum
Drum flange with gasket (dust control)
Drum positioning plate
Level switch included
Compatible with pallet jack (by others)
Controls & Electrical
Automatic Reversing Controller – Model S260
NEMA 12 cabinet
Variable Frequency Drive (VFD) – provides variable speed + reverse/forward
PLC logic control (Modbus/TCP capable)
IEC starters
LED indicators
Current-sensing auto-reversing program
Local Control Station – NEMA 7
C1D1/C1D2 Groups C & D
C2D1/C2D2 Groups E, F, G
Mushroom emergency stop
Local/Remote/Manual selector
Forward/Reverse selector
Level Sensor
Pepperl & Fuchs ultrasonic level sensor
Auto-stop when drum is full
90% warning light (blink), 100% solid indicator
Factory-set but field-adjustable
Motor Data (WEG 20 HP)
Model: 02018XT3E256T
Horsepower: 20 HP
Speed: 1770 RPM
Voltage: 230/460V
Current: 50A / 25A
Service Factor: 1.15
Frame: 256T
Weight: ~393 lbs
Torque: 59.3 ft-lb
Enclosure: TEFC (IP55)
Duty: Continuous
Paint Specs
Polyamide epoxy coating
Color: Franklin Miller Blue
1 coat primer / 1 coat topcoat
SSPC-10 near-white blast prep
460 V / 3 Phase / 60 Hz
