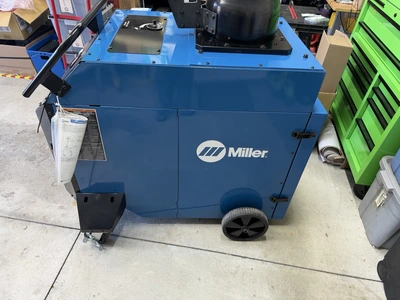

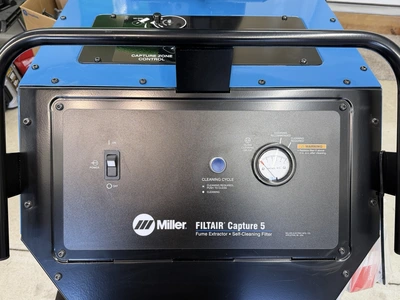

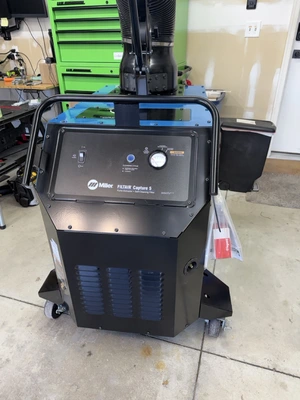

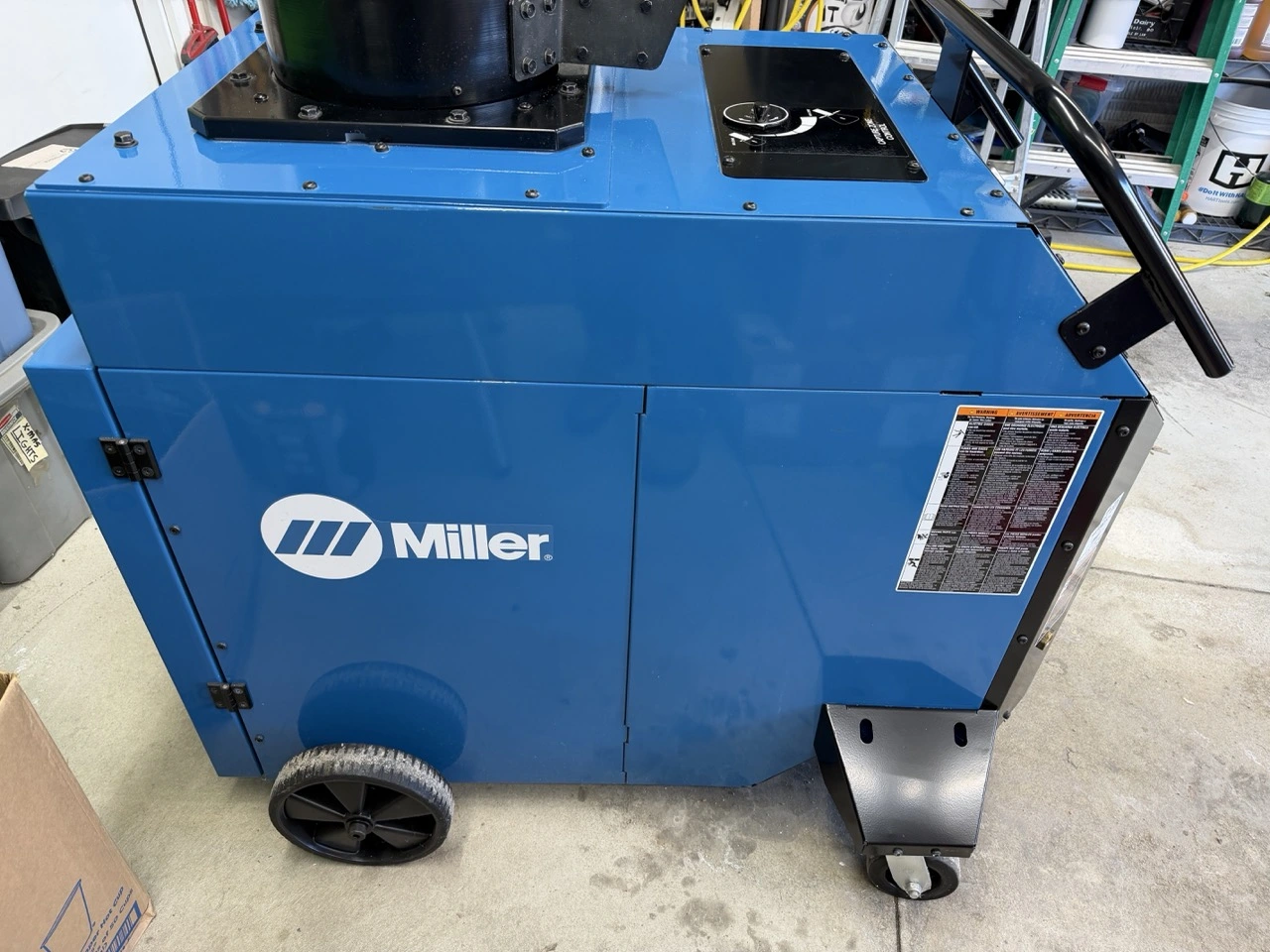

Miller FILTAIR Capture 5 Portable Fume Extraction System with 10′ Extraction Arm:
Industrial Applications: Heavy equipment manufacturing, Fabrication, Maintenance and repair operations
Processes:
– Stick (SMAW)
– Flux-cored (FCAW)
– MIG (GMAW)
– TIG (GTAW)
Filter Media: 452 sq. ft. (42 sq. m)
Accu-Rated™ Airflow: Measured at the hood: 900 cfm (425 L/sec.)

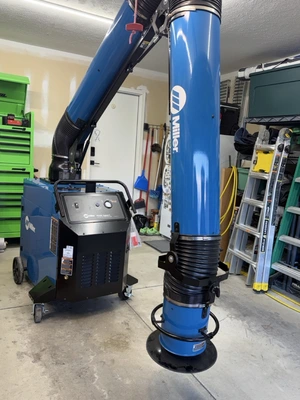

Extraction arm: 10′ length, 10″ diameter
Sound Level at 5 ft. (1.5 m): Approximately 77 dBA
Motor Specifications: 3 hp, 3,450 rpm

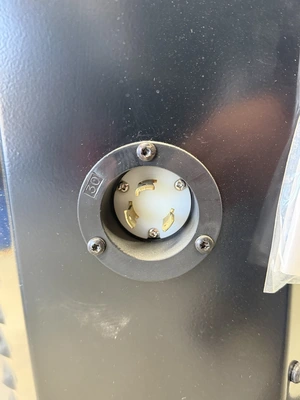

Power requirements: 208-230V, 1 Ph, 60 Hz
Dimension:
H: 43 in. (1,092 mm)
W: 36 in. (915 mm)
D: 48 in. (1,219 mm)
Net Weight 660 lb. (300 kg)
