USED 1997 NEFF D12-5M
Overview
Equipped With
PRELIMINARY SPECIFICATIONS;

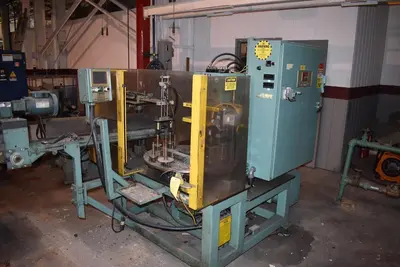

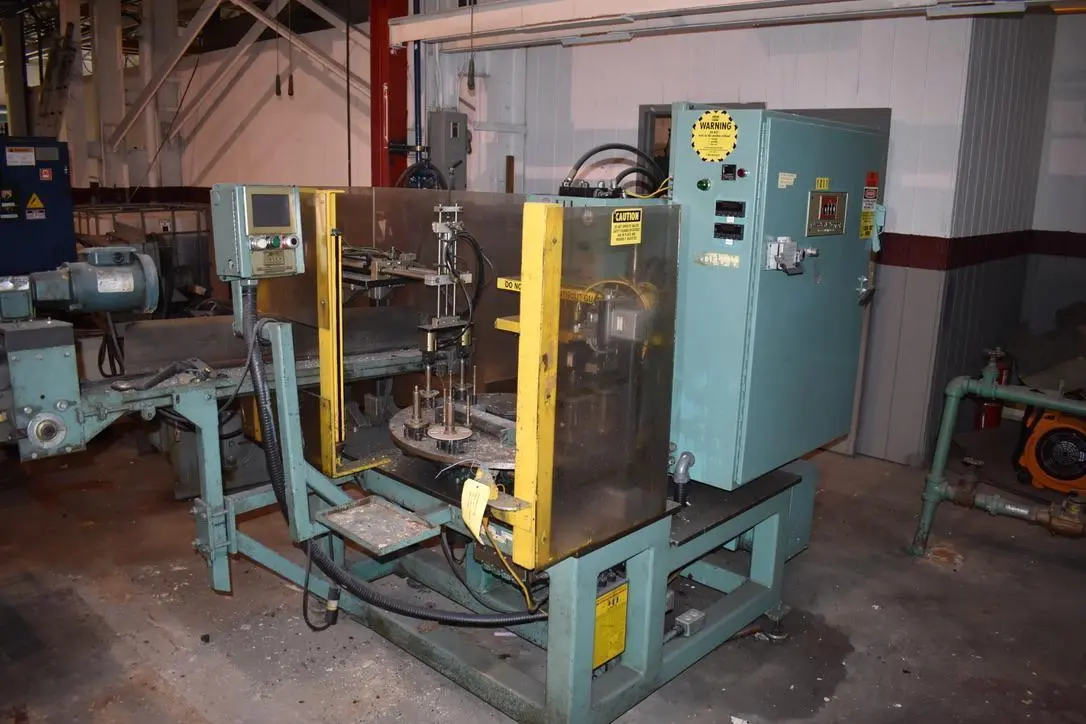

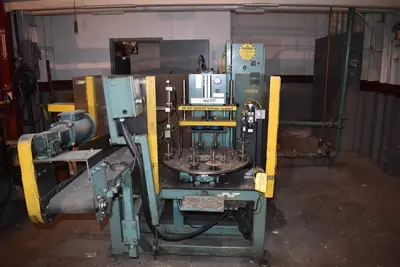

NEFF HYDRAULIC C-FRAME PRESS
MODEL D12-5M
Year 1997
12 TON CAPACITY
0-7" STROKE
18" DAYLIGHT OPENING
7" THROAT
3.25" RAM DIAMETER
30" FROM FLOOR TO BED
10" X 21" RAM
30" DIAMETER ROTARY TABLE
SPEEDS
240 IPM ADVANCE
90 IPM PRESS
146 IPM RETURN
VOLTAGE:
575V / 3PHASE / 50/60 CYCLES
EQUIPPED WITH MOTOR AND CONTROLS
5 HP MOTOR

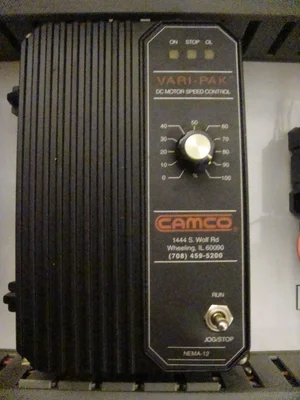

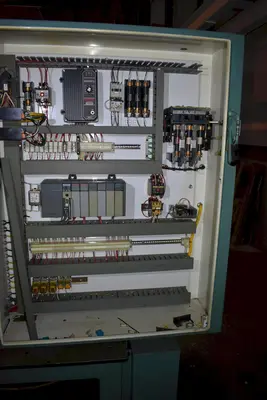

ATC CONTROLS

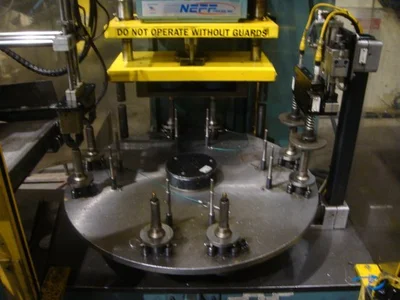

ATC 4-STATION ROTARY INDEX TABLE 30" DIAMETER
UNLOAD CONVEYOR MOTORIZED
STi LIGHT CURTAINS
12 GALLON HYDRAULIC TANK
MAIN RAM CYLINDER WITH 2 GUIDES
Estimated Weight 3,500LBS
Approx. Dimensions 80" LR x 110" FB x 76" H
The Rotary Dial Table & Belt Conveyor is Removable to use press as standard C Frame Gap Hyd Press!
Available For Inspection, Available Immediately!
Specifications Subject To Verification; Subject To Prior Sale & Price Change
