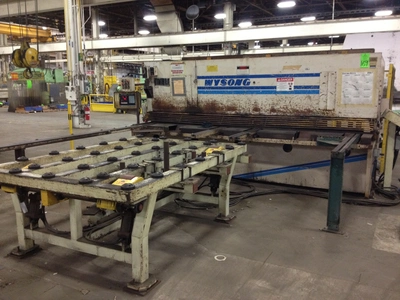

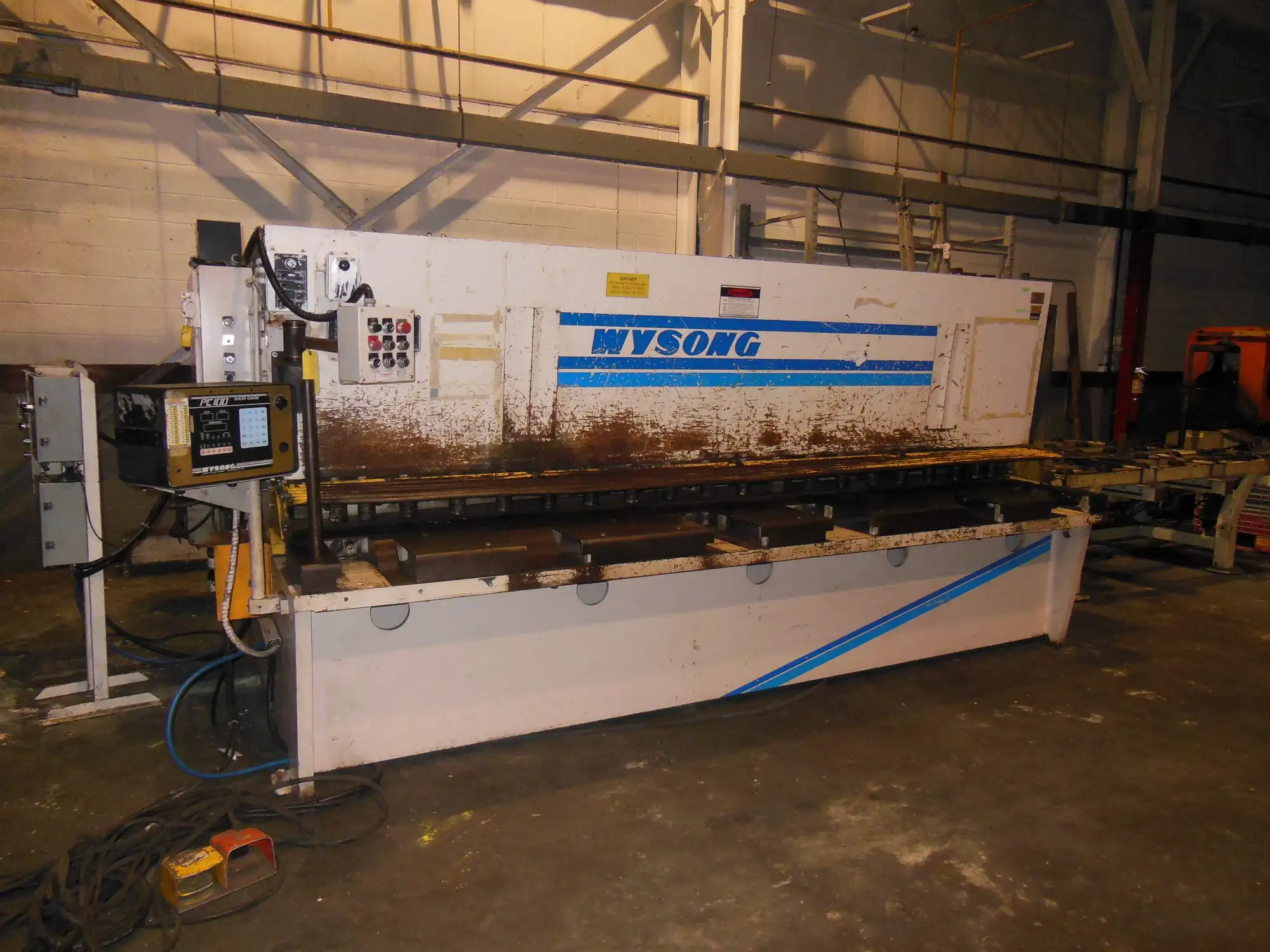

USED WYSONG H-5012

STANDARD CATALOG SPECIFICATIONS:
WYSONG HYDRAULIC POWER SQUARING SHEAR
MODEL H-5012
S/N H7-107
1/2"      CAPACITY MILD STEEL
12'        CUTTING LENGTH
13'5"    OVERALL LENGTH OF BED
48"      3-AXIS PROGRAMMABLE BACK GAUGE
36"      PASS HEIGHT
EQUIPMENT AND FEATURES

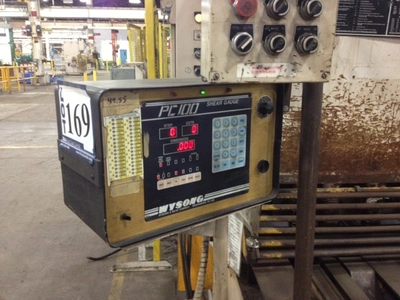

48" FRONT OPERATED 3-AXIS PROGRAMMABLE BACK GAUGE,MODEL PC-100
FUJI MODEL FUR-K7S-UX PROGRAMMABLE INVERTER

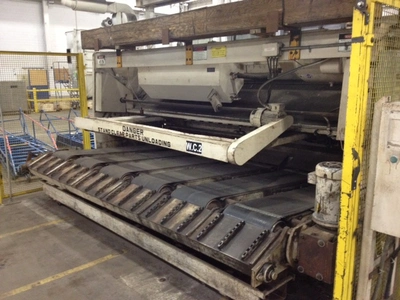

MET-FAB MOTORIZED CONVEYOR STACKER SOLID STATED CONTROLS
NSI POWERED 8' FRONT ROLLER LOADING TABLE
12' SUPPORT ARM
70"SUPPORT ARM
VARIOUS SUPPORT ARMS
EXTRA BLADES AVAILABLE WITH SHEAR (Included with purchase of the machine)
MOTOR & CONTROLS
460/3/60 CYCLES
OVERALL DIMENSIONS:
170" OVERALL LENGTH
81" TALL
84" FB
34,000 APPROX WEIGHT, NOT INCLUDING TABLES.
COMPLETELY LOADED WITH ALL OPTIONS. THE 3 AXIS PROGRAMMABLE BACK GAUGE IS A SIMPLE YET POWERFUL CONTROL.
CAPABLE OF MULTI CUTS PER JOB AS PROGRAMMED OR A SIMPLE ONE CUT OPERATION.
THIS MACHINE IS A GOOD ADDITION TO ANY FAB SHOP.
Specifications Subject To Verification; Subject To Prior Sale and Price Change
We encourage your personal inspection of this machine, available immediately!
