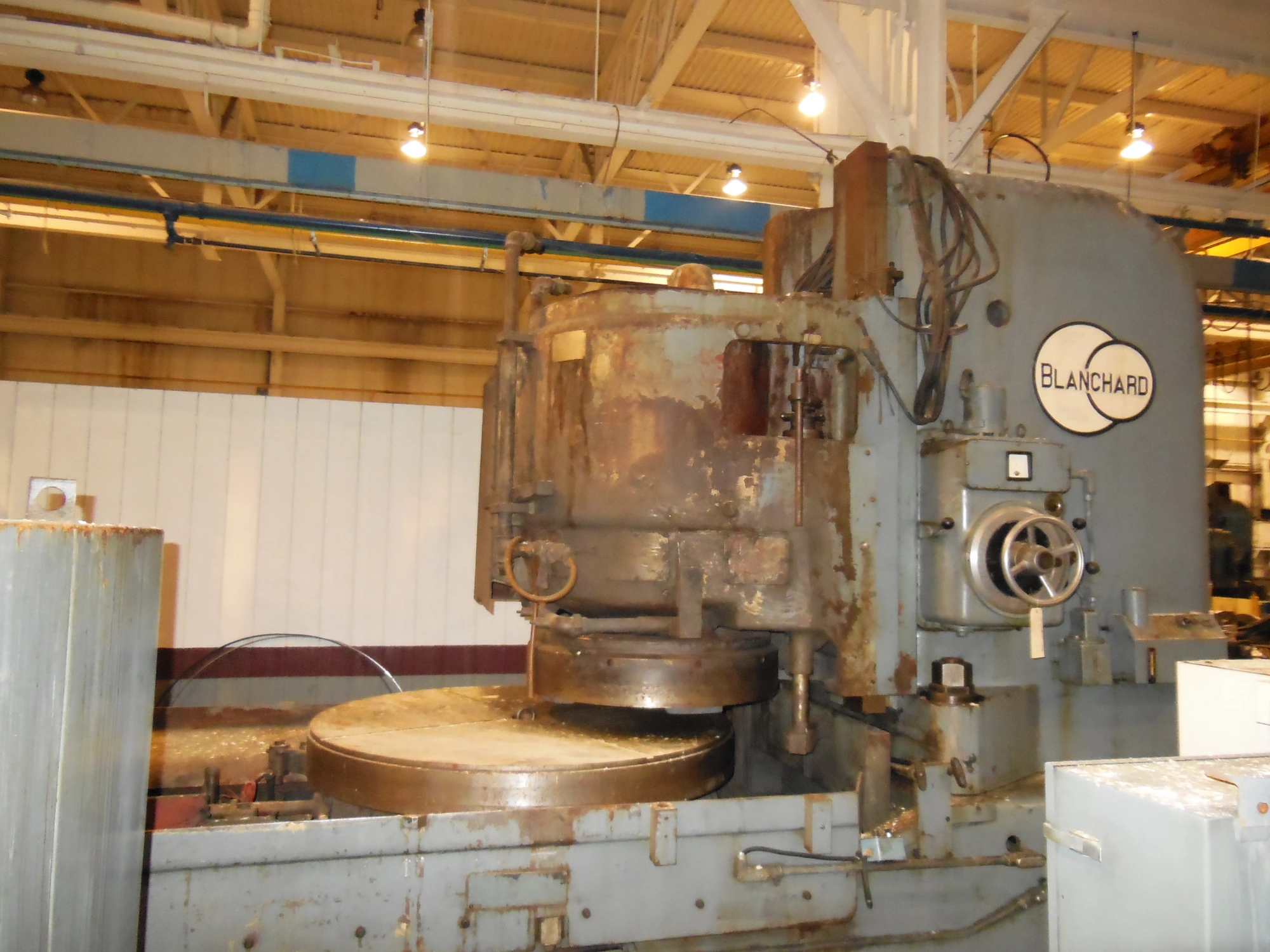

USED 1961 BLANCHARD 32-60
Overview
Equipped With
PRELIMINARY SPECIFICATIONS
BLANCHARD ROTARY SURFACE GRINDER
MODEL 32-60
YEAR 1961
STANDARD SPECIFICATIONS
RANGE
72" SWING
30" VERTICAL RANGE OVER CHUCK WITH NEW WHEEL SEGMENTS
KVA REQ'D
75 HP - 95 KVA
WORK TABLE
60" DIA. MAGNETIC CHUCK (BLANCHARD ONE PIECE STEEL MAGNETIC CHUCK)
MAX. UNBALANCED WORK LOAD TO 10,000 LBS
FEED
VERTICAL DOWN FEED BY HAND OR POWER
POWER FEED VARIABLE FROM .004" TO .080" PER MINUTE
COOLANT SUPPLY
EXTERNAL COOLANT SUPPLY REQUIRED 150 GPM APPROX. FLOW RATE
STANDARD MOTORS
75 HP GRIND
10 HP CHUCK ROTATION
2 HP HEAD TRAVERSE
35 LB/FT TORQUE TABLE TRAVERSE
1/3 HP FEED
EQUIPMENT & FEATURES
DRESSER
32" (6) SEGMENTED CHUCK
75 HP SPINDLE MOTOR
30" VERTICAL RANGE
BIJUR LUBE
STAND ALONE ELECTRICAL PANEL
DRY BASE MACHINE
72" SWING INSIDE GUARDS
APPROX. FLOOR SPACE
186" X 84" X 134" H
ELECTRICAL PANEL 63" W X 78" H X 21" DEEP
APPROX. WEIGHT
36,000 LBS WITH STANDARD EQUIPMENT
BLANCHARD BEING SOLD AS RECONDITIONED PER THE CUSTOMER SPECIFICATIONS
CALL FOR EARLY INSPECTION
