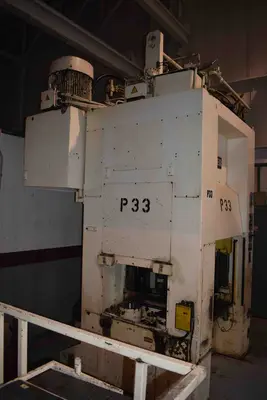

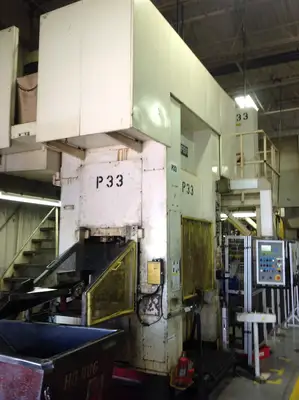

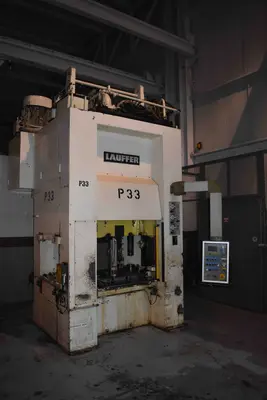

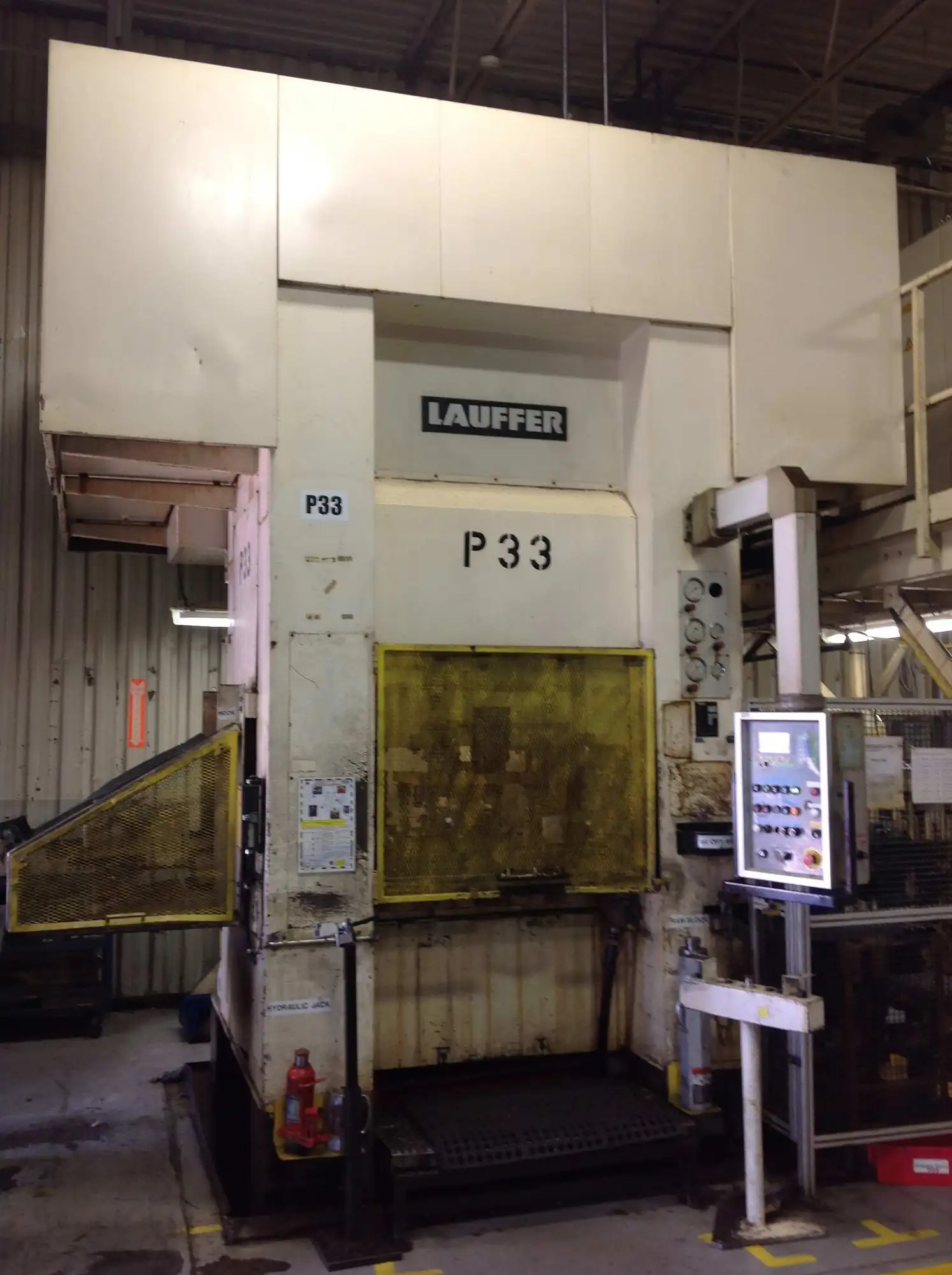

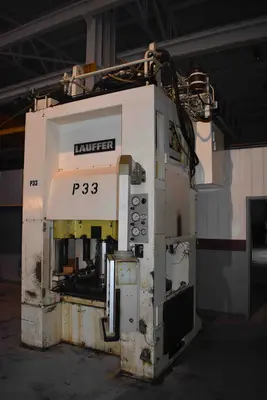

USED 1993 LAUFFER RPN 320

PRELIMINARY SPECIFICATIONS
LAUFFER STRAIGHT SIDE HYDRAULIC PRESS
MODEL: RPN 320

YEAR: 1993

FLOOR STANDING

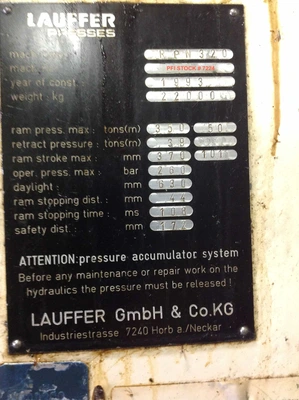

320 TONS (M) CAPACITY
39 TONS (M) RETRACTING PRESSURE
14.5" STROKE (370 mm)
24.8" DAYLIGHT (630 mm)
1.73" RAM STOPPING DISTANCE

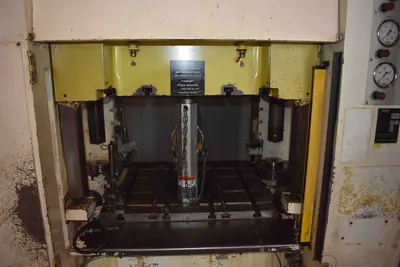

39.50" LR x 31.50" FB BED AREA
33" WIDE WINDOWS

260 BAR MAX. OPERATING PRESSURE

SPEEDS

940 inch/min FAST ADVANCE  (400 mm/s)

90 inch/min PRESS (38 mm/s)

800 inch/min RETURN (338 mm/s)

EQUIPPED WITH

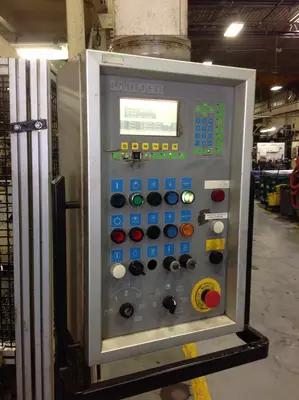

PRESS CONTROL PANEL
OPERATOR T-STAND
WINDOWS

APPROX. DIMENSIONS PER DRWGS

APPROX. O.A.  AREA 144"LR X 120" FB X 168" H

APPROX. FOOTPRINT AT BASE 81" LR X 78" FB

FLOOR TO TOP OF PRESS 168" H

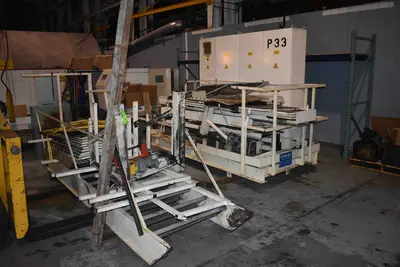

Plant had Electrical Panel on Balcony (Balcony Included)
Press has been Cleaned, Available for Inspection, Available Immediately!!
Specifications Subject To Verification; Subject To Prior Sale and Price Change
We encourage your personal inspection of this machine, available immediately!
