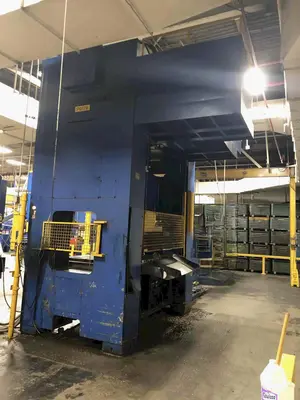

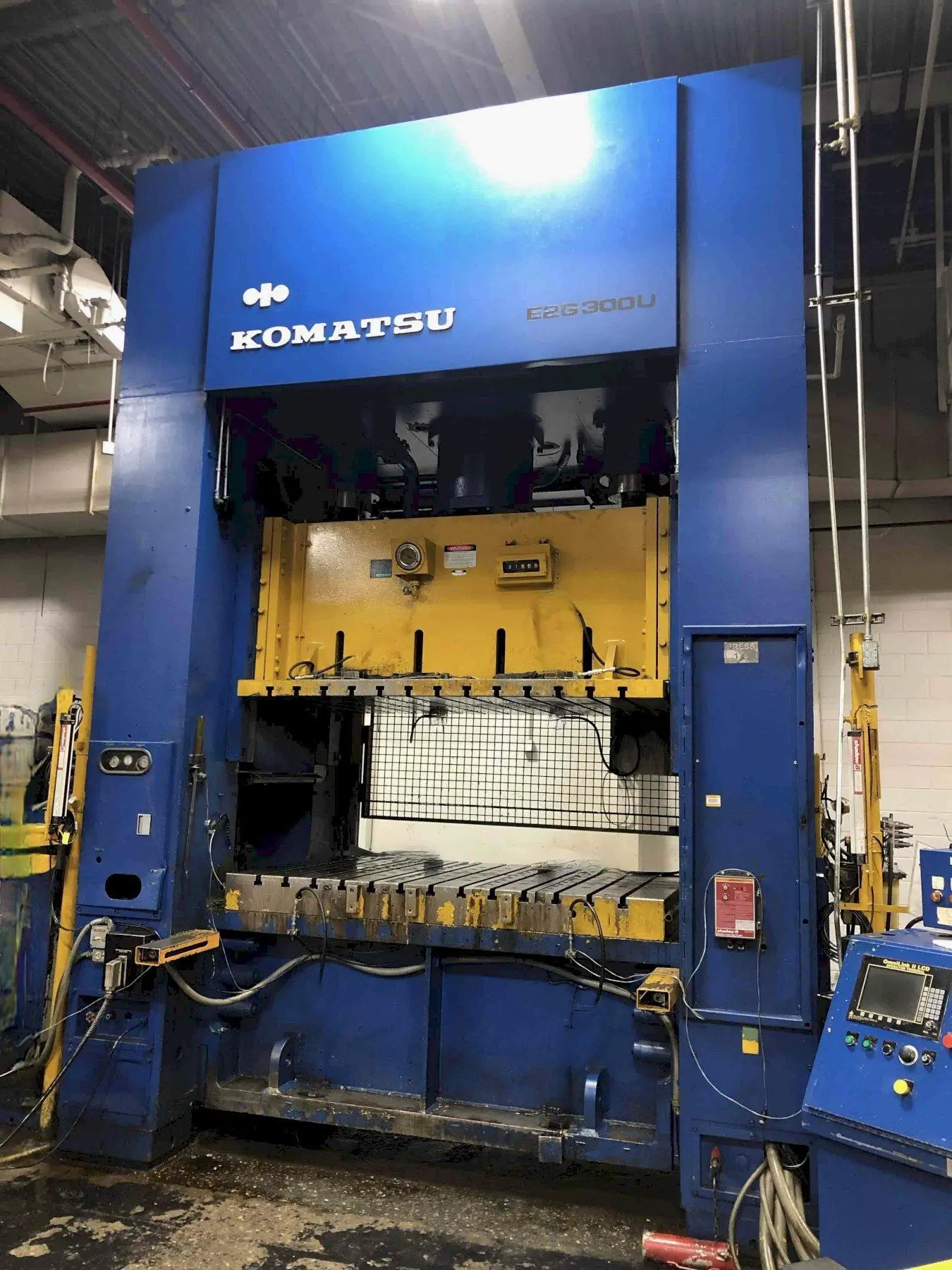

USED 1988 KOMATSU E2G300U

PRELIMINARY SPECIFICATIONS

KOMATSU STRAIGHT SIDE PRESS

MODEL: E2G300U

S/N: 10092

YEAR: 1988


300 TON CAPACITY

14.2" STROKE (360 mm)

28.3" DIE HEIGHT (S.D.A.U.) (719 mm)

10.2" SLIDE ADJUSTMENT  (260 mm)

86.6" LR X 55.1" FB SLIDE AREA (2200 mm X 1400 mm)

86.6" LR X 55.1" FB BOLSTER AREA (2200 mm X 1400 mm)

12-40 SPM VARIABLE

EQUIPPED WITH

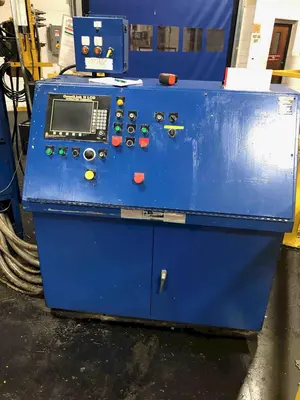

KOMATSU PRESS CONTROL CONSOLE

OMNILINK II PRESS OPERATOR TERMINAL
HYDRAULIC OVERLOAD (RAM)

PRESS CONTROL T-STAND

SHADOW 8 WINTRISS LIGHT CURTAINS

36" W X 40" H WINDOWS

7"  THICKNESS T-SLOTTED BOLSTER

T-SLOTTED SLIDE BOLSTER
PRESS MANUAL
OMNILINK II MANUAL

APPROX. O.A. DIMENSIONS 12' LR X (7' FB AT BASE), X (12'6" AT TOP) X 18'-6" H

ESTIMATED WEIGHT 125,000 LBS

CAME OUT OF RUNNING SERVICE, WELL MANINTAINED!

AVAILABLE FOR INSPECTION UNDER POWER, CALL FOR APPOINTMENT!

**Specification Subject To Verification: Subject To Prior Sale & Price Change!

We encourage your personal inspection of this machine, available immediately!
