PRELIMINARY SPECIFICATIONS

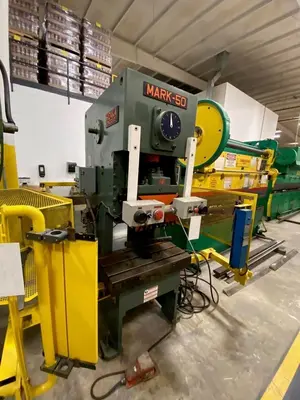

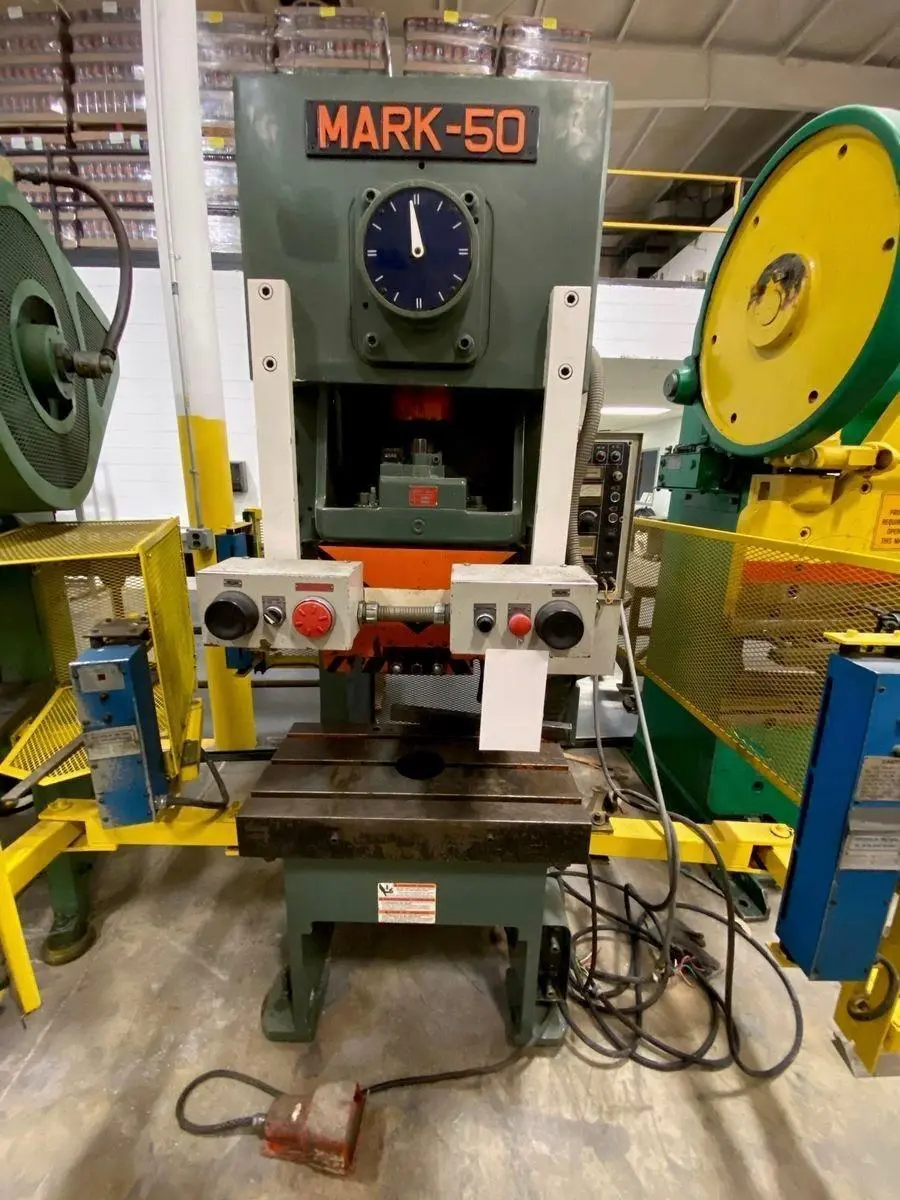

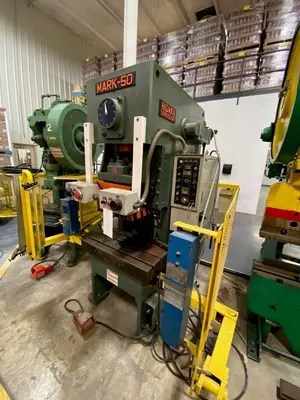

HELLER SUTHERLAND GAP FRAME PRESS SINGLE CRANK
MODEL: MARK-50
S/N: 0101
50 TON CAPACITY
4.3" STROKE
10.6" DIE HEIGHT
2.3" SLIDE ADJUSTMENT
33" LR X 17.3" FB BED AREA
16.9" LR X 13.7" FB SLIDE AREA
50-85 SPM VARIABLE
EQUIPPED WITH:

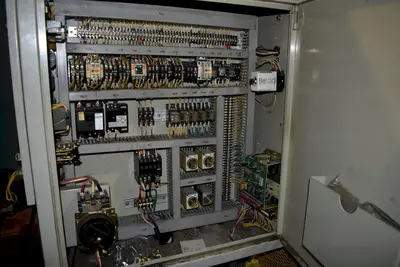

PRESS CONTROLS
TOLEDO INTEGRATED SYSTEMS BRAKE MONITOR
INCH, SINGLE, & CONTINUOUS OPERATION SWITCH
T-SLOTTED BOLSTER & SLIDE
OPERATOR PALM BUTTONS
OPERATOR FOOT PEDAL
TRIAD LIGHT CURTAINS
SAFETY GUARDING
LUBE SYSTEM
LEVEL PADS
7.5 HP MAIN MOTOR
CLEAN PRESS, WELL MAINTAINED, CALL FOR INSPECTION UNDER POWER!
AVAILABLE IMMEDIATELY!
Specifications Subject To Verification; Subject To Prior Sale & Price Change
We encourage your personal inspection of the machine!
