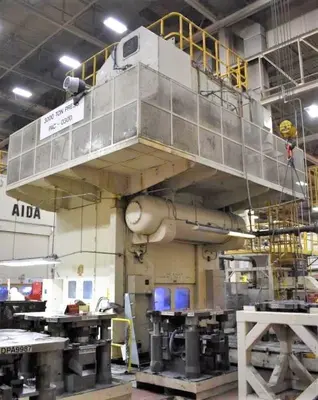

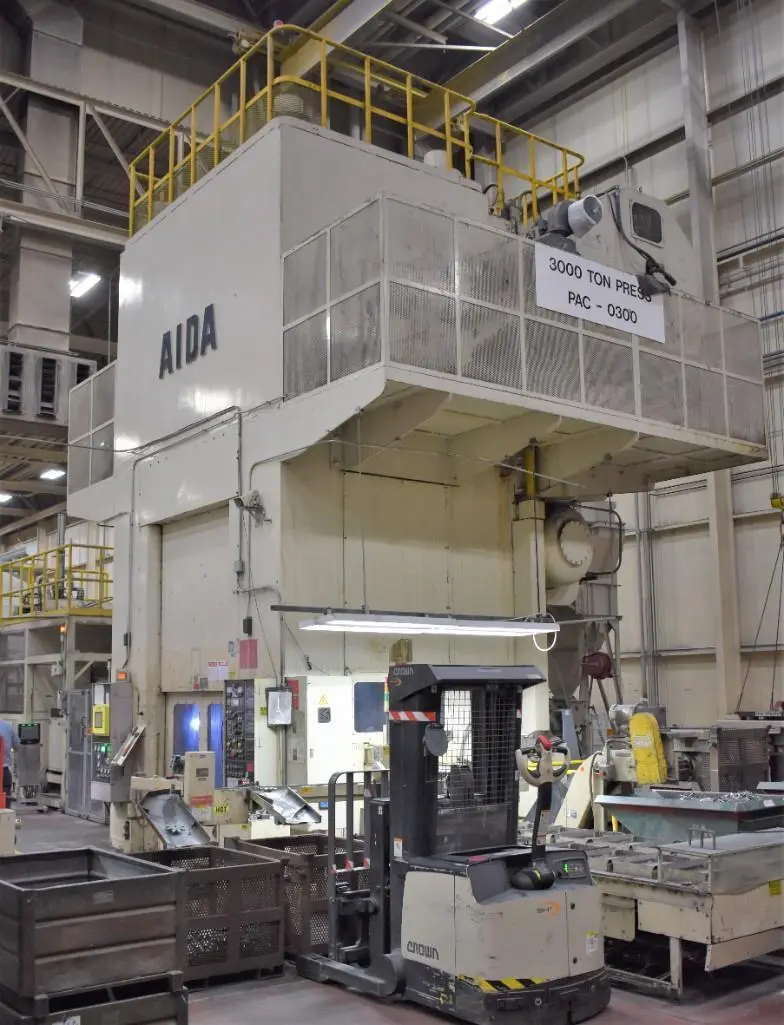

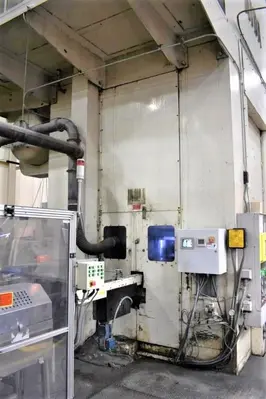

USED 1998 AIDA PK-3000

Preliminary Specifications
Aida Knuckle Joint Press
Model: PK-3000
Year 1998
3000 Ton Force Capacity (29400 kN)
9.84" Slide Stroke (250 mm)
44.09" Die Height (1120 mm)
1.18" Slide Adjustment (30 mm)
47.24" LR x 47.24" FB Bolster Area (1200 mm X 1200 mm)
47.24" LR x 47.24" FB Slide Area (1200 mm X 1200 mm)
25-40 SPM Variable

BED KNOCKOUT SPECIFICATIONs
TYPE: MECHANICAL TYPE
CAPACITY: 735 kN (75 tf) AT TOTAL STAGE
STROKE: 75 mm
DIAMETER OF KNOCKOUT PIN: Ø80
ATTACHMENT OF PIN LIFTER: IN COMMON WITH BED KNOCKOUT PIN
CAPACITY OF PIN LIFTER: 9.8 kN (8 tf ) (1)

TRANSFER FEEDER SPECIFICATIONS

TYPE: 2—AXIS TRANSFER DEVICE
FEED STROKE: 200 mm
CLAMPING STROKE PER ONE SIDE: 100 mm
INSIDE DISTANCE OF FEED BARS: 250 mm AT CLAMP
FEED DIRECTION: LEFT TO RIGHT
HEIGHT OF FEED BAR BOTTOM FACE: 711 mm (from

BOLSTER)
Height Above Floor Approx. 8600 mm (28' -2")
Approximate Total Weight 370 T.  Crown # 190,000 LBS, Bed 170,000 LBS, Slide 110,000 LBS,

In Plant Under Power, Available For Inspection by Appointment
See Attached GA Drawing for Additional Information
Specifications Subject To Verification; Subject To Prior Sale & Price Change
