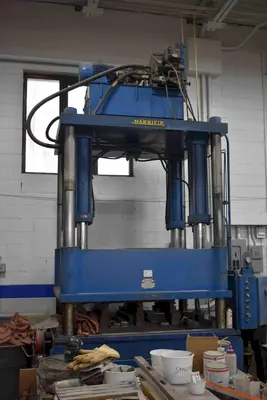

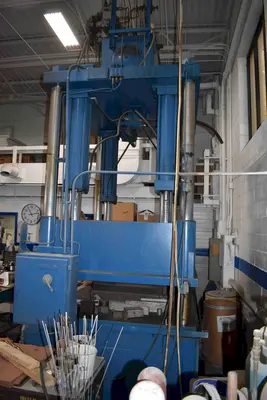

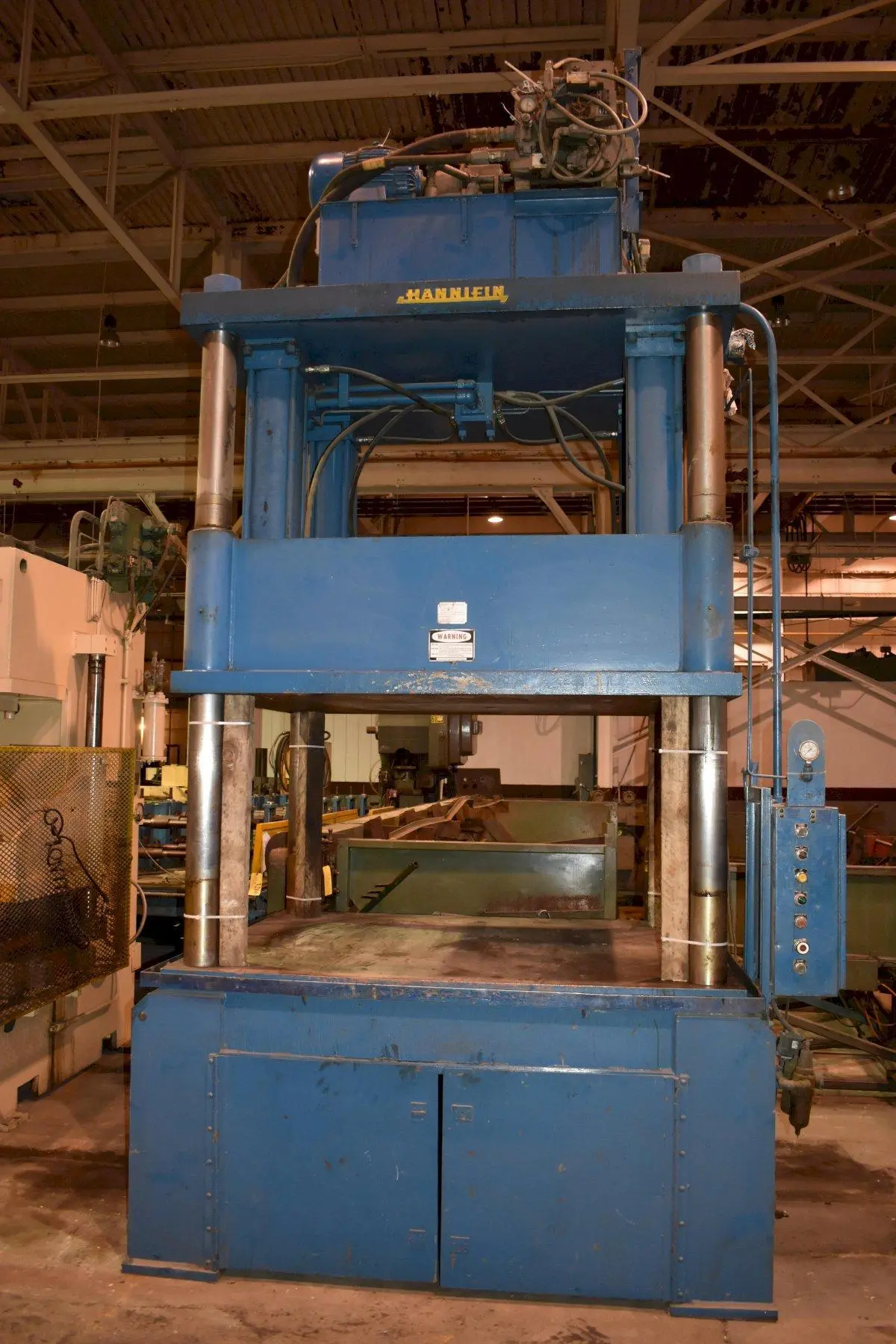

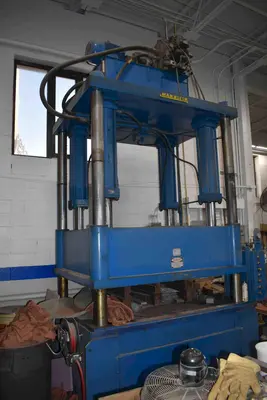

USED HANNIFIN 4 POST
Overview
Specs
Tonnage: 230 tons
Stroke: 30 inches
Daylight: 35 inches
Bed Width: 62 inches
Bed Length: 78 inches
Equipped With
Preliminary Specifications
250 Ton Hannifin 4 Post Hydraulic Down Acting Press
Floor Standing
250 Ton Capacity
30" Stroke
41" Daylight open
11" Closed Height
78" LR x 62" FB Bed
64" LR x 48" FB Between Post Opening
Equipped with:
Recently was upgraded with a new Air over Pressure Hydraulic Pump to ensure Tonnage and High Pressure relief safety valve.

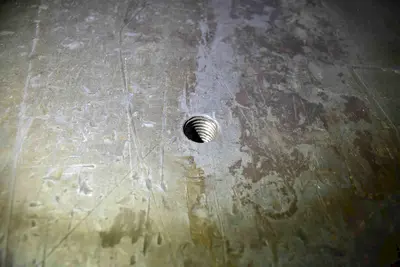

Bolster has (74) Tapped Holes on 6" Center to Center Pattern
Ram has (90) Tapped Holes on 6" Center to Center Pattern in same location as Bolster
Top Mounted Motor, Hydraulic Pump, & Tank

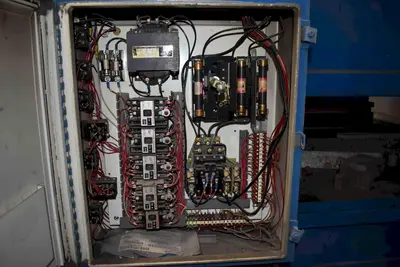

Press Mounted Operator Controls
(4) Down Acting Cylinders 7" Bore, 30" STR, 5" DIA. Rod,
7.5 HP Motor, 1800 RPM
Approximate Speeds
Down-Advance 73 in/min.
Down-Feed 37 in/min.
Return 76 in/min.
Approx. Dimensions 96" LR x 72" FB x 180" H
Estimated Weight 28,000 lbs
Available Immediately, Came out of Running Service, Used for Die Clay Molds!
Specifications Subject To Verification; Subject To Prior Sale & Price Change
