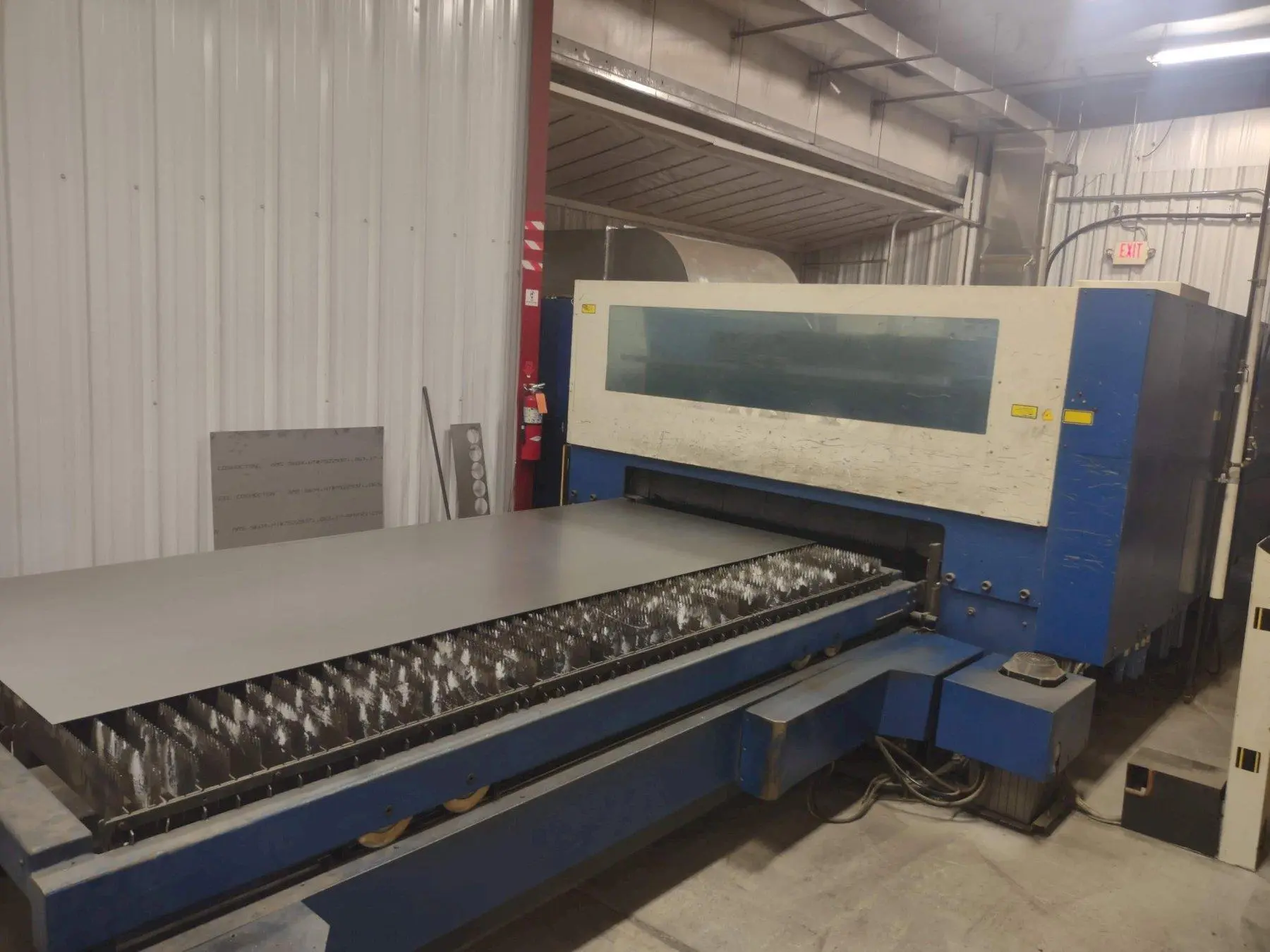

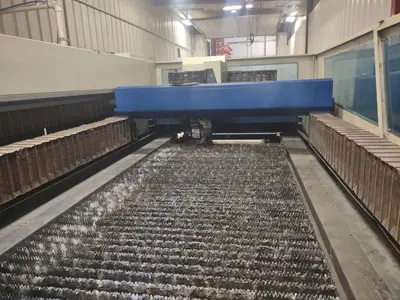

USED 2006 TRUMPF TC L 3030

Preliminary Specifications

Trumpf TC L 3030 TLF Co2 Laser
Year 2006


4000 Watt
60"x120" Table Size
Automatic Pallet Shuttle System


Hours
38,329 Laser On Hours
17,447 Beam On Hours


Technical Catalog Specifications
Average Positional Spread



+/- 0.001"
Laser Output


4000W
Max Material Thickness


0.787"


X-Axis Max Travel



122.20"
Y-Axis Max Travel



62.20"
Z-Axis Max Travel



4.80"


X-Axis Working Range

118.11"
Y-Axis Working Range

59.06"
Z-Axis Working Range

4.53"


X-Axis Overshoot Range

-0.630" to 3.465"
Y-Axis Overshoot Range

-0.748" to 2.401"
Z-Axis Overshoot Range

-0.079" to 0.630"


Positioning Accuracy

+/- 0.004"
Smallest Programmable Increment

0.0004"


Dimensions (L x W x H)


385.82" x 208.66" x 78.74"
Approx. Total Weight w/ TLF Laser     25,300LBS


Equipped With
TRUMPF CNC Control Based On SEIMENS SINUMERIK 840D
4000 Watt Resonator
Trumpf Liftmaster Automatic Pallet Shuttle System


In plant, available immediately, plant maintenance record since 2012
Specifications Subject To Verification; Subject To Prior Sale and Price Change
