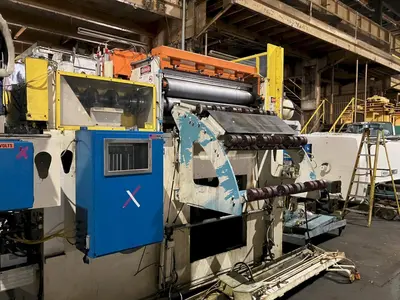

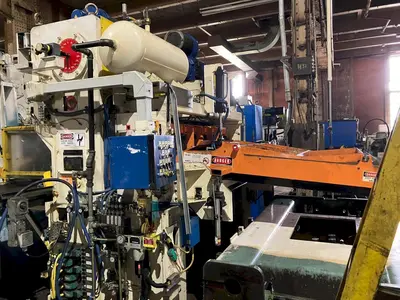

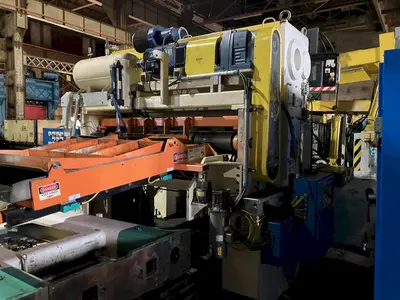

Preliminary Specifications

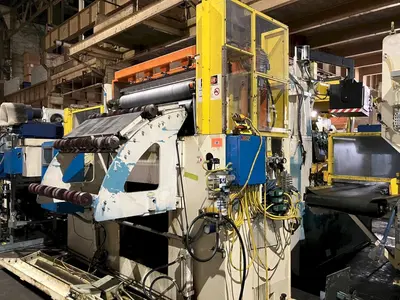

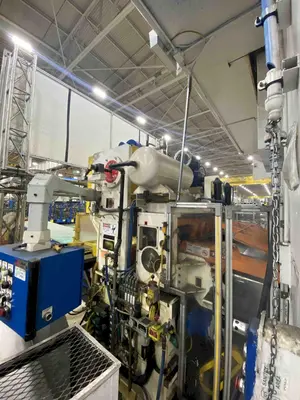

Automatic Feed Company Coil Feed Line
Model: 504872
Year: 2000
50,000 lbs Coil Weight Capacity
48" Max. Width Capacity
72" Coil O.D.
10" Min. Width Capacity
.125" Max. Thickness at 48"
.177" Thickness at 24"
.020" Min. Thickness at 48"
2" - 36" Feeding Length
60 SPM
100 Feet per/min
Feeding Angle Adjustable
Right to Left Feed Direction
Controls - Unico Drive System, A/B PLC, IBM, Wonderware Operator I/F
Material: CRS, HD Galvanized, Electro Galvanized
Line Consist of the Following

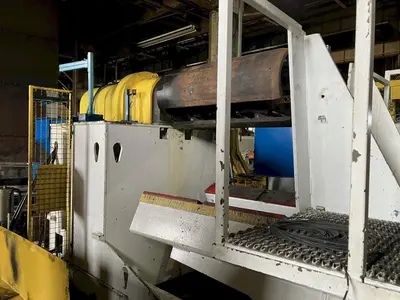

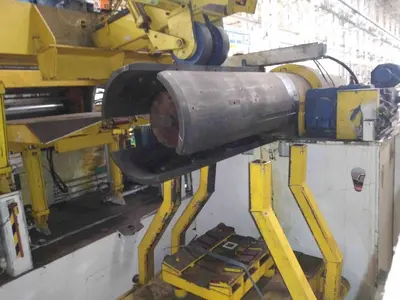

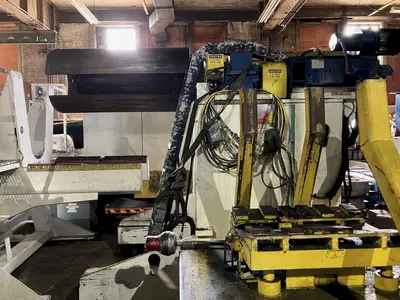

Reel Uncoiler & Coil Car
Peeler / Hold Down
Peeler Table
Straightener Exit Pinch Roll / Crop Shear
Scrap Tub

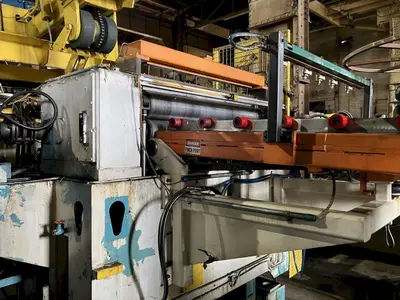

Straightener (Year Mfg 2012)
(7) Straightening Rolls, (3) Upper Rolls, (4) Lower Rolls
Thread Tables
Servo Feeder
Exit Feed Scrap Chopper (Year Mfg 2012)

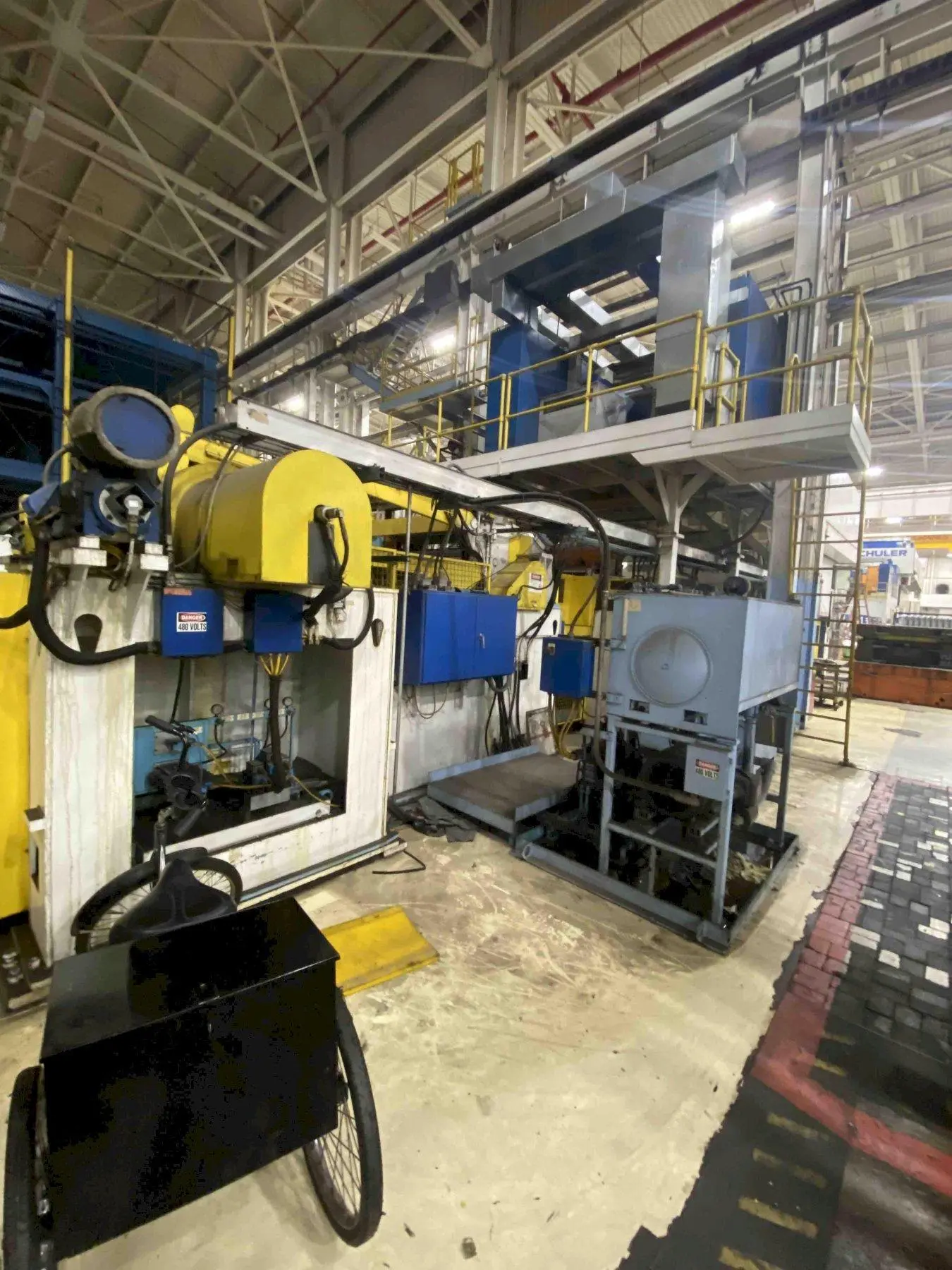

NOTE: The "Balcony/Platform" shown in pictures/drawings NOT included
Feed Line Came Out of Running Service
LINK BELOW with Line Layout / GA Drawing of coil feed line (See Link Below Pictures on Quote)
Specifications Subject To Verification; Subject To Prior Sale & Price Change
