Preliminary Specifications:
Year:
2003
Control Type:

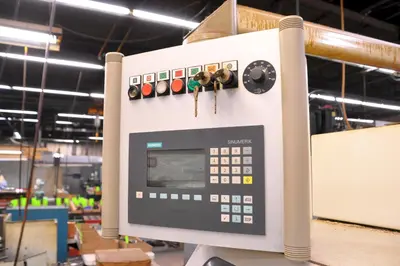

Siemens Sinumerik OP030 CNC Control
Max Workpiece Swing Diameter:
280mm
Length of work admitted for hole grinding:
250mm
Length of work admitted for hole & radius grinding, measured from the headstock flange:
200mm
Grindable Hole Length:
160mm
Max. Grindable Hole Diameter:
200mm
Max Grindable Hole for Radius Grinding:
140mm (2x Radius of Curvature)
Max Grinding Radius:
50mm
Max Workpiece Weight:
60kg
Max Swiveling range of Workhead:
110*
Spindle Speed:
50-1000 RPM
Internal Spindle Taper:
5MK
Flange Diameter of Headstock Spindle:
140mm
Grinding Table:
Max Travel Speed:
15m/min
Oscillation Path:
370mm
Min/Max Distance Between Workpiece:
50mm x 630mm
Headstock Max Travel:
170mm
Traverse:
250mm(X-Axis) x 320mm (Z-Axis)
Grinding Spindle Speed:
1000-4500 RPM/Min
Spare Spindle for additional cost:
GMN TSI60C X 200-600l18R 35,000RPM Spindle

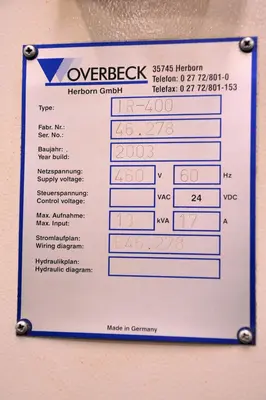

Voltage:
3ph / 460V / 60Hz
Machine Weight:
3000kg
Dimensions:
2100mm x1900mm x 2000mm
Available for Inspection by Appointment
Specifications Subject To Verification; Subject To Prior Sale & Price Change
