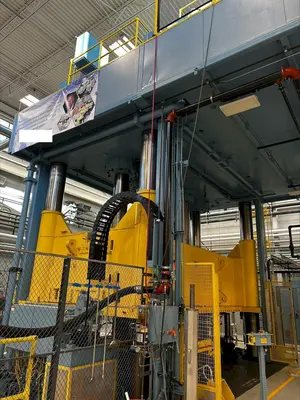

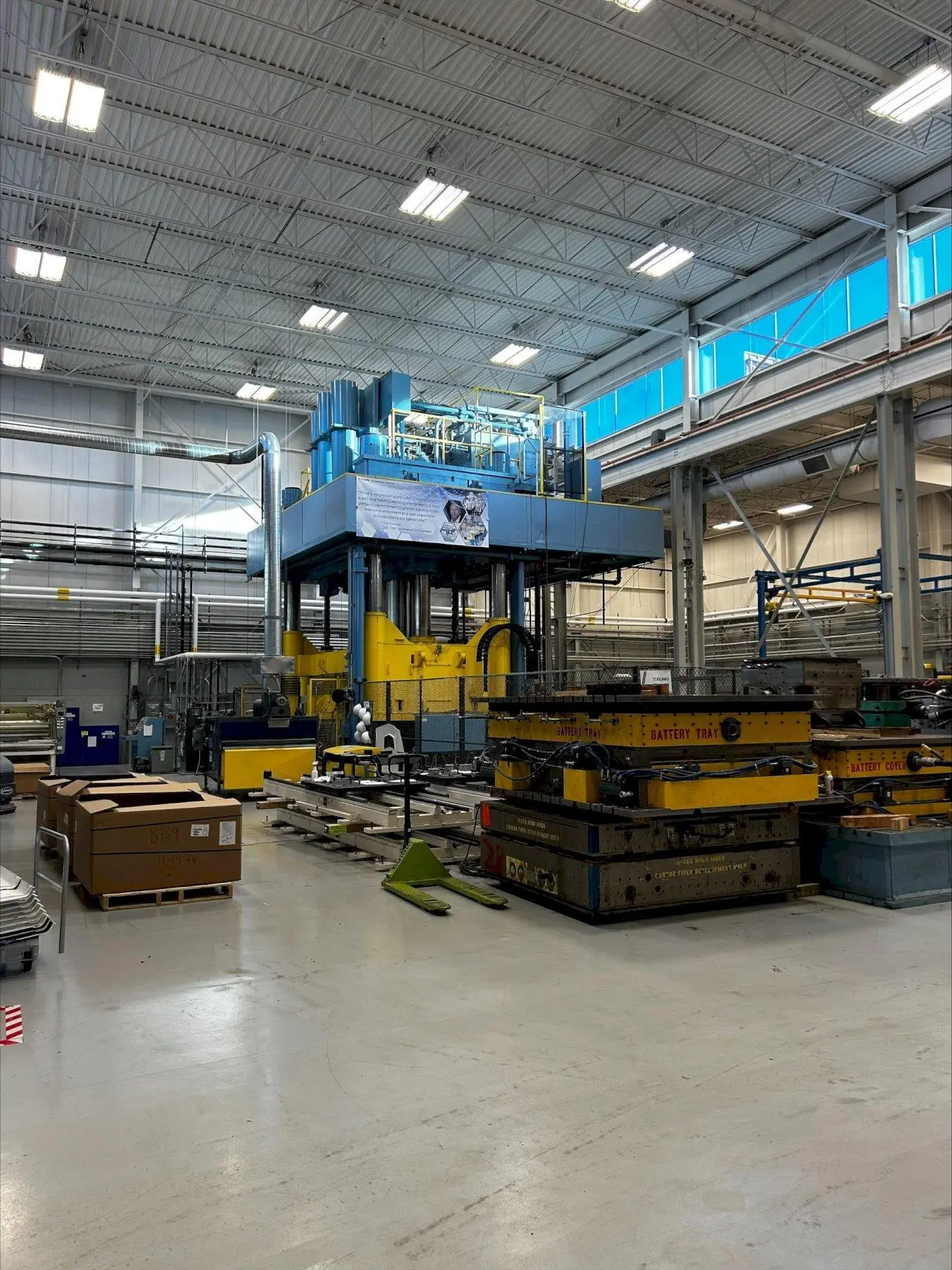

USED 1998 WILLIAMS & WHITE H-4000-180-96
Overview
Equipped With
Preliminary Specifications
Williams & White Model H-4000-180-96 Downacting
4000 tons capacity
60" Stroke
100" Daylight open
40" Shut Height
226"LR x 96" Lower Platen and Ram Area
182.75" LR x 50.75" Area Between posts
20" floor to top of bolster
1" T-slots @ 6" centers
Speeds:
-1000-1500 IPM Fast close
-25-250 IPM intermediate pressing (Up to 1000 Ton)
-30-200 IPM stripping
-900 IPM fast opening
-7-70 IPM pressing without Accumulator
-360 IPM max with press with Accumulator
Motor & Controls:
- Allen Bradley PLC 540 Controller
-Delta Motion Controller for Accumulator Drive system
-HST Data acquisition System-16 Analog and 16 digital channels
-Allen Bradley Model 1400E Panelview
(4) 250 H.P. Motors with Allen Bradley smart controllers on each
(4) oil gear PVV 540 Pumps
(4) PVWH pumps for cooling Filtration & tooling
Manifold consists of oil gear & vickers
Equipment and Features.
6" Thick T-slotted Bolster plate
1" T-Slots on @ 6" centers
Die Lifter system
Servo Filter system
Trabon Grease Lube System
Overall estimated dimensions:
276"LR x 156" FB x 482" above floor.
91" pit
Cat walk above press for easy access to Hydraulics
725,000 approximate weight overall
