USED 1988 CINCINNATI 135T
Overview

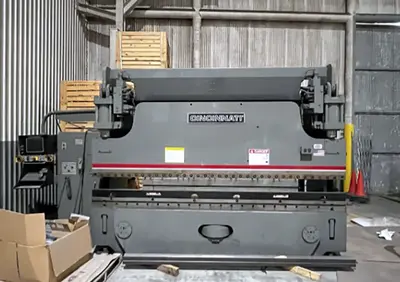

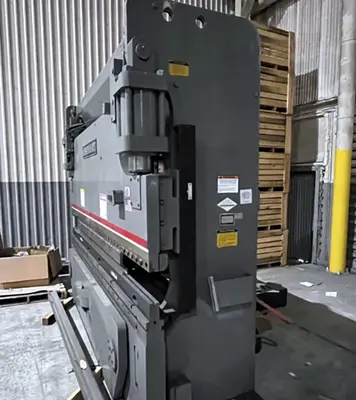

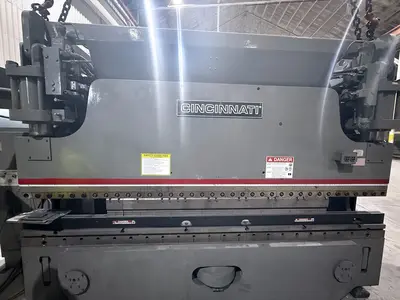

Used Cincinnati 135 Ton 12′ Hydraulic Press Brake with Cincinnati Autoform PC HMI Control — Powerful industrial CNC press brake for reliable metal forming with precision control and easy programming. Ideal for heavy-duty bending tasks in fabrication shops.
Specs
Capacity: 135 Tons
Overall Length of Bed & Ram: 12'
Distance Between Housings: 10' 6.5"
Stroke: 8"
Open Height: 15"
Closed Height: 7"
Throat Clearance: 12"
Speed Approach: 290 Inch/Minute
Form: 1 to 270 Inch/Minute
Return: 1 to 270 Inch/Minute
Width at Top of Bed: 4.5"
Main Motor: 25 HP 460/3/60
General Specifications:
Equipped With

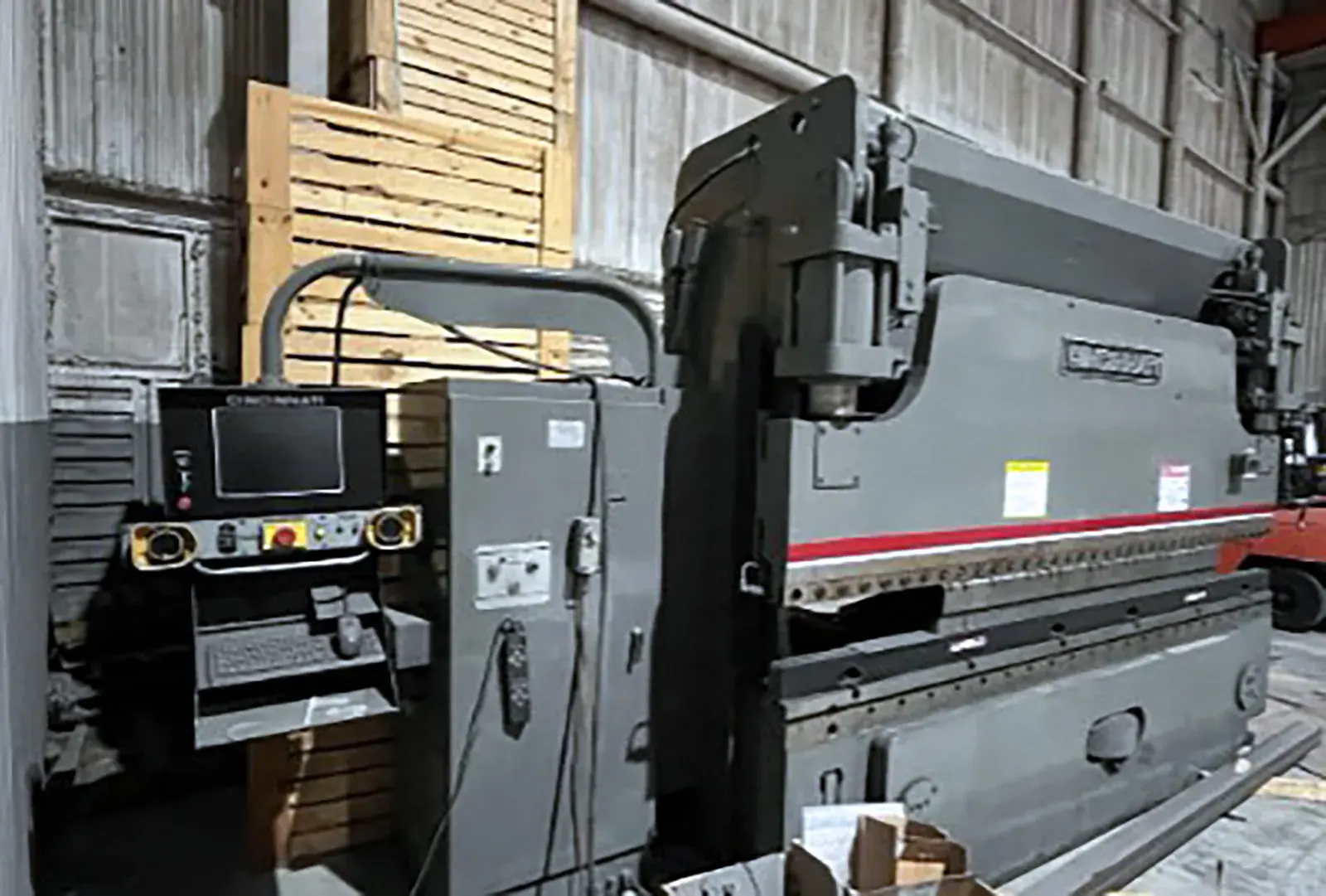

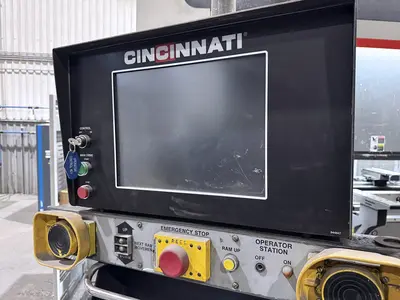

Cincinnati Autoform PC HMI Control (Replaced in 2024)

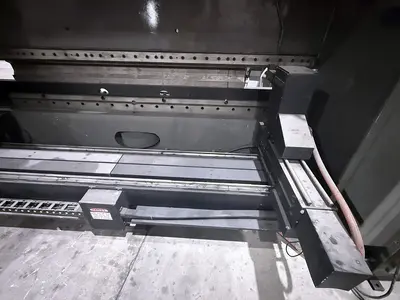

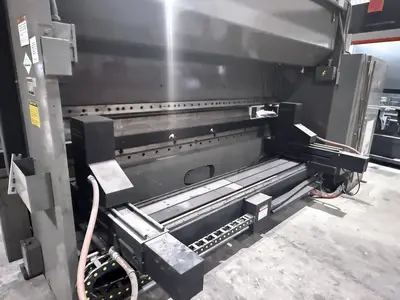

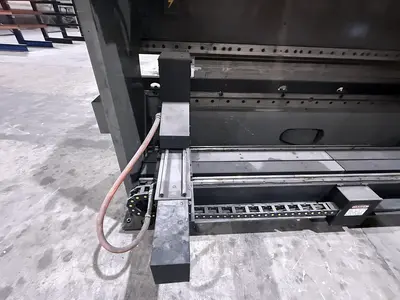

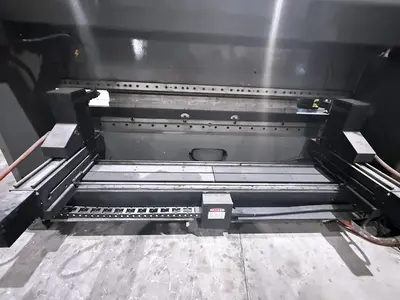

24" Six Axis Gauge (X1
X2
Z1
Z2
R1
R2)
AutoCrown Deflection Compensation
LaserSafe Safety Curtains
Precision RAM Leveling with Dual Linear Glass Scale Encoders
Off Load Center Compensation

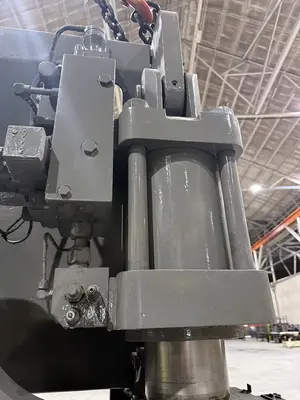

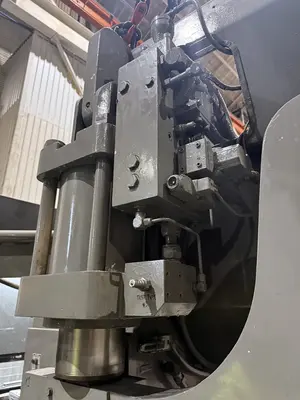

Variable Volume Load Sensing Pump and Servo Hydraulic System
3-Position Electric Foot Switch
Presense Sensing Interface
Control Mounted Palm Button Station
Manuals
Interlocked Construction

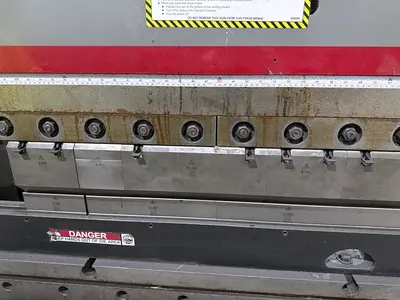

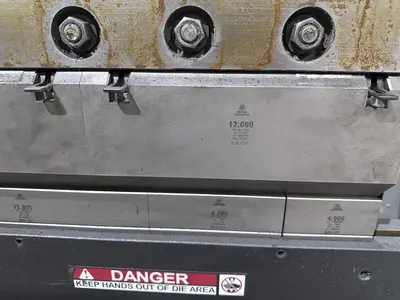

Some Tooling included
4-way die
