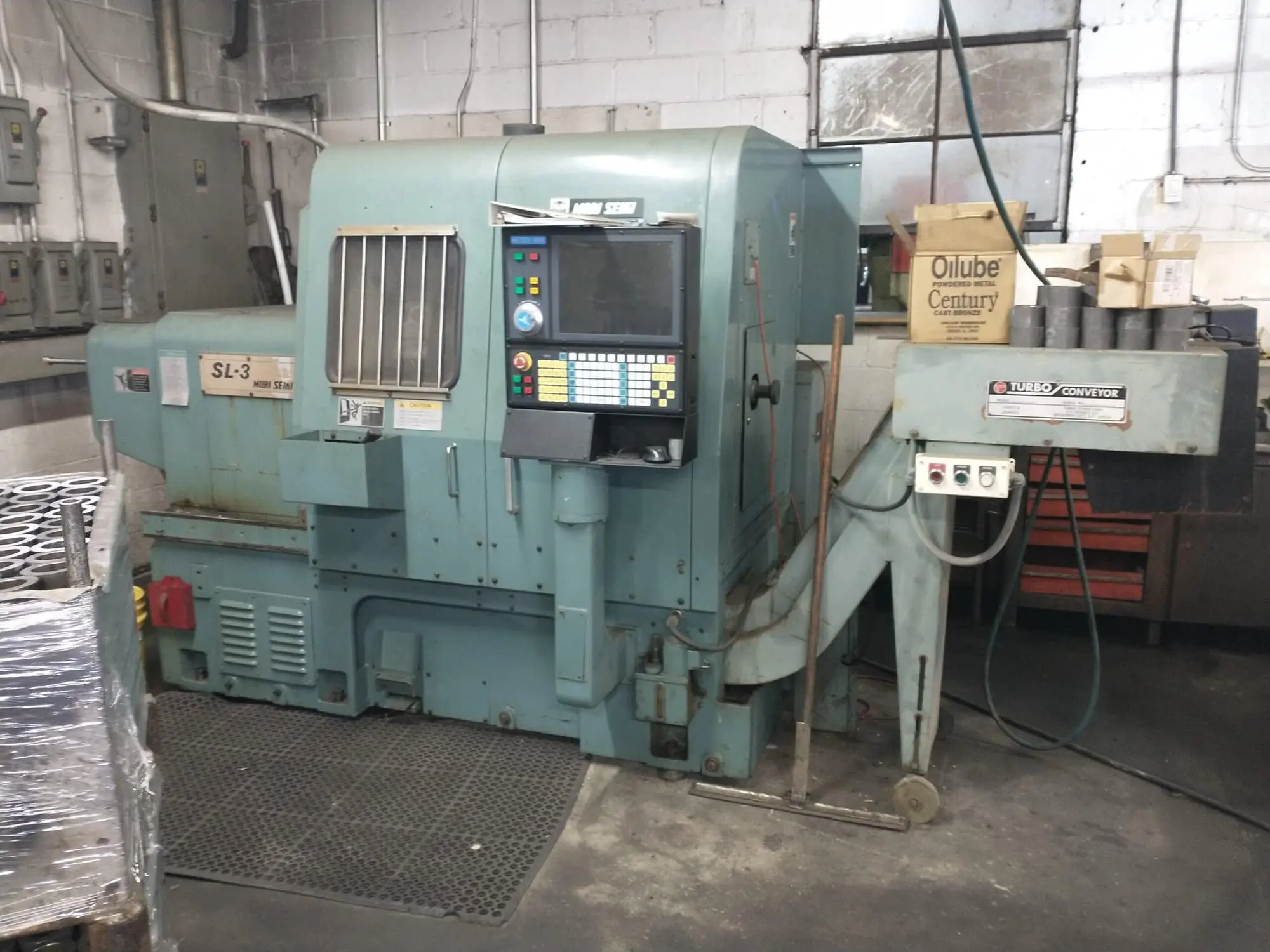

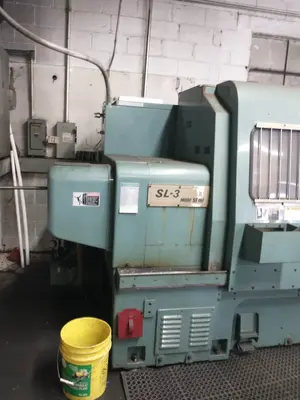

USED 1981 MORI SEIKI SL-3B

Year: 1981
Maximum swing: 22.4 inches
Standard workpiece diameter: 7.87 inches
Maximum cross travel (x axis): 6.30 inches
Max. longitudinal travel (z axis): 22.0 inches
Max. machining distance: 21.6 inches
Height from floor to spindle center line: 44.7 inches
Spindle nose: A2-6
Spindle speed (std. type): 25 TO 3,000 RPM
Hole thru spindle: 2.36 inches
Spindle bearing diameter: 4.33 inches
Spindle inside taper: MT7
Slant bed inclination: 45°
Cross Slide Inclination: 45°
Bed Width (overall): 21.5 Inches
Bed Width (carriage): 13.6 Inches
Bed Width (tailstock): 7.28 Inches
Ball Screw Diameter (x): 28 Pitch 6
Ball Screw Diameter (z): 40 Pitch 12
Turret Head (type B): 10
Turret Tool Positions: 10
Standard Cutting Tool: 25
Standard Chuck Size: 10 Inches
Coupling Size: 210
Curvic Coupling Tailstock Quill Diameter: 85
Built-In Tailstock Quill Stroke: 3.15 Inches
Tailstock Quill Taper: M.T.-3
Main Motor: 20 H.P. Ac-11 Kw
Electrics: 220 Volt, 3 Phase
Feed Motor (x): Cup Motor 400 W
Feed Motor (z): Cup Motor 1,500 W
Power Consumption: 33 Kva
Weight (approx.): 9259.415 Pounds
