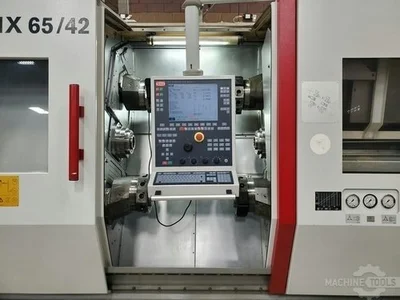

USED 2007 TRAUB TNX 65/42

Chuck Size: 6.8898″
Bar Capacity: 2.5″
Power: 32.2 hp
Max RPM: 5,000 RPM
Max Turning Length: 25.6″
Tailstock: No
Live Tooling: Yes
Sub Spindle: Yes

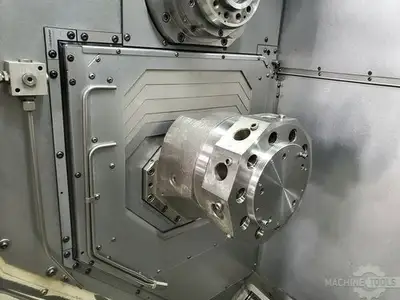

(4) X-Y-Z Turrets with 10 Positions Each
65 Mm Thru Hole Main and Sub Spindle
Weight-22000 Lbs.
Control-Tx 8i-S Control (mitsubishi)
Equipped With:
Sub Spindle Has Coolant Flush
Servo Driven Gantry Receiver
Hydraulic Swivel W/ Pneumatic Finished Part and Bar Remnant Gripper
Finished Part Conveyor Belt
Resy Paper Band Coolant Filter
Knoll Coolant Tank

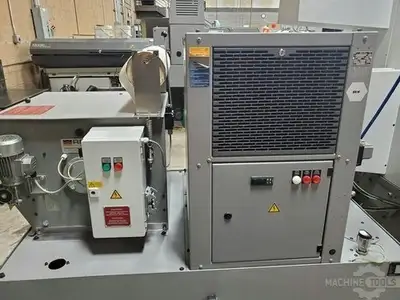

Bkw Refrigerated Coolant Temperature Control
20 Bar High Pressure and 8 Bar Low Pressure Coolant Pumps
Knoll Chip Conveyor
Fmb Turbo 5-55 Magazine Bar Feeder (new in 2010)
Hainbuch Main Spindle Collet Chuck
Rohm Sub Spindle 2 Jaw Chuck
All Machine Parts, Electrical, Service and Programming Manuals Along with Machine Parameter Backup on Usb Stick
Available Tooling
