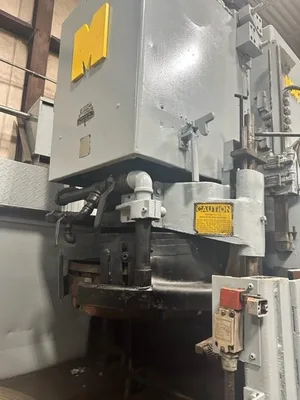

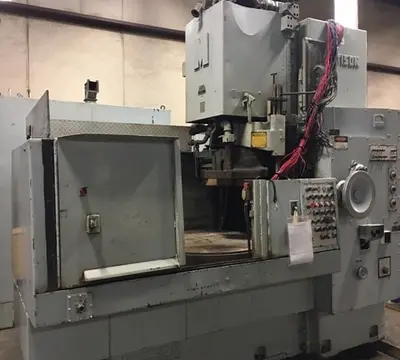

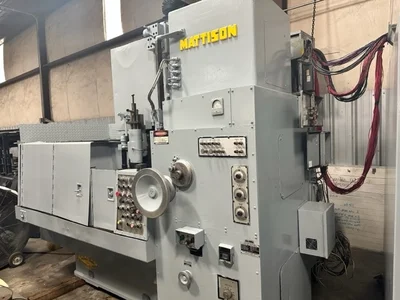

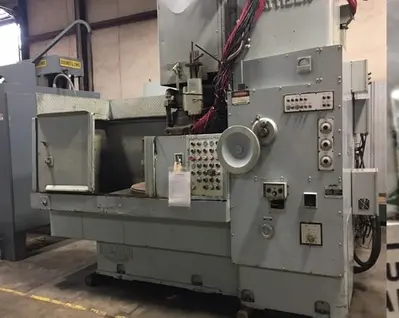

USED 1980 MATTISON 24

Catalog Specifications:
Magnetic Chuck Diameter 42″ over .5 thick magnet
Swing Inside Coolant Guards: 48″
Vertical Capacity: 24″
Chuck Rotation Variable Speed: 6-28 RPM
Grinding Wheel Size: 24″
Grinding Wheel Speed: 705 RPM
Feed Rate, Variable: .005-.165″ IPM
Spindle Motor: 75 HP 480/3/60
Approximate Machine Dimensions: 168″ x 110″x112″h
Approximate Machine Weight: 22,000 Lbs.
Equipped With:

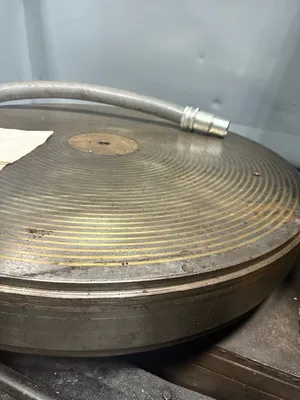

48″ Magnetic Chuck
24″ Segmented Grinding Wheel
Wheel Truing Tool
Coolant Filtration System
Additional Features:
Load Meter, Downfeed,
Coarse, Fine Feeds, Spark-out Timer,
Power Rapid Traverse,
Hand Wheel for manual Downfeed,
Central Lube System, Coolant System.
