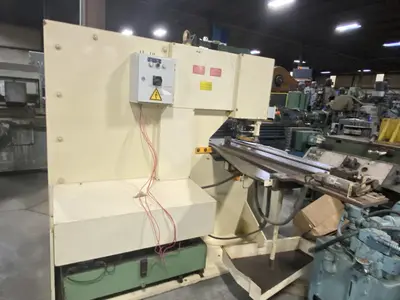

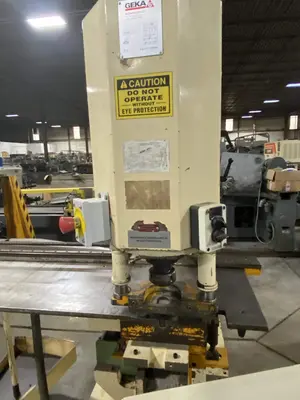

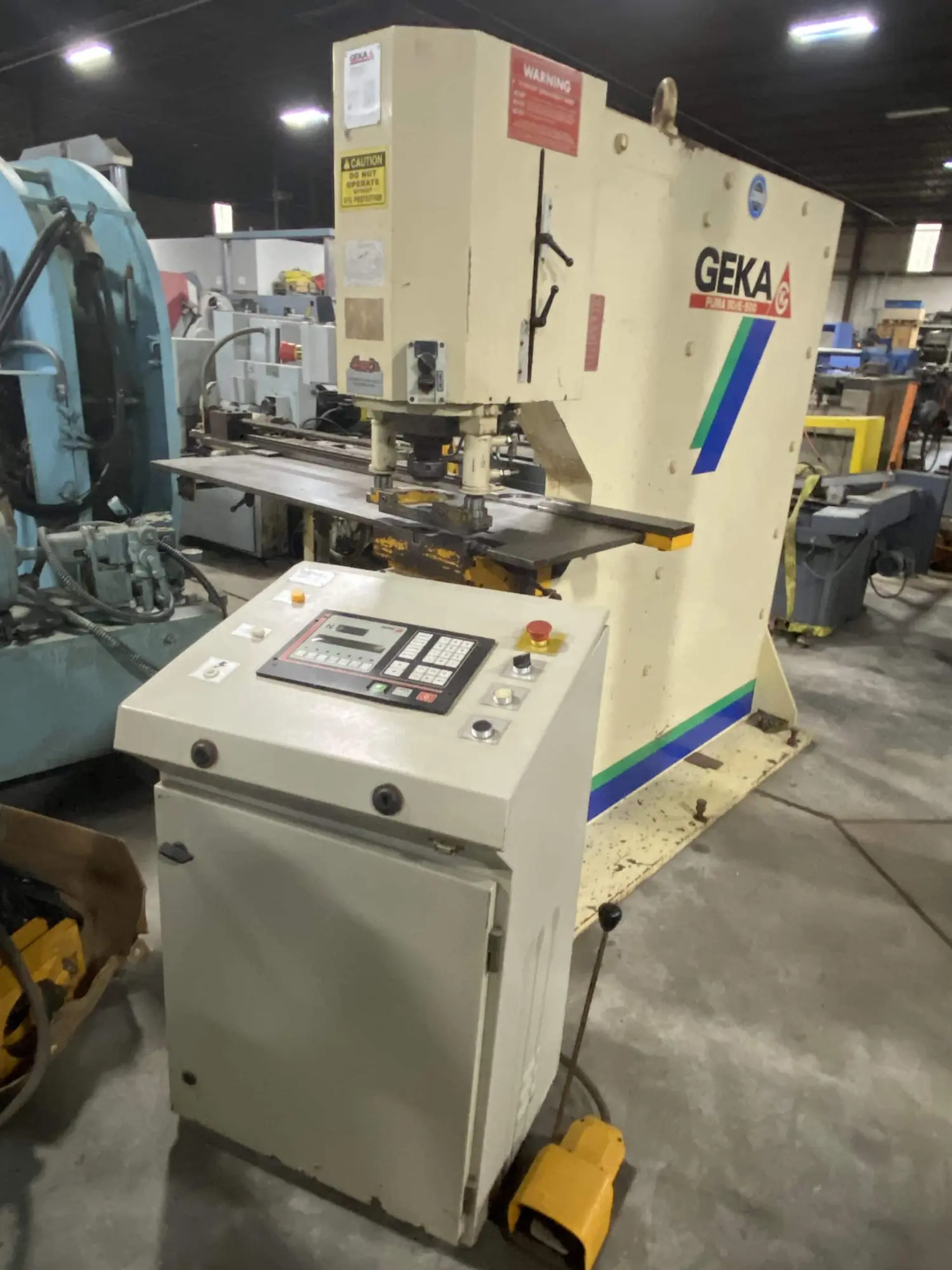

USED 1900 GEKA PUMA 110/E-500

Capacity: 120 Ton

Industrial PC
Industrial Keyboard w/rubberized Keys
Stylus
Emergency Stop Button Conveniently Located

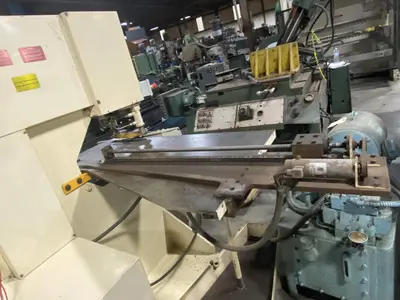

1 Each – Positioning Table w/Stops:
16”, 20”, or 26” Y Axis Travel, Depending on Throat Depth
Drive System: Servo Motors Driving Ball Screws
Specifications
Punching: 120
Punching Power: 1-1/2” x ¾”
Maximum Capacity: 19-5/8
Punching of Sections w/Gooseneck Die Holder
I on the leg: 4” – 17 ¾”
I on the web: 4” – 19 5/8”
U on the leg: 4-3/4” – 15 ¾”
U on the web: 4-3/4” – 15 ¾”
General Features
Motor Power: 20
Strokes per Minute (based on ¾” stroke): 28
Maximum Stroke: 3 – 5/32”
Working Height: 39”/42”
Gross Weight: 9,480
