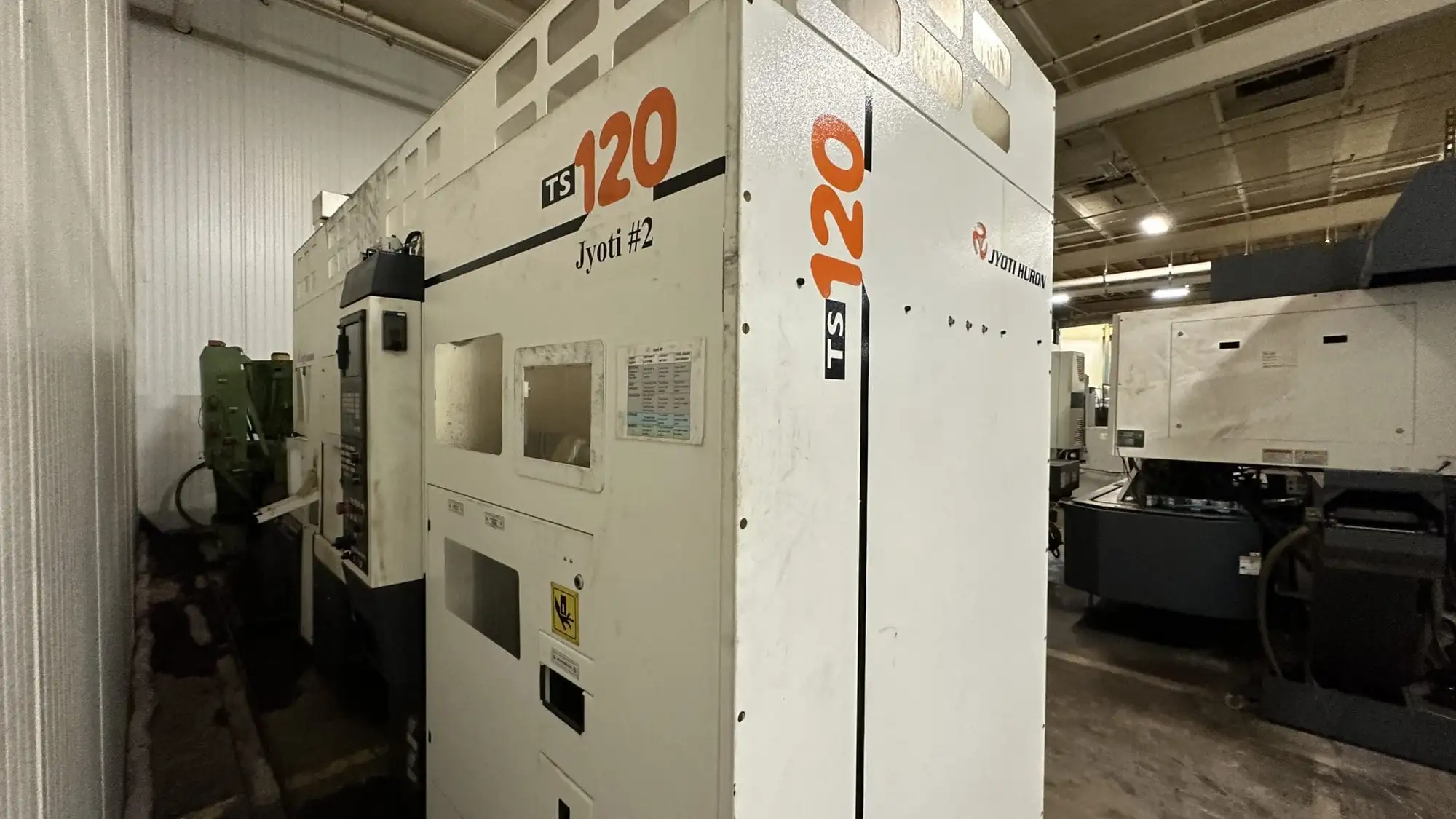

USED 2016 JYOTI TS 120

Slides
X-Axis Travel: 3”
Z-Axis Travel: 5.7”
Rapid Feed (X & Z axis): m/min 24
Main Spindle
No. of spindles 2
Spindle Motor Power – Siemens kw 8.3/5.5
Spindle Motor Power – Fanuc kw 7.5/5.5
Spindle Speed Range rpm 50-4500
Spindle Nose A2-5
Turret
Number of Turret 2[16(8+8)]
Indexing Time: sec 05
Capacity
Chuck Size: 6.5”
Work Piece Dimension (Loader Capacity): 4.7″ x 3.1”
Automated Gantry Robot Loader/Unloader
Max. Part Weight (No. of Parts) kg 3(2)
Loader X (Left/Right) Axis Stroke: 72.8”
Max. Speed (X-Axis) m/min 120
Loader Y (Up/Down) Axis Stroke 22”
Max. Speed (Y-Axis) m/min 90
Loader Z (Front/Rear) Axis Stroke: 6”
Max. Speed (Z-Axis) m/min 50
Standard Loading Time sec. 7
Accuracy (As per VDI/DGQ 3441)
Positioning Uncertainty (P) mm 0.007
Repeatability (Ps medium) mm 0.005
Other Data
Machine Weight # (Approx.): 10,000
Machine Dimension # (Approx.)
Length 85”
Width: 75”
Height: 95”
