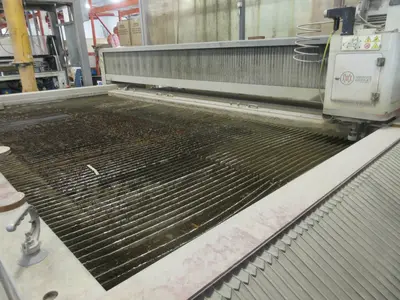

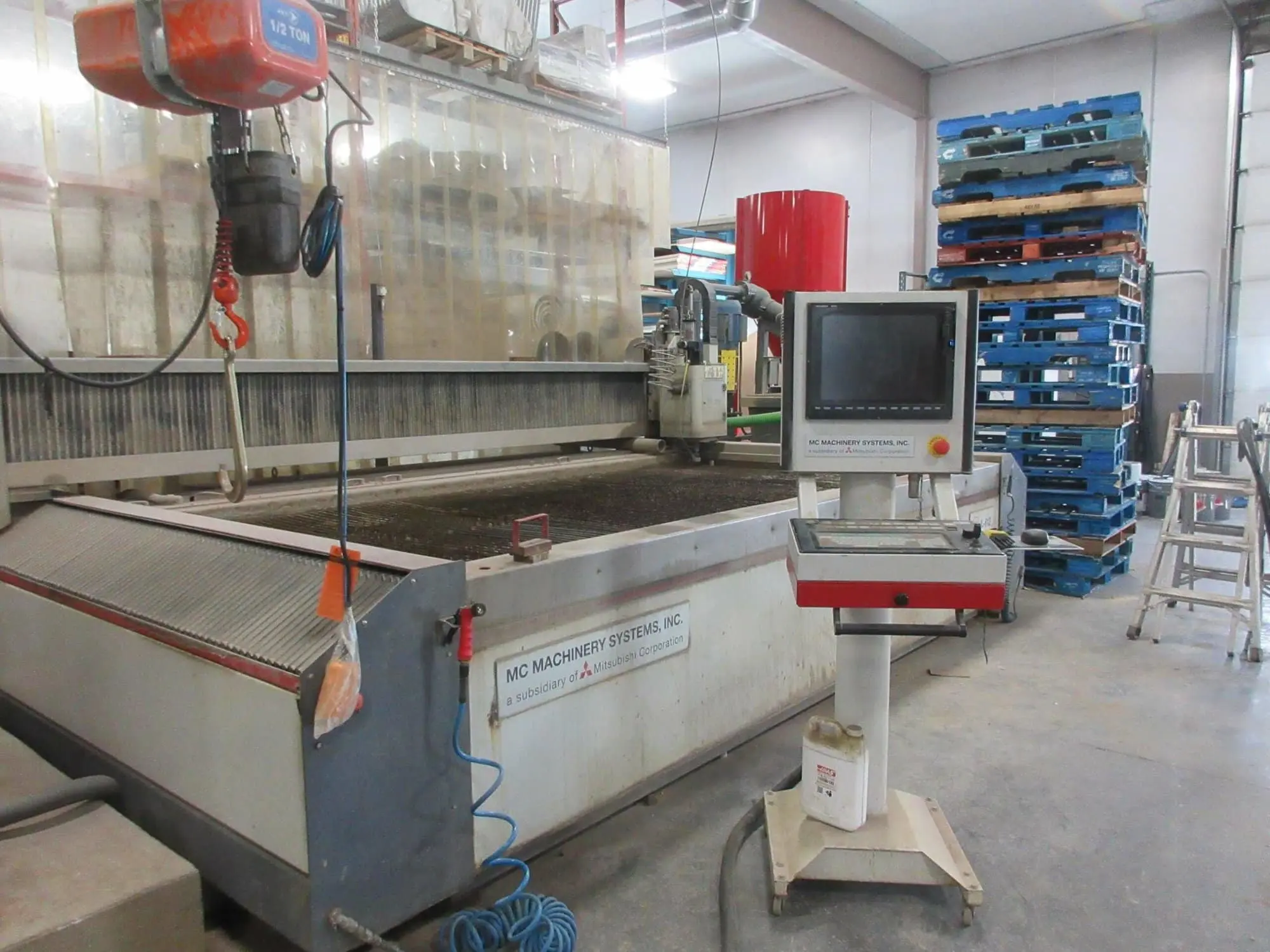

USED 2012 MITSUBISHI MWX4-612

Capacity: 6‘ x 12‘

Max X-Axis Travel: 144”
Max Y-Axis Travel: 72”
Z-Axis: 10”
PSI: 90,000
HP: 60

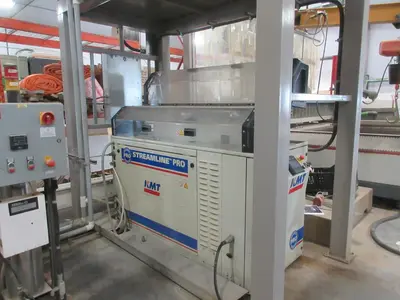

Pump: KMT Streamline Pro 60
Max Workpiece Dimensions: 82” W X 153” L X 10” H
Work Tank Access Open On 3 Sides
Max Workpiece Weight: 250 Lbs/Ft²
Working Table Height From Floor: 32”
Machine Weight Without Tank: 12,000 Lbs
Tank Weight: 4,700 Lbs
Tank Volume: 1,650 Gal
Rapid Travels Speed: 500”/Min
Machine Unit Dimensions: 200” W X 150” L X 88” H
Equipped With:
Closed Loop Water Recycling & Filtration System + Chiller:
Close The Drain Operation
Reduce Water Consumption
Maximizes Pump Performance
Maximizes Orifice/Focus Tube Life
Stand Alone Chiller:
Refrigeration Type Liquid Chiller
60-Gallon Reservoir
Water/Glycol (70% / 30% Mixture)
Footprint: 75” L X 70” H X 37” W
Abrasive Removal System
Abrasive Removal System With Submerged Cutting
Remote Hand Pendant
Automatic Touch Probe
Laser Pointer
Upgraded Kmt Intensifier (Pro 60) 90,000 Psi
Mitsubishi CNC Control
